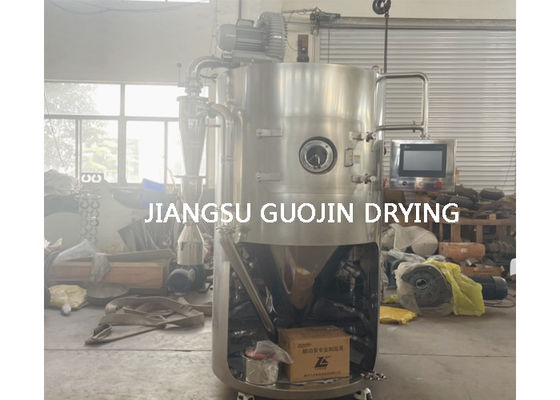

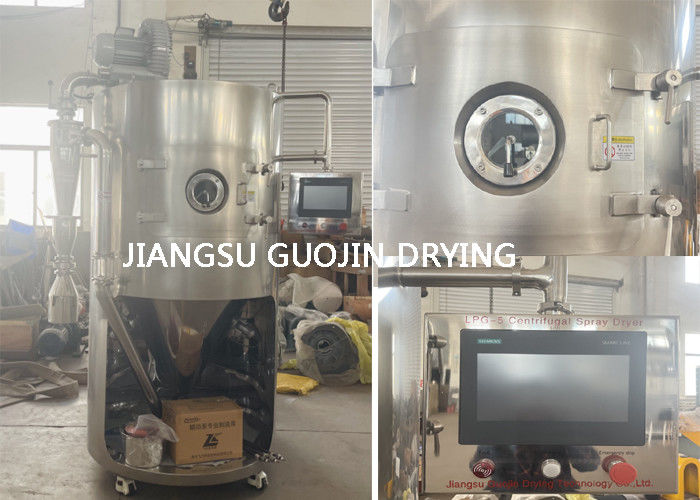

LPG-5 Laboratory Spray Dryer With 25000rpm Rotary Speed Electric Heating
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO9001 |
| Model Number: | LPG-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | pending |
| Packaging Details: | wooden |
| Delivery Time: | 30days |
| Payment Terms: | TT,LC |
|
Detail Information |
|||
| Rotary Speed: | 25000rpm | Product Name: | LPG-5 Laboratory Spray Dryer |
|---|---|---|---|
| Material: | Stainless Steel 304 | Inlet Temperature: | 140-350℃ |
| Centrifugal Spray Head Drive: | Compressed Air Drive | Dry Powder Recovery: | >95% |
| Control System: | PLC Or Button | Outlet Temperature: | 80-90℃ |
| Highlight: | 25000rpm Laboratory Spray Dryer,PLC Laboratory Spray Dryer,SS304 Lab Scale Spray Dryer |
||
Product Description
Product Description:
This industrial spray dryer is designed for laboratory use, and it is suitable for drying powder or granules. It is specifically designed for laboratory-scale production with its spray disc diameter being 50mm and its heating method being electric heating. It is equipped with a PLC or button control system, and it has an adjustable outlet temperature range from 80-90℃.
The LPG-5 Laboratory Spray Dryer is designed for a variety of drying applications in the industrial and laboratory environment. It is reliable, efficient and cost-effective for drying granules and powders. It features an adjustable working temperature range, PLC or button control system, and excellent spray drying performance. It is an ideal choice for laboratories and industrial settings.
This laboratory spray dryer is perfect for drying a wide variety of products, from pharmaceuticals and food products to chemical products and more. With its adjustable outlet temperature range and PLC or button control system, it can be easily adjusted and operated to meet the needs of different laboratory and industrial applications.
If you are looking for an industry spray dryer with a spray disc diameter of 50mm, electric heating, adjustable outlet temperature range of 80-90℃ and PLC or button control system, then the LPG-5 Laboratory Spray Dryer is the perfect choice for you. It is reliable, efficient and cost-effective for drying granules and powders.
Features:
- Product Name: Laboratory Spray Dryer
- Water evaporation: 5kg/h
- Heating Method: Electric Heating
- Spray disc diameter: 50mm
- Control System: PLC Or Button
- Power: 9KW
- Model: LPG-5 spray drier, Lab mini spray dryer
Technical Parameters:
| Product Name | LPG-5 Laboratory Spray Dryer |
|---|---|
| Control System | PLC Or Button |
| Spray disc diameter | 50mm |
| Water evaporation | 5kg/h |
| Power | 9KW |
| Material | Stainless Steel 304 |
| Inlet Temperature | 140-350℃ |
| Rotary speed | 25000rpm |
| Dry powder recovery | >95% |
| Outlet Temperature | 80-90℃ |
Applications:
Guojin LPG-5 Laboratory Spray Dryer is a mini spray dryer with superior quality and performance. It is designed with stainless steel 304 material, certified by ISO9001 and equipped with centrifugal spray head drive compressed air drive system. This mini spray dryer is ideal for chemical and small scale production, with inlet temperature range from 140-350℃ and outlet temperature range from 80-90℃. With minimum order quantity of 1, this spray dryer is available at a competitive price. Packaged in a wooden box, it can be delivered within 30days with payment terms of TT or LC.
Customization:
- Brand Name: Guojin
- Model Number: LPG-5
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 1
- Price: pending
- Packaging Details: wooden
- Delivery Time: 30days
- Payment Terms: TT,LC
- Inlet Temperature: 140-350℃
- Outlet Temperature: 80-90℃
- Material: Stainless Steel 304
- Rotary speed: 25000rpm
- Control System: PLC Or Button
Guojin's Laboratory Spray Dryer is perfect for foodstuff spray dryer, chemical spray dryer, industry spray dryer, and laboratory spray dryer. It is ISO9001 certified and made with high quality stainless steel 304. Its inlet temperature range between 140-350℃ and outlet temperature range between 80-90℃. The rotary speed is 25000rpm and the control system is PLC or Button. The minimum order quantity is 1 and the delivery time is 30 days. Packaging details are wooden. Payment terms are TT or LC.
Support and Services:
Laboratory Spray Dryer Technical Support and Service
We offer a comprehensive technical support and service package for our Laboratory Spray Dryer. Our team of experienced experts provide guidance and advice on selection, installation, operation and maintenance. We provide a range of services, including:
- Installation and commissioning
- Ongoing technical support
- Regular maintenance and servicing
- Training and education
- Spare parts and consumables
We are committed to providing helpful and reliable solutions to ensure the longevity and efficiency of your Laboratory Spray Dryer. For more information about our technical support and service package, please contact us.
Packing and Shipping:
The Laboratory Spray Dryer is packaged and shipped in a sturdy, durable cardboard box. The box should be large enough to fit the dryer and its components. The box should also include adequate cushioning material to protect the dryer during shipping. The box should be sealed with adhesive tape and/or plastic straps to ensure the dryer is securely packaged.
Any fragile components should be individually wrapped and packed in the box. The box should be clearly labeled with the product name, the customer's name, and the address of the destination. A packing list should be included in the box, detailing the contents of the package. The box should be inspected for any signs of damage before it is shipped.
