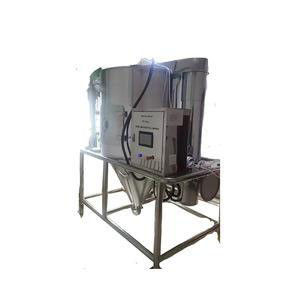

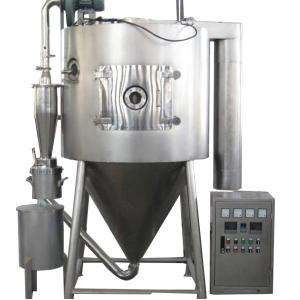

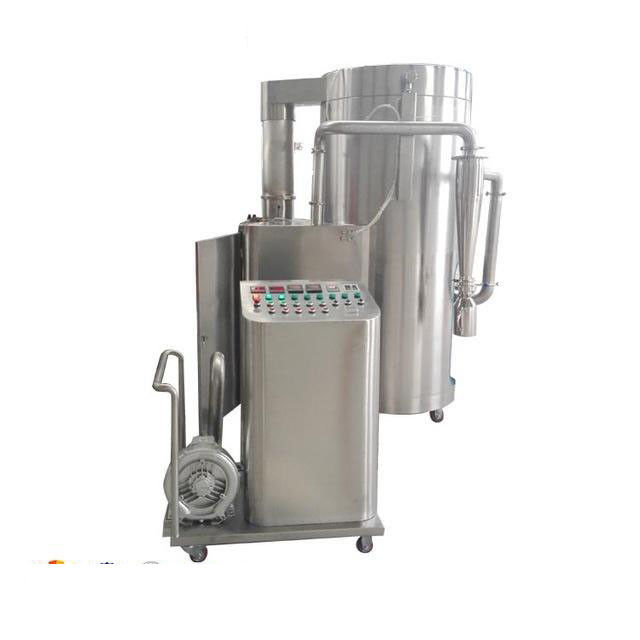

Stainless Steel Automatic Laboratory Scale Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Spray Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Voltage: | 220 /380v |
| Power(W): | 9 -99 Kw | Dimension(L*W*H): | 1800* 950*2200 Mm |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts |
| Material Stainless Steel: | Outlet Temperature: 80-90 Degree | Weight: | 500-1500 Kg |
| Port: | Shanghai | ||
| Highlight: | Automatic Laboratory Scale Spray Dryer,Stainless Steel Laboratory Scale Spray Dryer,25000rpm Laboratory Scale Spray Dryer |
||
Product Description
Machine Introduction
spray dryer priceis a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on .Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dariry products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.
Working Priciple
Liquid material is pumped into the top installed rotary disc atomizer by mono pumpe and atomized into fine droplets inside the drying chamber. Heated and filtered hot air will be blown into the air distributor at the same time. The evenly and swirlly distributed hot air completely contact with the droplets for heat transfer. In several seconds, the droplets will be dried into powder and sucked out into the cyclone for discharging via exhaust fan.
Features
1. Dry faster, the general time is only 5-15 seconds, with instantaneous drying characteristics.
2. Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials, materials to maintain color, smell and taste.
3. Simplify the production process.The operational control is simple,which is suitable for control of production, wet 40-90% of the volume of liquid into a dry powder, reduce the crushing, screening processes.
Technical and Patameters
|
Project/Patameter |
Model:GY |
|||||
|
5 |
25 |
50 |
100 |
150 |
200-2000 |
|
|
Inlet temperature (℃) |
140~350 (adjustable) |
|||||
|
Outlet temperature(℃) |
80-90 |
|||||
|
Maximum water Evaporattion (kg/h) |
5 |
25 |
50 |
100 |
150 |
200-2000 |
|
Centrifugal spray head rotation form |
Compressed air transmission |
Mechanical transmission |
||||
|
Rotary speed(r.p.m) |
25000 |
18000 |
18000 |
18000 |
15000 |
8000-15000 |
|
Spray device diameter(mm) |
50 |
100 |
120 |
140 |
150 |
180-340 |
|
Heating |
Electric |
Electric+ Steam |
Electric+Steam/Feul oil/gas |
By the user themsleves |
||
|
Max powerKW |
9 |
36 |
63 |
81 |
99 |
|
|
Dmension(m) |
1.8×0.93×2.2 |
3×2.7×4.26 |
3.7×3.2×5.1 |
4.6×4.2×6 |
5.5×4.5×7 |
Determined by the specific circumstances |
|
Dry powder recovery(%) |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
|
Noted:Some parameters design adjusted depending on the different material,prevail by the design. |
||||||
