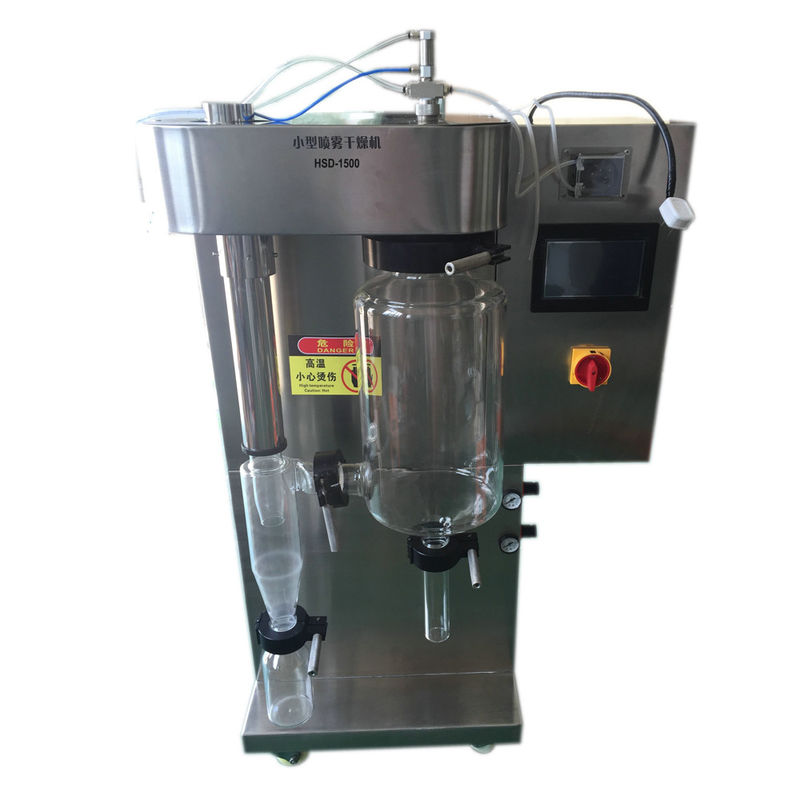

Coffee Powder Small Scale Atomizer Laboratory Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Spray Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Voltage: | 220/110V |
| Power(W): | 9-28kW | Dimension(L*W*H): | 2800*2600*1600 |
| Key Selling Points: | High Safety Level | Warranty: | More Than 5 Years |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops |
| Certificate: | ISO9001 CE | Air Inlet Temperature Control: | 30 ℃ ~300℃ |
| Air Outlet Temperature Control: | 30 ℃ ~140℃ | Evaporation Of Water: | 3.200mL/H ~ 1500ml/h |
| Maximum Feed Rate: | 1500ml/h (adjustable) | Verage Drying Time: | 1.0~1.5S |
| Power: | 0.2kw | Feed Rate: | 30-1500ml/h |
| Feeding Way: | Peristaltic Pump Regulation | Nozzle Diameter: | 0.5 Mm / 0.7 Mm / 0.75 Mm / 1.0 Mm / 1.5 Mm / 2.0 Mm |
| Weight: | 10KG | Port: | Shanghai, Qingdao, Tianjin, Ningbo And Other Main Chinese Port |
| Highlight: | Atomizer Laboratory Spray Dryer,Small Scale Laboratory Spray Dryer,2000ml/h Laboratory Scale Spray Dryer |
||
Product Description
Coffee Powder Small Scale Atomizer Laboratory Spray Dryer
Product Description
It is applicable to the production of micro particles powder in the laboratories of universities, research institutes and food, medicine and chemical industry enterprises.Because the ejecting material is only exposed to high temperature and instant heat when it is sprayed into mist, these active materials still maintain their active components unchanged after drying. Specifically used in the following fields: beverage flavor and pigment milk and egg products plant and vegetable extracts pharmaceutical synthesis thermosensitive substances plastic polymers and resin aromatics blood products and superconductor biochemical products dye soap and detergent food adhesives oxide bone powder and tooth powder and so on.
Main features:
1. Original imported sprinkler head, high efficiency.
2. Large color touch screen operation, fully automatic control and manual control, Chinese and English panels, parameter LCD display.
3. Real-time PID thermostat control technology, accurate temperature control, heating temperature control precision ±1℃.
4. The spray, drying and collection device is made of transparent high quality high temperature resistant high borosilicate glass. The whole spray drying experiment process can be seen.
5. Atomization structure of fluid spray, made of high-precision 316 stainless steel material, normal distribution of powder diameter, good fluidity.
6. The jet machine will automatically dredge (pass needle) with adjustable frequency. When the nozzle is blocked, it will automatically clear to ensure the continuity of the experiment.
7. Feeding amount can be adjusted by feeding peristaltic pump.
8. Special protection function, fan does not start, heater cannot start. 9. Built-in imported oil free air compressor, noise less than 50db.
10. Equipped with air inlet filter to ensure sample purity.
11. After drying, the product are even granulation, and 95% of the dry powder in the same granulation.
Size Information
| Model Type | HSD-1500 | HSD-1800 | HSD-2000 | HSD-2000-S | HSD-3000-S | HSD-2000D |
| Air inlet temperature control | 30 ℃ ～300℃ | |||||
| Air outlet temperature control | 30 ℃ ～140℃ | 30 ℃ ～150℃ | 30 ℃ ～140℃ | 30 ℃ ～150℃ | ||
| The evaporation of water | 1500ml/h | 1800ml/h | 200mL/H ～ 1500ml/h | 200mL/H ～ 1500ml/h | 1500mL/H ～ 3000ml/h | |
| Maximum feed | 1500ml/h | 1800ml/h | 2000ml/h | 2000ml/h | 3000ml/h | 2000ml/h |
| Minimum feed rate | 50ml/h | |||||
| Feeding way | Peristaltic pump regulation | |||||
| average drying time | 1.0～1.5S | |||||
| Power | 3.5kw /220V | 3.8kw /220V | 3.5kw /AC220V | 3.0kw /AC220V | 4.5kw /220V | 3.0kw /AC220V |
| Compressor power | 0.2kw | - | 0.2kw | 0.2kw | - | 0.2kw |
| Compressor working pressure | 2-5bar | - | 2-3bar | 2-3bar | - | 2-3bar |
| Overall dimension |
1300mm×650mm ×800mm |
800mm×650mm ×1300mm |
1300mm×650mm ×800mm |
1450mm×800mm ×780mm |
1300mm×650mm ×850mm |
|
Applification
Chemical industry: sodium fluoride (potassium), basic dye pigment, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black, etc. Plastic resin: AB, ABS emulsion, urea formaldehyde resin, phenolic resin, rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride and so on. Food industry: fat rich milk powder, tickling protein, cocoa milk powder, milk replacer, blood hunting powder, egg white (yellow), etc. Food and plants: oats, chicken juice, coffee, instant tea, flavored meat, protein, soybean, peanut protein, hydrolysate, etc. Sugar: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc. Ceramics: alumina, ceramic tile materials, magnesia, talcum powder, etc.
