Stainless Steel Egg Powder Lab Spray Dryer Mini Bench Type 2L For Food Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | Lab Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Stainless Steel 2L Egg Powder Mini Bench Type Lab Spray Dryer | Model Type: | Lab Type |
|---|---|---|---|
| Application: | Chemicals Industry, Plastics Industry, Food Industry,Pharmaceutical Industry | Voltage: | 380V & 240V & 415V |
| Power: | 3KW | Warranty: | 12 Months |
| Material: | Stainless Steel | Heater: | Electricity |
| Water Evaporation: | ~2500ml / H | ||
| Highlight: | 2L Egg Powder Lab Spray Dryer,380V Bench Lab Spray Dryer,Food Industry SS304 Spray Dryer |
||
Product Description
Stainless Steel 2L Egg Powder Mini Bench Type Lab Spray Dryer
Mini Bench Type Lab Spray Dryer is widely used in food, pharmaceutical and chemical industry, such as egg powder, milk powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, coffee, creamer, coconut, milk, gelatin, gum and acacia, etc.
Working Principle:
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Flowchart of Centrifugal Spray Dryer.

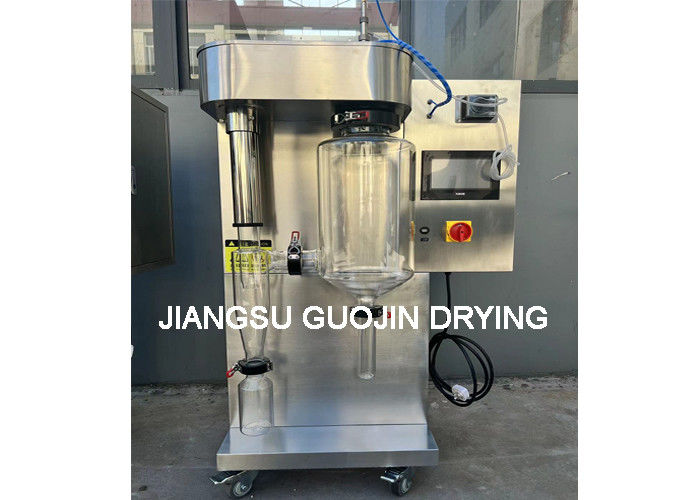

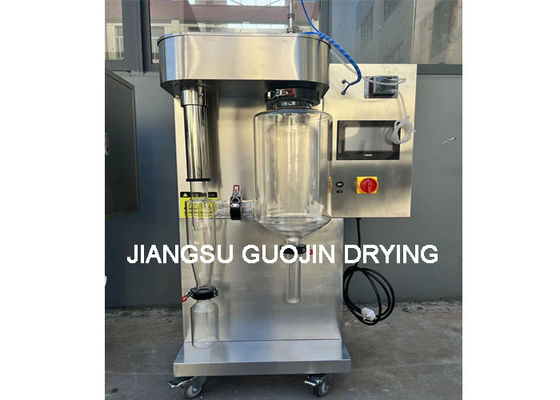

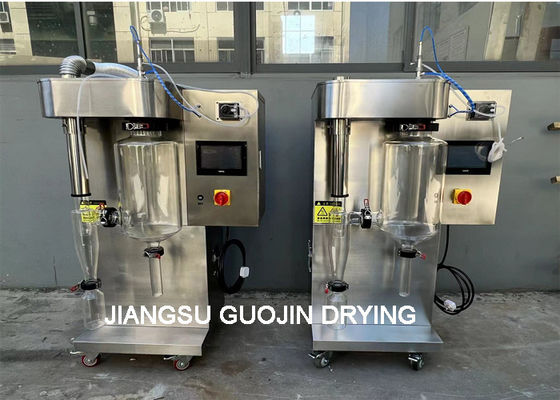

Mini Bench Type Lab Spray Dryer Pictures
