Mini Bench Type SS304 Lab Spray Dryer 2L For Egg Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | Lab Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Stainless Steel 304 Mini Bench Type Lab 2L Spray Dryer For Egg Powder | Model Type: | Bench Lab Type |
|---|---|---|---|
| Application: | Chemicals Industry, Plastics Industry, Food Industry,Pharmaceutical Industry | Voltage: | 380V & 240V & 415V & 220V |
| Power: | 3 KW | Warranty: | 12Months |
| Material: | Stainless Steel 304 | Heater: | Electricity |
| Water Evaporation: | ~2500ml/h | ||
| Highlight: | SS304 Lab Spray Dryer 2L,Mini Bench Type Lab Spray Dryer,Laboratory Spray Dryer 220V |
||
Product Description
Stainless Steel 304 Mini Bench Type Lab 2L Spray Dryer For Egg Powder
Mini Laboratory Spray Dryer, Small Spray Dryer, is a compact design of the unit allows it to be placed in a laboratory or in a specially designed stainless steel rack, all in one, with no additional equipment required. One-touch boot, color LCD touch screen operation, can be completely automatic or manual monitoring of two modes of operation, convenient operation and monitoring of the experimental process. Is currently the smallest, the smallest noise, the drying effect is very good a spray dryer.
Working Principle:
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
Flowchart of Centrifugal Spray Dryer.

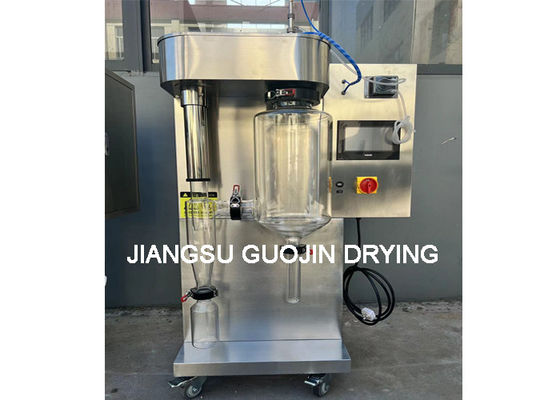

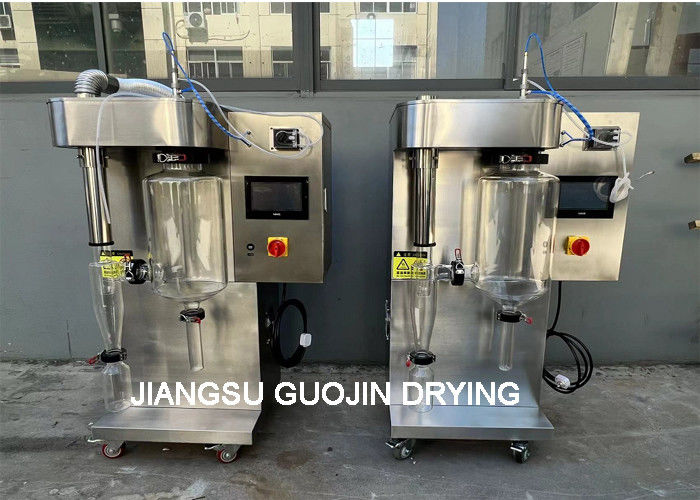

Mini Bench Type Lab Spray Dryer Pictures
