Beverages / Pharmaceuticals 10000ml/H Laboratory Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Spray Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Voltage: | 220v |
| Power(W): | 4500w | Dimension(L*W*H): | 800*6001300mm |
| Key Selling Points: | Automatic | Warranty: | One Year |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support |
| Max Capacity: | 1500-2000ml/h | Temperature Range Of Inlet Air: | 40°C -300°C |
| Temperature Range Of Outlet Air: | 40°C -140°C | Precision Of Temperature: | ± 1 °C |
| Dryer Time: | 1.0-1.5 S | Speed Of Squirt Pump: | 50-2000ml/h |
| Spray System: | Two Liquid Nozzle (0.5/0.7/0.75/1.0/1.5/2.0/2.5mm) | Spray Direction: | Downwards Co-current |
| Heater Power: | 3KW 220V | Weight: | 180kg |
| Highlight: | 10000ml/h Laboratory Spray Dryer,Beverages Laboratory Spray Dryer,Pharmaceuticals Laboratory Scale Spray Dryer |
||
Product Description

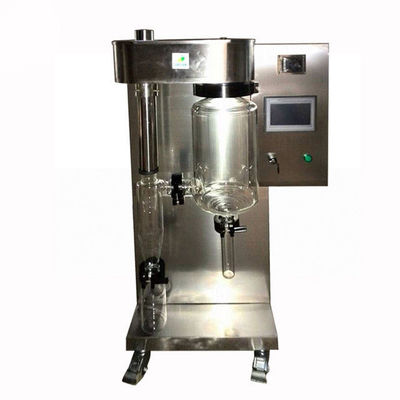

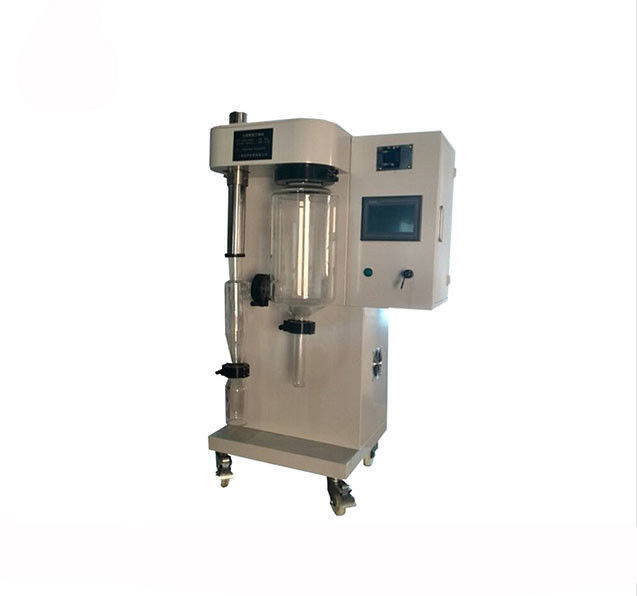

Laboratory table top spray dryer is the latest type which adopts advanced international technology and spare parts. Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.
| Item | Unit | TP-S15 | TP-S30 | TP-S50 | TP-S100 |
| Max capacity | ml/h | 1500-2000 | 3000 | 5000 | 10000 |
| Temperature range of inlet air | ℃ | 40℃ ~ 300℃ | 30°C ~ 300°C Adjustable | 140°C ~ 300°C | 50℃ ~ 300℃ |
| Adjustable | |||||
| Temperature range of outlet air | ℃ | 80℃ ~ 90℃ | 30°C ~ 140°C | 80°C ~ 90°C | 80℃ ~ 90℃ |
| Spray system | / | Two-fluid nozzle | Centrifugal nozzle | Centrifugal nozzle | Centrifugal nozzle |
| Precision of temp | ℃ | ±1 | |||
| Dryer time | S | 1.0 ~ 1.5 | |||
| Speed of squirt pump | ml/h | 50-2000 | 3000 | 5000 | 10000 |
| Spray direction | / | Downwards co-current | |||
| Heater Power | / | 3.5KW | 4.5KW | 6.8KW | 2.8KW |
| Total power | / | 4.5KW 220V | 5.5KW 220V | 9KW,380V | 3.2KW 380V |
| Heat source | / | Electric | |||
| Air compressor | / | Built-in oil-free air compressor | |||
| Dried powder restoring rate | % | ≥95 | ≥98 | ||
| Dimension | mm | 940*850*1500 | 880*980*1550 | 1800*930*2200 | 2500*1600*2800 |
| Maximum moisture evaporation | 2 | 3 | 5 | 10 | |
| Kg/h | |||||
Application
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Advantage
1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Pre-Sales Service
1.Inquiry and consulting support
2.Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service
1.One year warranty for the products described here.
2.Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service:If you encounter problems when using our products,please contact us by telephone or e-mail,we will be ready to provide consulting,maintenance and other services immediately.
