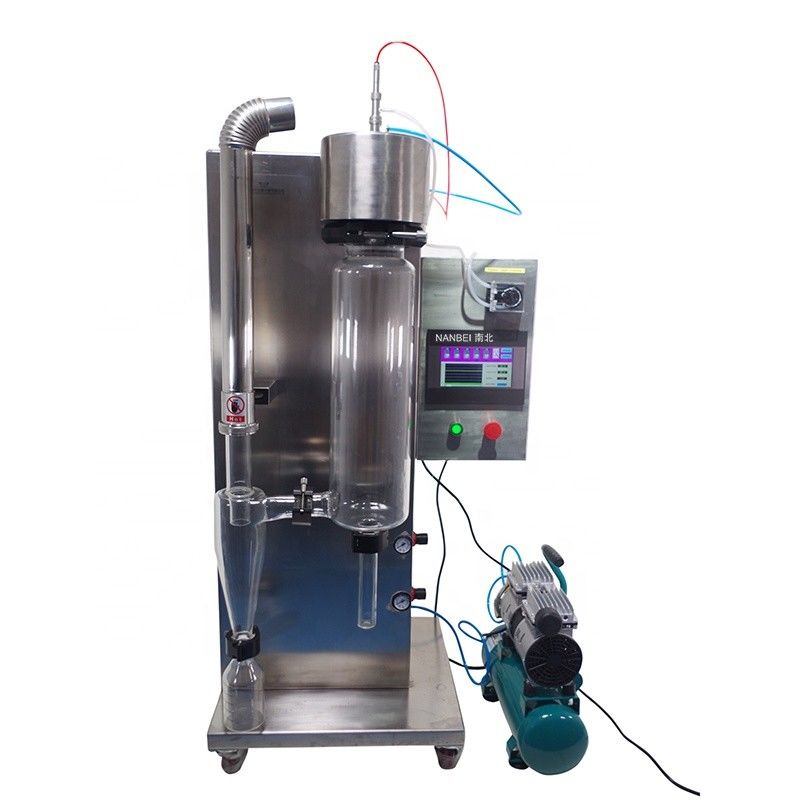

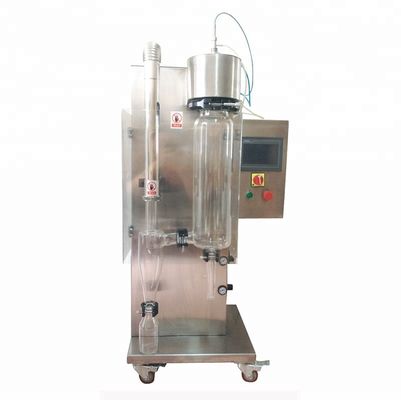

Easy Assemble Milk Powder 2L/H Laboratory Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Spray Drying Equipment | Application: | Milk Powder |
|---|---|---|---|
| Voltage: | 220V | Power(W): | 5.5KW |
| Dimension(L*W*H): | 650*500*1550mm | Key Selling Points: | Easy To Operate |
| Warranty: | 1 YEAR | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts |
| Weight (KG): | 150kg | Applicable Industries: | Laboratory |
| Local Service Location: | None | Showroom Location: | None |
| Drying Time: | 1.0-1.5S | Max. Capacity: | 2L/H |
| Compressor Brand: | ZIBO From Korea | Peristaltic Pump: | RS Brand From UK |
| PLC: | MCGS From Germany | Precision Of Temperature: | ±1C |
| Standard Nozzle: | Two Liquid 0.7mm Nozzles | Optional Nozzle: | 0.5/1.0/1.5/2.0/2.5mm |
| Highlight: | 2L/H Laboratory Spray Dryer,Milk Powder Laboratory Spray Dryer,2L/H Laboratory Scale Spray Dryer |
||
Product Description
Features:
1. Special for lab research, min 20-30ml liquid to finish one test
2. All borosiliscate glass for easy visual monitoring of process status
3. Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable enviroment
4. Easy to clean and very simple to assemble and break down
5. The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.
6. Inlet/outlet temperature is accurate controlled by PID.
7. The unit is self contained and supplied complete and ready for immediate operation

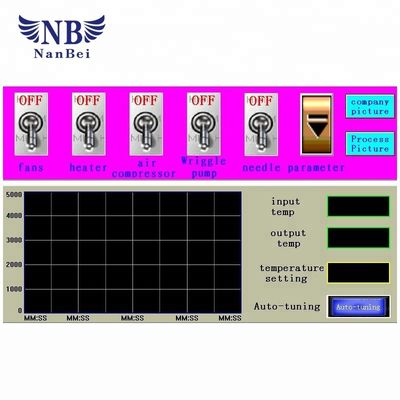

8 .Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency
9. Product feeding with RS2559605 rotary pump, capacity is adjustable
10. Automatic de-blocking device prevents the nozzle from becoming blocked and varaably controlled
Parameters:
|
Max capacity |
1500-2000ml/h |
|
Temperature range of Inlet air |
30C -280C |
|
Temperature range of outlet air |
40C -120C |
|
Precision of temperature |
± 1 C |
|
Dryer time |
1.0-1.5 S |
|
Speed of squirmy pump |
30-2000ml/h, |
|
Consume of dryer air |
0-330m3 /h, max pressure: 686Pa |
|
Consume of spray air |
0-4.2m3 /h, spray pressure: 2-5bar |
|
Spray system |
2 liquid nozzles with standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm |
|
Spray direction |
downwards co-current |
|
Power |
3.5KW 220V |
|
Dimensions |
650*500*1550 ( mm ) L * W* H |
Application:
1. Various fields where the production of a free powder sample is required
2. SP-1500 has successfully processed samples in the following areas: beverage, flavours and colourings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, palstics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adehesives, oxides, textiles, bones, teeth and tooth amalgam and many others.
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
