Instant Coffee Powder Making Machine Atomizer Lab Spray Dryer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | Lab Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Instant Coffee Powder Making Machine Atomizer Lab Spray Dryer | Model Type: | Lab Type |
|---|---|---|---|
| Application: | Food Industry | Rated Power: | 3kw |
| Material: | AISI 304 | Heater: | Electricity |
| Water Evaporation: | 1500mL / H ～～ 2500ml / H | Control System: | PLC Control System |
| Feed Amount: | 30ml ~ 2500ml / H Can Adjuste | ||
| Highlight: | Coffee Powder Making Machine 3kw,Atomizer Lab Spray Dryer,PLC Atomizer Lab Spray Dryer |
||
Product Description
Instant Coffee Powder Making Machine Atomizer Lab Spray Dryer
Products Features:
1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
| Item |
VOSHIN-2000P
|
| Specifications | Lab type spray dryer |
| Inlet air temperature control | 30 ℃ ～ 300 ℃ |
| Outlet temperature control | 30 ℃ ～ 140 ℃ |
| Evaporated water | 1500mL / H ～～ 2500ml / h |
| Feed amount | 30ml ~ 2500ml / h adjustable |
| Feeding method | Peristaltic pump adjustment |
| Dry air flow | 0 ～ 330m3 / h |
| Dry air full pressure | 686Pa |
| Temperature control accuracy | ± 1 ℃ |
| Average drying time | 1.0S ～ 1.5S |
|
Display parameters |
Air inlet temperature, air outlet temperature, peristaltic pump speed, fan flow rate, pass needle Frequency. |
| Nozzle size | 1.0mm can be customized |
|
Structural features |
Food-grade stainless steel machine and atomizer + spray, drying, and collection bottles are made of high-borosilicate heat-resistant glass |
| rated power | 3KW |
| Power supply | AC220V / 50Hz |
| Dimensions(HxLxW) | 1200mm × 650mm × 500mm |
| The standard configuration | 1 host + 1 glass container pipe + 1 built-in air compressor |
| Weight | 65kgs |
|
Capacity |
Feed capacity: 30ml-2500ml/h, finish capacity: about 1kg/h water evaporation: 1500ml-2500ml/h |
| Material | AISI 304 |
| Fan | With VFD |
| Control System | PLC |
| Others |
Small air pump, industrial switch, a data line |
| No | Name | Qty |
| 1 | Drying Chamber | 1 |
| 2 | Cyclone | 1 |
| 3 | Fan | 1 |
| 4 | Peristaltic pump | 1 |
| 5 | Air compressor | 1 |
| 6 | Collection bottle 500ml | 1 |
| 7 | Sample collection tube | 1 |
| 8 | Silicone tube 6mm | 1.5m |
| 9 | Nozzle | 1 |
| 10 | Black Clamp | 1 |
| 11 | Nozzle cleaner | 1 |
| 12 | Power wire | 1 |

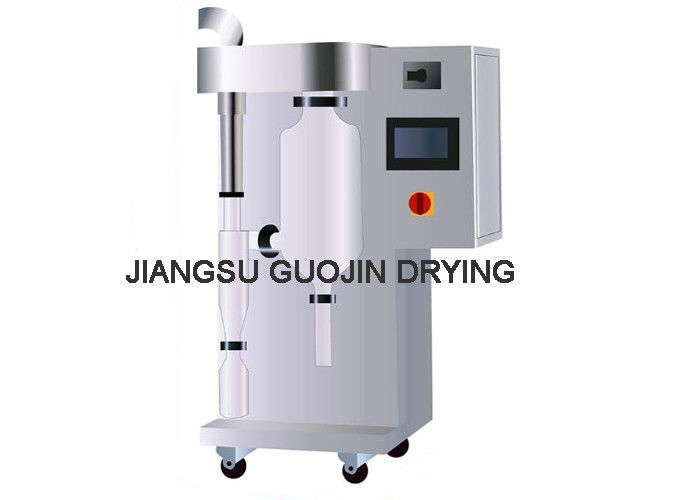

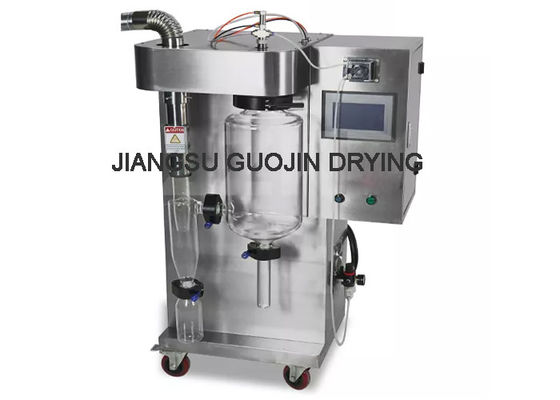

Bench Type Lab Spray Dryer Pictures
