2.2KW Motor Hybrid Double Screw Cone Mixer 0.5M3
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DSCM-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Hybrid Machinery Double Screw Cone Ribbon Mixer | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | DSCM-500 | Productive Capaicty: | 190kg/batch |
| Total Volume: | 0.5M3 | Feeding Rate: | 0.6 |
| Power Bulk Density: | 0.8 | Material Size: | 20-250mesh |
| Motor Power: | 2.2KW | Mixing Time: | 6-10min |
| Weight: | 800kg | Overall Dimension: | 1160x2250mm |
| Highlight: | Double Screw Cone Mixer 0.5M3,Double Screw Cone Mixer,0.5M3 Screw Conical Mixer |
||
Product Description
Hybrid Machinery Double Screw Cone Ribbon Mixer
The screw in the conical screw mixer rotates through its own axis parallel and close to the conical vessel wall. It lifts the surrounding powder from the bottom up, and then the powder falls by gravity. At the same time, the screw rotates around the center of the cone like a planet, so that the powder in each corner of the cone can be mixed by the screw.
Product Application
1) Mixing and homogenization of powders, pastes and slurries
2) Granulation or agglomeration of powders
3) Addition or injection of liquids into dry powders
4) Heating and cooling of powders
Product Advantage
1. Short mixing time and high efficiency.
2. The mixing capacity is large, which is 25-40% higher than that of V-type mixer.
3. High mixing accuracy and low energy consumption.
4. Fast discharge of bottom discharge
Product Working Principle
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effected motions including:
1.The revolution of the screw along the wall making the material conduct a revolution motion.
2.The rotation of the screw making the material rise along the screw from the cone bottom.
3.The compound motion of the rotation and revolution of the screws making partial material be absorbed into the screw cylindroid. Meanwhile, under the motion ot centrifugal force, the partial material in the screw cylindroid discharges radially.
4. The descended material drops under its sole weight. The four kinds of motions effect convection,
shearing and diffusion in the cone, thus quick mixing can be achieved.
Technical Parameters
| Model | Productive capacity(kg/batch) | Total volume)m3) | Feeding rate | Power bulk density | Material size | Motor power(kw) | Mixing time(min) | Overall dimensions(mm) | Weight(kg) |
| DSCM200 | 95 | 0.2 | 0.6 | 0.8 | 20-250 | 2.2 | 6-10 | 890*1850 | 600 |
| DSCM500 | 190 | 0.5 | 0.6 | 0.8 | 20-250 | 2.2 | 6-10 | 1160*2250 | 800 |
| DSCM1000 | 380 | 1 | 0.6 | 0.8 | 20-250 | 4 | 8-10 | 1450*2700 | 1200 |
| DSCM2000 | 720 | 2 | 0.6 | 0.8 | 20-250 | 5.5 | 8-10 | 1850*3450 | 1800 |
| DSCM4000 | 1400 | 4 | 0.6 | 0.8 | 20-250 | 11 | 8-10 | 2260*4210 | 3000 |

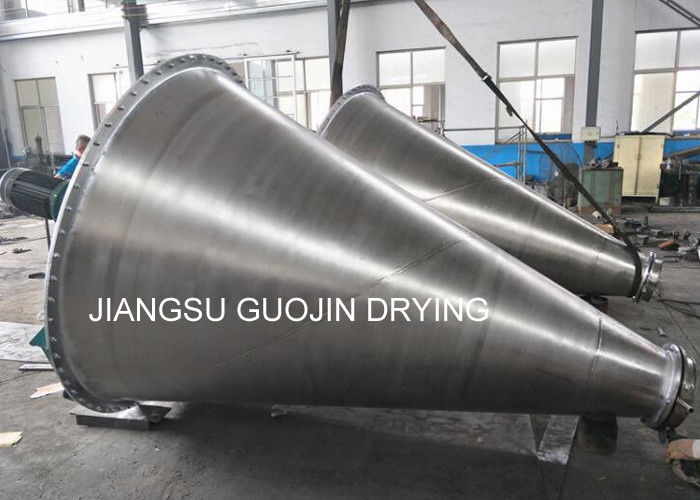

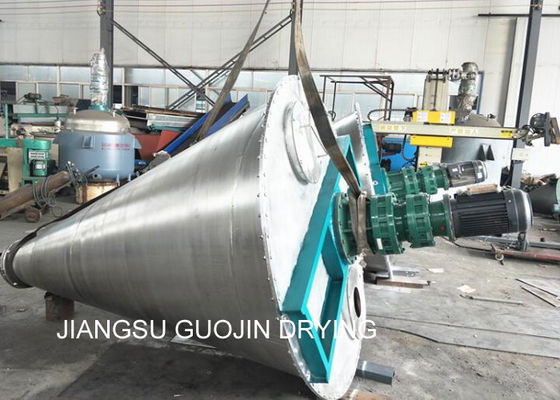

Product Show
