220V 380V Stainless Steel Double Screw Conical Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Stainless Steel Double-Screw Conical Mixer Vertical Ribbon Chemical Blender | Application: | Chemicals Processing, Plastics Processing, Food Processing,Pharmaceutical Processing |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Power: | 220V/380V | Certification: | ISO9001 |
| Key Selling Points: | Long Service Life | Warranty: | 12 Months |
| Material: | Stainless Steel | Mixing Capacity: | 0.3-30 T/ H |
| Mixing Material: | Powder-powder / Powder Added With Liquid | Mixing Time: | 6-10 Minutes |
| Machine Type: | Double-Cone Mixing Machine | ||
| Highlight: | 220V Double Screw Conical Mixer,380V Double Screw Conical Mixer,SS Vertical Ribbon Blender |
||
Product Description
Stainless Steel Double-Screw Conical Mixer Vertical Ribbon Chemical Blender
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effecte motions include;
1. The revolution of the screw along the wall making the material conduct a circumferential motion;
2. The rotation of the screw making the material rise along the screw from the cone bottom:
3. The compound motion of the rotation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially.
4. The rised material drops under its sole weight. The four kinds of motions effect convection, shearing, diffusion in the cone ,thus quick and even mixing can be achieved.
Working Principle
Double Screws Cone Mixer is short for the cantilever Double Screws Cone Mixer.It is suitable for the solid – liquid,solid-solid materials mixing.
The material barrel of the machine is an inverted cone,in which there are two non-symmetrical upgrading screw equipped.
When the screw rotates,it will produce a lfting force to make the material to the upper of the barrel, and aggregates in the depression then falls down to fill up the vacancy.
Product Application
It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology. The discharge valve adopts two ways , one is manual or the other is pneumatical. The power of motor can be enlarged for special material(strengthening type).
Product Features
It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology.
Technical Parameters
| Type | CVRM-0.3 | CVRM-0.5 | CVRM-1 | CVRM-2 | CVRM-4 | CVRM-5 | CVRM-6 | CVRM-10 |
| Total volume(M3) | 0.3 | 0.5 | 1 | 2 | 4 | 5 | 6 | 10 |
| Feeding Ratio | 0.4-0.6 | |||||||
| Mixing Material(um) | 40-3000 | |||||||
| Working condition | Normal temperature, pressure and dust seal | |||||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
| Mixing time(min) | 6-10(depend on different material) | |||||||

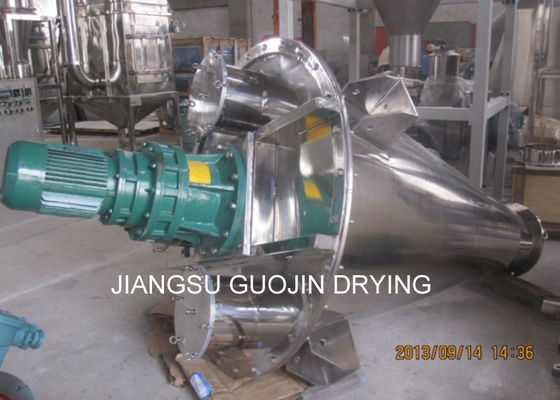

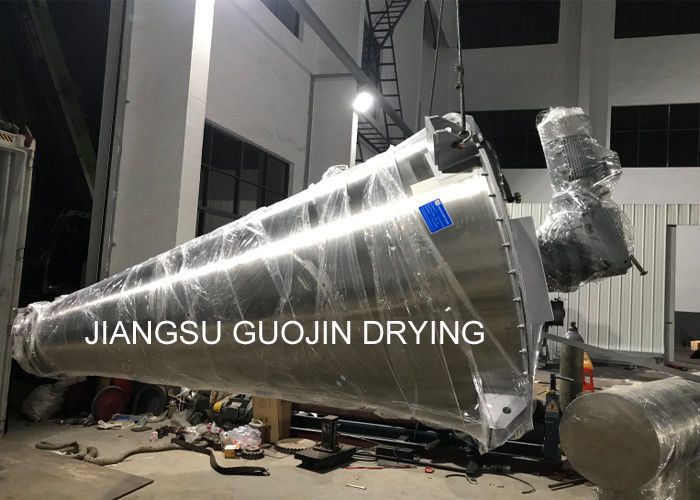

Product show
