30T/H SS Double Screw Cone Mixer For Food Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Double Screw Lifting Baldes Conical Mixer/Vertical Ribbon Blender For Fertilizer | Application: | Medicine Processing, Chemicals Processing, Plastics Processing |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Power: | 220V/380V | Certification: | ISO9001 |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Material: | Stainless Steel | Mixing Capacity: | 0.3-30T/h |
| Mixing Material: | Powder-powder/powder Added With Liquid | Mixing Time: | 6-10 Minutes |
| Highlight: | 30T/H Double Screw Cone Mixer,SS Double Screw Cone Mixer,Conical Ribbon Mixing Machine |
||
Product Description
Double Screw Cone Mixer/ Food Powder Conical Ribbon Mixing Machine
The material is made to conduct a compound motion in the cone because of the rotation and revolution of the screws. The effecte motions include;
1. The revolution of the screw along the wall making the material conduct a circumferential motion;
2. The rotation of the screw making the material rise along the screw from the cone bottom:
3. The compound motion of the rotation and revolution of the screws making partial, material be absorbed into the screw cylindroid meanwhile, under the action of centrifugal force, the partial material in the screw cylindroid discharges radially.
4. The rised material drops under its sole weight. The four kinds of motions effect convection, shearing, diffusion in the cone ,thus quick and even mixing can be achieved.
Working Principle
Double Screws Cone Mixer is short for the cantilever Double Screws Cone Mixer.It is suitable for the solid – liquid,solid-solid materials mixing.
The material barrel of the machine is an inverted cone,in which there are two non-symmetrical upgrading screw equipped.
When the screw rotates,it will produce a lfting force to make the material to the upper of the barrel, and aggregates in the depression then falls down to fill up the vacancy.
Product Application
It is suitable for chemical industry, pharmaceutical industry pesticide, dyestuff, petroleum industry, metallurgical Industry.
construction material and etc.Such as in the mixing, reaction, drying, cooling of powder and powder(solid-sold), powder and liguid (solid liguid). liguid and liguid ( liguid -liguid).
Product Features
The mixer has many types. such as heating type, cooling type, vacuum type and heavier type. According to your needs, we can add a jacket in the external of the barral.
If the material's viscosity are heavy, you can adopt to ribbon mixing method to mix the materials.
There are two types of driven form : manual drive and pneumatic drive.
Technical Parameters
| Type | CVRM-0.3 | CVRM-0.5 | CVRM-1 | CVRM-2 | CVRM-4 | CVRM-5 | CVRM-6 | CVRM-10 |
| Total volume(M3) | 0.3 | 0.5 | 1 | 2 | 4 | 5 | 6 | 10 |
| Feeding Ratio | 0.4-0.6 | |||||||
| Mixing Material(um) | 40-3000 | |||||||
| Working condition | Normal temperature, pressure and dust seal | |||||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
| Mixing time(min) | 6-10(depend on different material) | |||||||

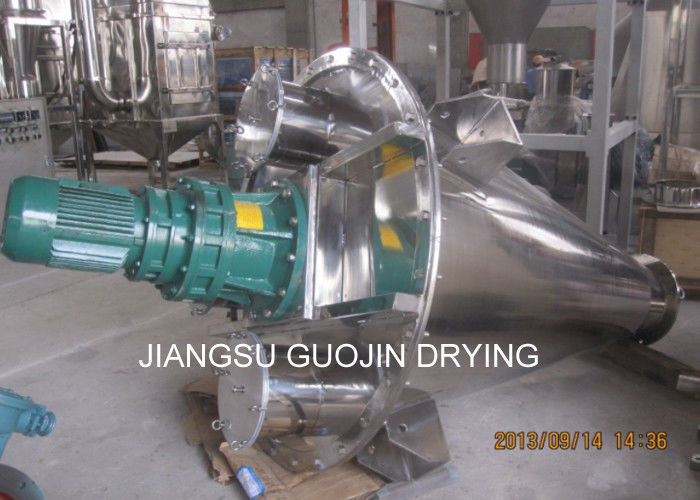

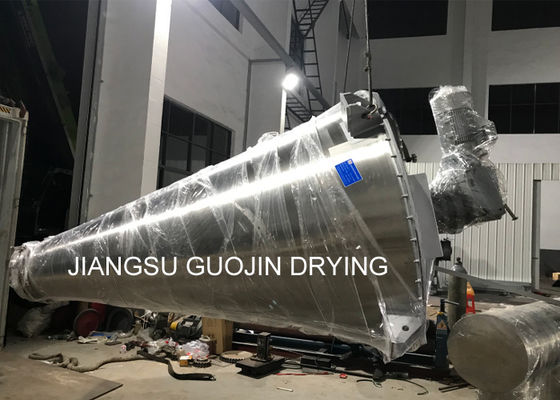

Product show
electrical, steam, natural gas or other
