30T/H Double Screw Conical Vertical Powder Blender 380V 60HZ
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Conical Double Auger Cone Screw Type Vertical Powder Blender | Application: | Powder, Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Power: | 380V/60HZ | Key Selling Points: | Long Service Life |
| Warranty: | 12 Months | Material: | Stainless Steel |
| Mixing Capacity: | 0.3-30 T/ H | Mixing Material: | Powder Mix Powder / Powder Added With Liquid |
| Mixing Time: | 6-10 Minutes | Machine Type: | Blender Machine |
| Application Scope: | High Viscosity Product | ||
| Highlight: | Vertical Powder Blender 380V,Vertical Powder Blender 60HZ,30T/H Screw Conical Mixer |
||
Product Description
Conical Double Auger Cone Screw Type Vertical Powder Blender
The double spiral cone mixer is a new type of mixer with high uniformity, low energy consumption, low residue and low crushing. The product has a wide range of application, can mix powder and powder, powder and liquid, especially can mix fine powder, fiber or sheet materials; the product has a wide range of application, and is widely used in pharmaceutical, food, lithium battery materials, dye, pigment, chemical industry, fertilizer, rare earth, titanium dioxide and other fields.
Working Principle

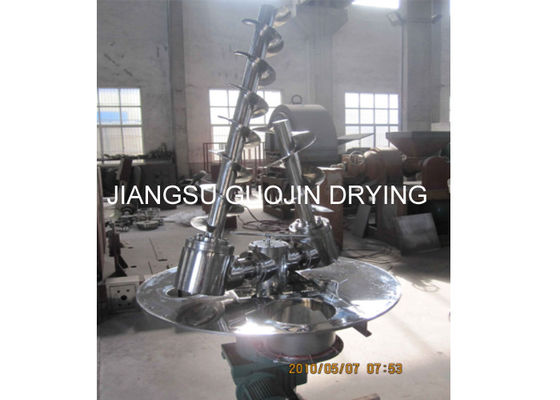

The double spiral cone mixer is composed of a driving part, a screw agitator and an inverted cone can body. The agitator is composed of two asymmetric spirals, which rotate around the axis and make a revolution in the cone with the help of the rotating action of the rotating arm. The equipment makes the material lift repeatedly through the revolution of the spirals and produces compound movements such as shearing, convection and diffusion in the cone, so as to achieve the purpose of uniform mixing.
Product Application
| It is suitable for raw materials having large difference in specific gravity and large ratio of formulation. It is applied to chemical industry, medicine, pharmaceutical industry, foodstuff, biotechnology, healthy products, fertilizer, dyestuff, pigment, metallurgy, mine, building materials, plastic, and and other powder and powder (solid-solid), powder and liquid (the solid-liquid), liquid and the liquid (liquid-liquid) mixed. |
Product Features
It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology.
Technical Parameters
| Type | CVRM-0.3 | CVRM-0.5 | CVRM-1 | CVRM-2 | CVRM-4 | CVRM-5 | CVRM-6 | CVRM-10 |
| Total volume(M3) | 0.3 | 0.5 | 1 | 2 | 4 | 5 | 6 | 10 |
| Feeding Ratio | 0.4-0.6 | |||||||
| Mixing Material(um) | 40-3000 | |||||||
| Working condition | Normal temperature, pressure and dust seal | |||||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
| Mixing time(min) | 6-10(depend on different material) | |||||||

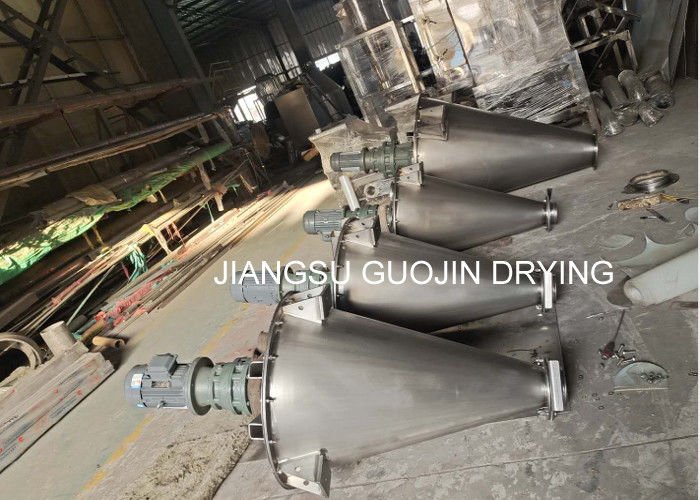

Product show
