SS Twin Screw Vertical Ribbon Mixer For Chemical Compost Products
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Chemical Compost Product Machine Vertical Twin Screw Ribbon Mixer | Application: | Chemicals,Plastics, Food,Pharmaceutical |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Power: | 380V/60HZ | Certification: | ISO9001 |
| Key Selling Points: | Long Service Life | Warranty: | 12 Months |
| Material: | Stainless Steel | Mixing Capacity: | 0.3-30 T/ H |
| Mixing Material: | Powder Mix Powder / Powder Added With Liquid | Mixing Time: | 6-10 Minutes |
| Machine Type: | Mixing Machine | ||
| Highlight: | Twin Screw Vertical Ribbon Mixer,SS Vertical Ribbon Mixer,Twin Screw Vertical Ribbon Blender |
||
Product Description
Chemical Compost Product Machine Vertical Twin Screw Ribbon Mixer
A double-layer spiral blade is arranged on the main shaft of the mixer. The internal screw conveys the material to the outside, and the external screw gathers the material to the inside. Under the convective motion of the material in the double helix belt, a low dynamic and efficient mixing environment is formed. The inner and outer diameter screw installed on the mixing shaft drives the materials in the barrel, so that the agitator can turn the materials in the barrel at the maximum range. When the mixing device works, the inner screw drives the materials close to the shaft center to rotate, the axial direction is pushed from the inside to both sides, and the outer screw drives the materials close to the barrel wall to rotate axially, and the axial direction is pushed from both sides to the inside. The mixed materials can be evenly mixed in a short time.
Working Principle
Double Screws Cone Mixer is short for the cantilever Double Screws Cone Mixer.It is suitable for the solid – liquid,solid-solid materials mixing.
The material barrel of the machine is an inverted cone,in which there are two non-symmetrical upgrading screw equipped.
When the screw rotates,it will produce a lfting force to make the material to the upper of the barrel, and aggregates in the depression then falls down to fill up the vacancy.
Product Application
| It is suitable for raw materials having large difference in specific gravity and large ratio of formulation. It is applied to chemical industry, medicine, pharmaceutical industry, foodstuff, biotechnology, healthy products, fertilizer, dyestuff, pigment, metallurgy, mine, building materials, plastic, and and other powder and powder (solid-solid), powder and liquid (the solid-liquid), liquid and the liquid (liquid-liquid) mixed. |
Product Features
It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology.
Technical Parameters
| Type | CVRM-0.3 | CVRM-0.5 | CVRM-1 | CVRM-2 | CVRM-4 | CVRM-5 | CVRM-6 | CVRM-10 |
| Total volume(M3) | 0.3 | 0.5 | 1 | 2 | 4 | 5 | 6 | 10 |
| Feeding Ratio | 0.4-0.6 | |||||||
| Mixing Material(um) | 40-3000 | |||||||
| Working condition | Normal temperature, pressure and dust seal | |||||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
| Mixing time(min) | 6-10(depend on different material) | |||||||

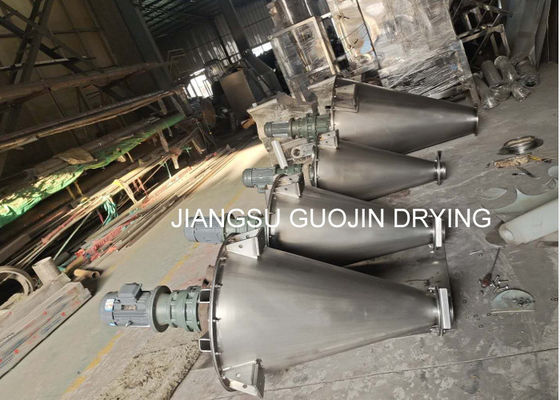

Product show
