380V Dry Powder Twin Conical Screw Spiral Ribbon Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Industrial Dry Powder Twin Conical Screw Spiral Ribbon Mixer Price | Application: | Powder Processing, Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Condition: | New Product 2021 | Place Of Origin: | Jiangsu, China |
| Power: | 380V | Key Selling Points: | Long Service Life |
| Warranty: | 1 Year | Material: | Stainless Steel 304 |
| Mixing Capacity: | 0.3-30 Ton Per Hour | Mixing Material: | Powder & Powder / Powder Added With Liquid |
| Mixing Time: | 6-10 Minutes | Machine Type: | Double Cone Blender Machine |
| Application Scope: | Viscosity Product | ||
| Highlight: | Twin Conical Screw Spiral Ribbon Mixer,Dry Powder Spiral Ribbon Mixer,380v conical ribbon mixer |
||
Product Description
Industrial Dry Powder Twin Conical Screw Spiral Ribbon Mixer Price
Double helix conical mixer is widely apply to chemical, metallurgy, food, medicine, fertilizer, pesticide ,fodder, additive, fireproofing, building materials and all kinds of mixer between solid and solid(powder and powder).
Double helix conical mixer is safe to operate, wide applicability, The heat sensitive material will not cause overheating , protect the particle materials avoiding squashed the materials, no layered segregation happens when mixing the different proportion and granularity materials. It is also better for mixing the block, fine and ultrafine particle, fiber or some sheet materials.
It's high efficiency, uniform mixing as well as little money little space but quick returns and easy operation.
The material of Double helix conical mixer can be carbon steel, stainless steel or as request.
Working Principle
The double spiral cone mixer is composed of a driving part, a screw agitator and an inverted cone can body. The agitator is composed of two asymmetric spirals, which rotate around the axis and make a revolution in the cone with the help of the rotating action of the rotating arm. The equipment makes the material lift repeatedly through the revolution of the spirals and produces compound movements such as shearing, convection and diffusion in the cone, so as to achieve the purpose of uniform mixing.
Product Application
| It is suitable for raw materials having large difference in specific gravity and large ratio of formulation. It is applied to chemical industry, medicine, pharmaceutical industry, foodstuff, biotechnology, healthy products, fertilizer, dyestuff, pigment, metallurgy, mine, building materials, plastic, and and other powder and powder (solid-solid), powder and liquid (the solid-liquid), liquid and the liquid (liquid-liquid) mixed. |
Product Features
1. Material : SS304 ; SS316 ; Carbon steel ( Other materials can be customized according to customer's requirement )
2. Double helix conical mixer's function: a variety of dry powder mixed evenly
3. Mixing mode : Double helix
4. Feeding mode : by manual operation or use screw elevator
5. Discharging mode : Valve
6. Choose the heating or cooling way with jacket or not according to customer‘s requirement
7. Can be customized according to customer's requirement.
Technical Parameters
| Type | CVRM-0.3 | CVRM-0.5 | CVRM-1 | CVRM-2 | CVRM-4 | CVRM-5 | CVRM-6 | CVRM-10 |
| Total volume(M3) | 0.3 | 0.5 | 1 | 2 | 4 | 5 | 6 | 10 |
| Feeding Ratio | 0.4-0.6 | |||||||
| Mixing Material(um) | 40-3000 | |||||||
| Working condition | Normal temperature, pressure and dust seal | |||||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
| Mixing time(min) | 6-10(depend on different material) | |||||||
Product Structure

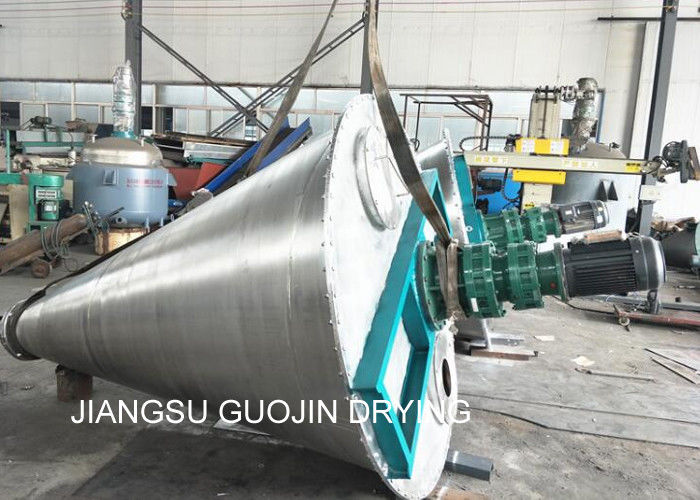

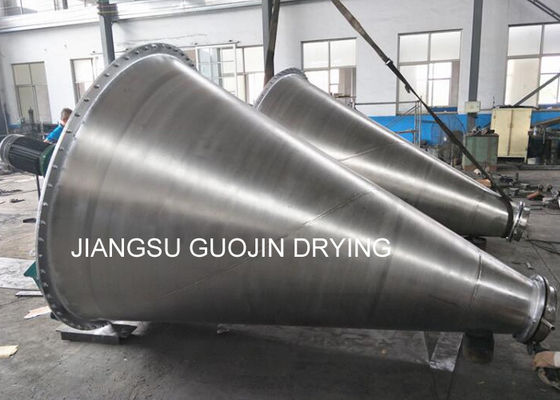

Product show
