30T/H Double Screw Conical Mixer ISO9001 For Medicine Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVRM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Double Screw Lifting Baldes Conical Mixer | Application: | Medicine Processing, Chemicals Processing, Plastics Processing |
|---|---|---|---|
| Condition: | New | Place Of Origin: | Jiangsu, China |
| Power: | Depand On The Model | Certification: | ISO9001 |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Material: | Stainless Steel | Mixing Capacity: | 0.3-30T/h |
| Mixing Material: | Powder-powder/powder Added With Liquid | ||
| Highlight: | 30T/H Conical Mixer,Conical Mixer ISO9001,30t/h conical screw mixer |
||
Product Description
Double Screw Lifting Baldes Conical Mixer
CVRM is one high efficient mixing equipment, which is widely applied in mixing solid-solid status materials
(powder-powder), as well as mixing solid-liquid status materials (powder materials added with liquid materials) from the chemical,pharmaceutical,fertilizer,dye,metallurgy,mine,food,monosodium glutamate,fodder industries.
This equipment is adaptable and flexible to the mixture, cannot cause heat sensitive materials overheated and cannot grate partical materials.
Working Principle
Double Screws Cone Mixer is short for the cantilever Double Screws Cone Mixer.It is suitable for the solid – liquid,solid-solid materials mixing.
The material barrel of the machine is an inverted cone,in which there are two non-symmetrical upgrading screw equipped.
When the screw rotates,it will produce a lfting force to make the material to the upper of the barrel, and aggregates in the depression then falls down to fill up the vacancy.
Product Application
Conical Screw Mixer is widely used in the industry such as pharmaceutical, food, battery materials, dyestuff & pigment, chemical industry, fertilizer, rare earth, titanium powder etc.
Product Features
The mixer has many types. such as heating type, cooling type, vacuum type and heavier type. According to your needs, we can add a jacket in the external of the barral.
If the material's viscosity are heavy, you can adopt to ribbon mixing method to mix the materials.
There are two types of driven form : manual drive and pneumatic drive.
Technical Parameters
| Type | CVRM-0.3 | CVRM-0.5 | CVRM-1 | CVRM-2 | CVRM-4 | CVRM-5 | CVRM-6 | CVRM-10 |
| Total volume(M3) | 0.3 | 0.5 | 1 | 2 | 4 | 5 | 6 | 10 |
| Feeding Ratio | 0.4-0.6 | |||||||
| Mixing Material(um) | 40-3000 | |||||||
| Working condition | Normal temperature, pressure and dust seal | |||||||
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
| Mixing time(min) | 6-10(depend on different material) | |||||||

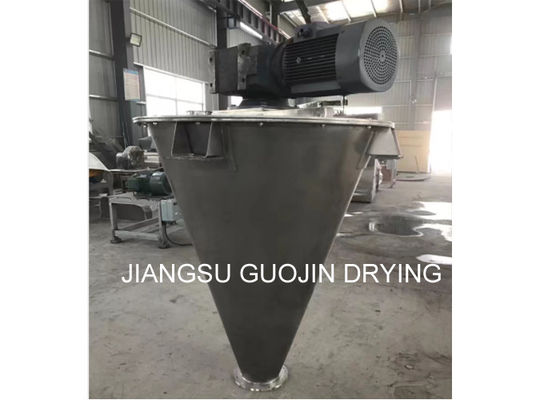

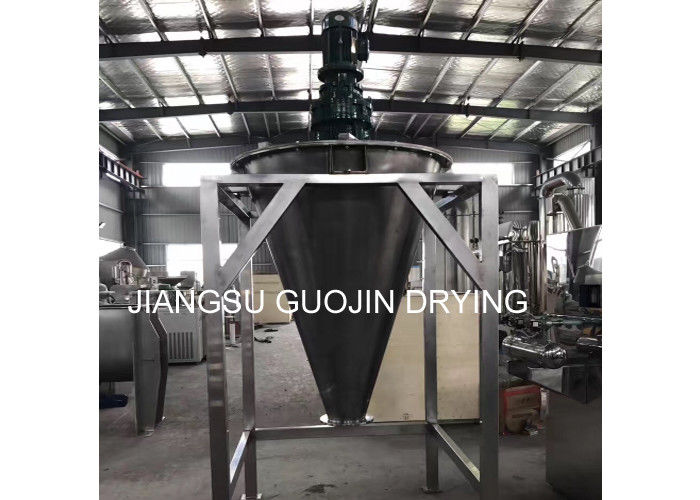

Product show
