18KW Mini SS304 SS316L Laboratory Spray Dryer CE Approved
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | LPG-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 18KW Mini SS304 SS316L Laboratory Spray Dryer CE Approved | Model Type: | LPG-5 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing | Condition: | New |
| Place Of Origin: | Jiangsu, China | Voltage: | 220V - 415V |
| Power: | 18kw | Certification: | ISO9001,CE |
| Key Selling Points: | Long Service Life | Warranty: | 1 Year |
| Material: | SS304 Or 316L | Use Purpose: | Lab Or Pilot |
| Atomizer: | Centrifugal Atomizer | Heater: | Electric Heater |
| Water Consumption: | 0.1m3/h | Water Evaporation: | 3~5Kg/h |
| Highlight: | 18KW Laboratory Spray Dryer,SS316L Laboratory Spray Dryer,SS304 Lab Spray Dryer |
||
Product Description
18KW Mini SS304 SS316L Laboratory Spray Dryer CE Approved
| 1 | Rotary atomizer spray dryer / Rotary atomizer spray dryer price / Rotary atomizer type spray dryer |
| 2 | Low energy consumption and large handling capacity |
| 3 | Easy operation and control |
Rotary Atomizer Spray Dryer Description
LPG Rotary atomizer spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
Rotary Atomizer Spray Dryer Price Application
LPG rotary atomizer spray dryer price is widely used in foodstuff, pharmaceutical and chemical industry, such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, coconut, milk, gelatin, gum and acacia etc.
Rotary Atomizer Type Spray Dryer Working Principle
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
What is the most suitable heating source supply ?
1. Electricity: This is suitable for small capacity spray dryer, like LPG-5 and the sample testing spray dryer.
2. Electricity+steam
3. Electricity+steam/oil/gas
Notes: It can been settled by customers yourselves.
What is the different characteristic of centrifugal spray dryer from others ?
1. The tower body has cold wind jacket.
2. The tower body is provided with an automatic vibrating device.
3. The tower body, the pipeline is equipped with the quick opening cleaning hole and the sewage hole.
4. Automatic control of constant temperature feeding tank.
5. Manual high-pressure washing tower random accessories.
6. The part in contact with the material is made of stainless steel material (or all stainless steel manufacturing.
7. The material collection adopts the two-stage cyclone dust collector, or the first stage cyclone dust collector and the wet type dust collector.
8. Automatic control of inlet air temperature and continuous device
9. Equipped with air sweep device.
Why choose the centrifugal spray dryer to drying ?
The drying speed is fast and the surface area of the liquid is greatly increased after atomization. In the hot air flow, 95% -98% moisture can be evaporated instantly. The drying time is only a few seconds, which is especially suitable for the drying of thermos-sensitive materials.
The product has good uniformity, fluidity and solubility, high purity and good quality.
Simplified production process, easy operation and control. For 40-60% moisture content (special materials up to 90%) liquid can be dried into powder products, control and management are very convenient.
In order to quota you the right rotary atomizer spray dryer price / rotary atomizer spray dryer / lab rotary atomizer type spray dryer price, we would like to get the following information include in your inquiry:
- -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
- -What is the capacity per hour you need (kg/h)?
- -What is the initial moisture and final moisture of finished products you require to get?
- -What about the maximum heat temperature of raw material?
- -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
- -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
- -Provide us your country’s electricity information, such as phases, voltage, HZ?
- -How about dust collect requirements?
- -Other special requirements?
Flowchart of Centrifugal Spray Dryer

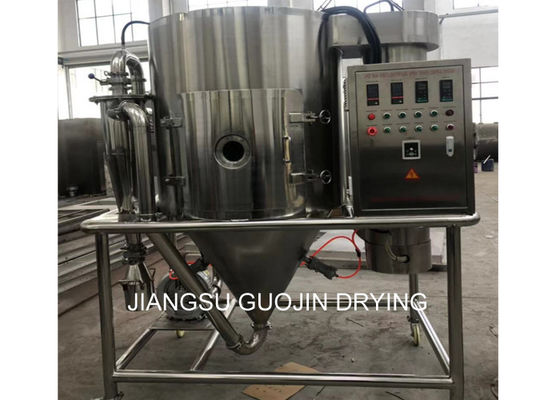

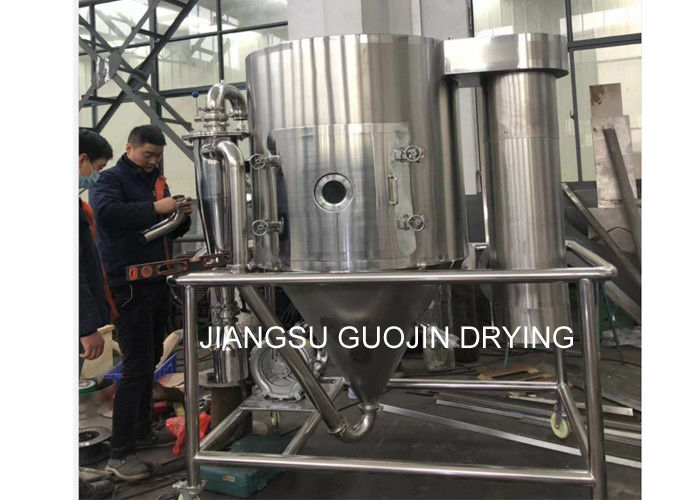

Pictures of LPG-5 Mini Lab Spray Dryer
