1.5M Diameter 3 Layers Circulating Vibrating Sifter Machine For Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVS-1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Item Name: | 1M Diameter 3 Layers Circulating Vibrating Sifter For Powder | Model Teype: | CVS-1500 |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory, Farms, Chemical | Production Capacity: | 350-4500kg/h |
| Mesh: | 5-325 | Motor Power: | 2.0kw |
| Main Shaft Revolution: | 1500r/min | Net Weight: | 400kg |
| Overall Dimensions: | 1600x1600x1200mm | ||
| Highlight: | Circulating Vibrating Sifter Machine,3 Layers Vibrating Sifter Machine,D 1.5M Vibrating Screening Equipment |
||
Product Description
1.5M Diameter 3 Layers Circulating Vibrating Sifter For Powder
Circular rotary vibrating screen belongs to a high precision fine powder separation machine, it designed for classifying, grading, and filtering of wet and dry materials, it suitable for powdery, granular, liquid mucilage.
Working Principle:
Circular series vibrating sieve uses an upright motor as the resource of the vibration. The eccentric hammers installed on the top and bottom ends of the motor changes the rotation motion of the motor to horizontal, vertical and inclined three dimensional motions, and then passes the motion to the screen surface, achieving the purpose of classification, filtering and removal of impurities.
Application:
- Solid scalping and sifting:
Pharmaceutical powder, Flour, starch, sugar, daily powder, spices, sugar, instant coffee granules, cocoa powder, lactose, grain,
metal powders, casein, detergents, abrasives, resin, PVC compound, etc.
- Solid classifying and separating:
cocoa powder, tea powder fish meal, grain, seeds ground coffee pharmaceutical granules and intermediates, animal feed,
abrasives, biological agents, resin, additives, silicon carbide, calcium carbonate, ash, gluten, pigments, plastic compounds cellulose,
ceramic powder, metallurgy powder, polymer, aluminum powder, refractory material, etc.
- Liquid gravity filtering:
Fruit juices, fish, soybean oil - latex, paint, catalyst, pulp and paper, carpets,
animal blood, ceramic, kaolin, metallurgy, pharmaceuticals, etc.
Technical Parameter:
| Model | Product capacity(kg/h) | Mesh | Motor power(kw) | Main shaft revolution(r/min) | Overall dimensions(mm) | Net weight(kg) |
| CVS-365 | 60-500 | 12-200 | 0.55 | 1380 | 540*540*1060 | 100 |
| CVS-515 | 100-1300 | 12-200 | 0.75 | 1370 | 710*710*1290 | 180 |
| CVS-650 | 180-2000 | 12-200 | 1.50 | 1370 | 880*880*1350 | 250 |
| CVS-800 | 250-3500 | 5-325 | 1.50 | 1500 | 900*900*1200 | 300 |
| CVS-1000 | 300-4000 | 5-325 | 1.50 | 1500 | 1100*1100*1200 | 350 |
| CVS-1500 | 350-4500 | 5-325 | 2.0 | 1500 | 1600*1600*1200 | 400 |
Features:

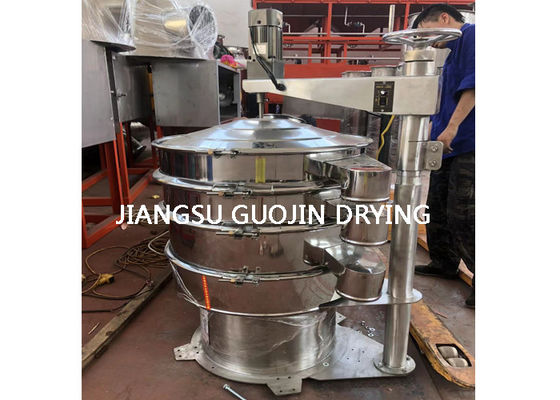

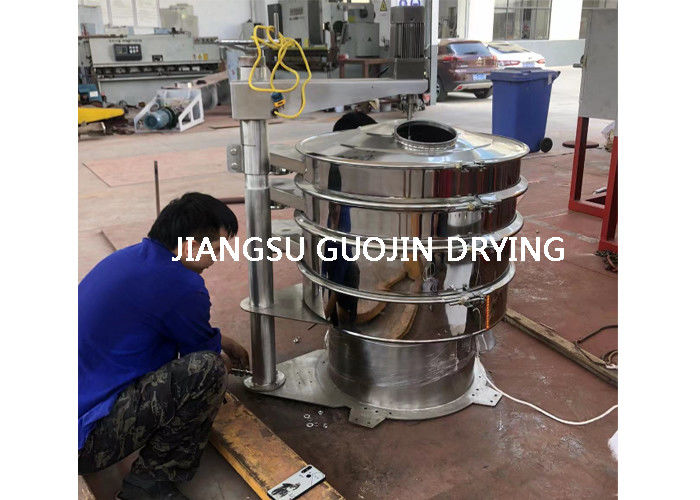

Picture show:
