380V Rectangular Vibrating Screen 1500kg/h With Modular System
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | RVS-0.6x1.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Item Name: | RVS Rectangle Vibrating Screen | Model Teype: | RVS-0.6x1.5 |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory, Farms, Chemical Factory | Power: | 0.4x2 |
| Inclined Angle Of Sieve Surface: | 0-45 Adjustable | Voltage: | 380V |
| Layers Of Sieve Surface: | 1-4 | Mesh: | 6-120 |
| Weight: | 550kg | Output: | 150-1500kg/h |
| Overall Dimension: | 1500x700x700mm | ||
| Highlight: | 380V Rectangular Vibrating Screen,Modular Rectangular Vibrating Screen,Vibrating Screening Equipment 1500kg/h |
||
Product Description
RVS Rectangle Vibrating Screen
Main Features:
1. Sieving or separating bulk material with fine, medium or coarse particle sizes
Working Principle:
This rectangular linear vibrating screen sieve is driven by two vibration motors that produces a horizontal and linear tumbling vibration motion once the centrifugal discs are correctly adjusted, causing the material being screened to move from feed end to discharge end. In addition, the vibratory motion can be easily adjusted in order to adjust the screening quality and throughput as required for the application at hand.
This rectangular linear vibrating screen sieve is specially designed for sieving or separating bulk materials with fine, medium or coarse particle sizes in food, chemical or pharmaceutical industry. They are also perfect for use in wet screening applications.
Technical Advantage:
1. Dry and wet screening, easy to adjust as required for the material screended.
2. A modular system makes it possible to put together configurations that meet your specific needs.
3. Up to 3 decks and 4 particle size ranges.
4. Low power consumption and foundation load.
5. Dust-tight and water-tight.
6. Screens can be replaced easily and quickly.
Technical Parameter:
| Model | Power(kw) | Inclined angle of sieve surface | Voltage | Layers of sieve surface | Mesh | Overall dimension(mm) | Weight | Output(kg/h) |
| RVS0.6x1.5 | 0.4x2 | 0~45 adjustable | 380 | 1-4 | 6-120 | 1500x700x700 | 550 | 150-1500 |
| RVS0.65x2.0 | 0.4x2 | 0~45 adjustable | 380 | 1-4 | 6-120 | 2100x750x780 | 650 | 160-2000 |

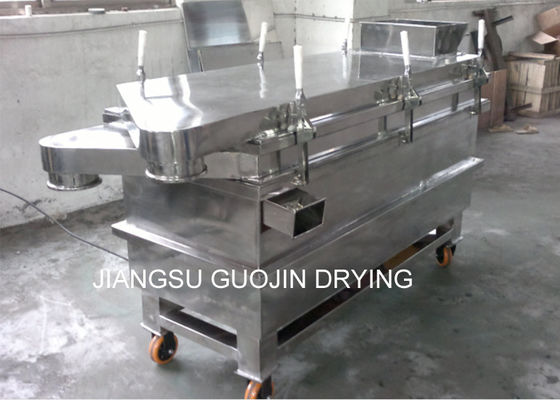

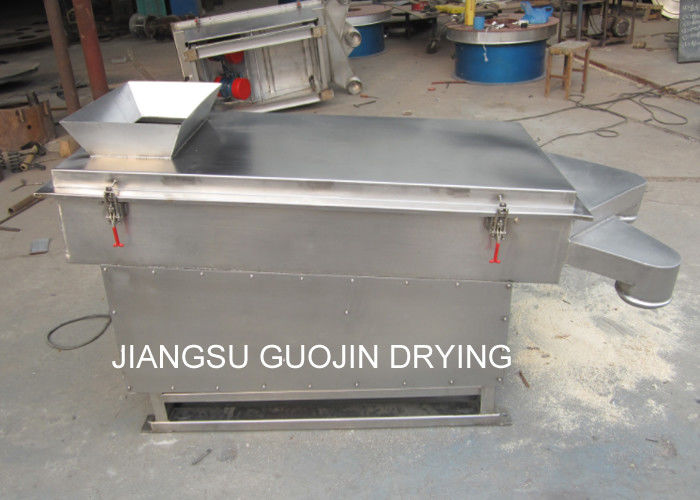

Picture show:
