1.5KW Single Layer Rotary Vibrating Sifter For Cashew Nut Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVS-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Item Name: | Cashew Nuts And Cacao Beans Powder Circula Single Layer Rotary Vibrating Sifter | Model Teype: | CVS-1000 |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory, Farms, Chemical | Production Capacity: | 300-4000kg/h |
| Mesh: | 5-325 | Motor Power: | 1.50kw |
| Main Shaft Revolution: | 1500r/min | Net Weight: | 350kg |
| Overall Dimensions: | 1100x1100x1200mm | ||
| Highlight: | Cashew Nut Powder Rotary Vibrating Sifter,1.5KW Rotary Vibrating Sifter,1.5KW Circular Vibrating Screen |
||
Product Description
Cashew Nuts And Cacao Beans Powder Circula Single Layer Rotary Vibrating Sifter
Circular rotary vibrating screen belongs to a high precision fine powder separation machine, it designed for classifying, grading, and filtering of wet and dry materials, it suitable for powdery, granular, liquid mucilage.
Working Principle:
Circular series vibrating sieve uses an upright motor as the resource of the vibration. The eccentric hammers installed on the top and bottom ends of the motor changes the rotation motion of the motor to horizontal, vertical and inclined three dimensional motions, and then passes the motion to the screen surface, achieving the purpose of classification, filtering and removal of impurities.
Application:
1. CVS series vibration sieve is suitable for in line production. It is an ideal device for granule that has uneven size to sieve continuously.
2. The machine consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, man shaft bearing and so on. The adjustable eccentric weight can drive to the central line of main shaft through motor. Under the unstable state, it produces centrifugal force that makes raw material form vortex in the sieve. The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials.
3. The whole structure of machine is compact, small in volume, no dust, low in noise, low in energy consume, convenient in moving and maintenance.
Technical Parameter:
| Model | Product capacity(kg/h) | Mesh | Motor power(kw) | Main shaft revolution(r/min) | Overall dimensions(mm) | Net weight(kg) |
| CVS-365 | 60-500 | 12-200 | 0.55 | 1380 | 540*540*1060 | 100 |
| CVS-515 | 100-1300 | 12-200 | 0.75 | 1370 | 710*710*1290 | 180 |
| CVS-650 | 180-2000 | 12-200 | 1.50 | 1370 | 880*880*1350 | 250 |
| CVS-800 | 250-3500 | 5-325 | 1.50 | 1500 | 900*900*1200 | 300 |
| CVS-1000 | 300-4000 | 5-325 | 1.50 | 1500 | 1100*1100*1200 | 350 |
| CVS-1500 | 350-4500 | 5-325 | 2.0 | 1500 | 1600*1600*1200 | 400 |
Features:

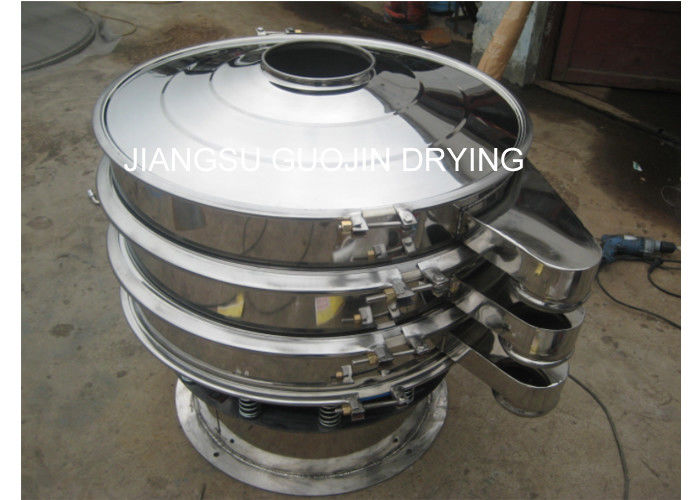

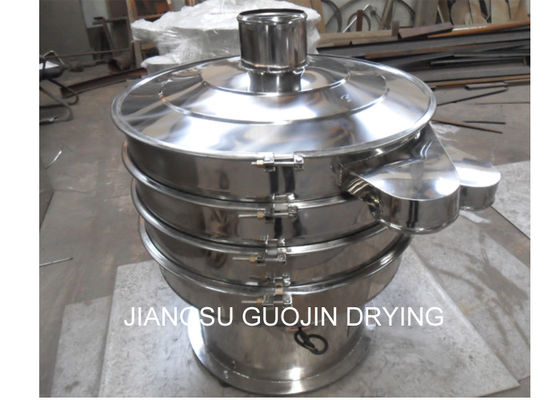

Picture show:
