3500kg/h 325 Mesh 4 Deck Mini Vibrating Screen For Abrasive Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | CVS-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Item Name: | 4 Deck Sand Mini Vibrating Screen For Abrasive Powder | Model Teype: | CVS-800 |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory, Farms, Chemical | Production Capacity: | 250-3500kg/h |
| Mesh: | 5-325 | Motor Power: | 1.50kw |
| Main Shaft Revolution: | 1500r/min | Net Weight: | 300kg |
| Overall Dimensions: | 900x900x1200mm | ||
| Highlight: | 3500kg/h Mini Vibrating Screen,325 Mesh Mini Vibrating Screen,3500kg/h Vibrating Screening Equipment |
||
Product Description
4 Deck Sand Mini Vibrating Screen For Abrasive Powder
Circular rotary vibrating screen belongs to a high precision fine powder separation machine, it designed for classifying, grading, and filtering of wet and dry materials, it suitable for powdery, granular, liquid mucilage.
Application:
1. CVS series vibration sieve is suitable for in line production. It is an ideal device for granule that has uneven size to sieve continuously.
2. The machine consists of hopper, vibration chamber and coupling and motor. There are eccentric wheel, rubber soft parts, man shaft bearing and so on. The adjustable eccentric weight can drive to the central line of main shaft through motor. Under the unstable state, it produces centrifugal force that makes raw material form vortex in the sieve. The size of amplitude of eccentric weight can be regulated in accordance with the different raw materials.
3. The whole structure of machine is compact, small in volume, no dust, low in noise, low in energy consume, convenient in moving and maintenance.
Technical Parameter:
| Model | Product capacity(kg/h) | Mesh | Motor power(kw) | Main shaft revolution(r/min) | Overall dimensions(mm) | Net weight(kg) |
| CVS-365 | 60-500 | 12-200 | 0.55 | 1380 | 540*540*1060 | 100 |
| CVS-515 | 100-1300 | 12-200 | 0.75 | 1370 | 710*710*1290 | 180 |
| CVS-650 | 180-2000 | 12-200 | 1.50 | 1370 | 880*880*1350 | 250 |
| CVS-800 | 250-3500 | 5-325 | 1.50 | 1500 | 900*900*1200 | 300 |
| CVS-1000 | 300-4000 | 5-325 | 1.50 | 1500 | 1100*1100*1200 | 350 |
| CVS-1500 | 350-4500 | 5-325 | 2.0 | 1500 | 1600*1600*1200 | 400 |
Features:

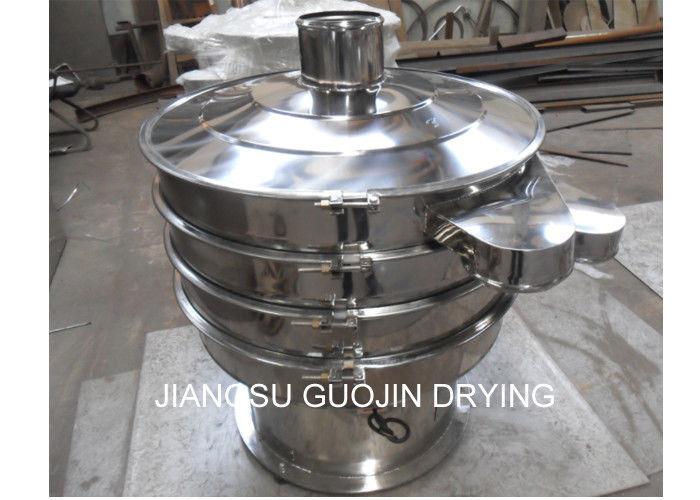

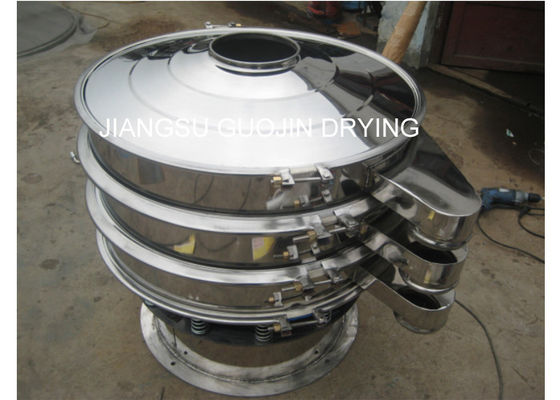

Picture show:
