Foodstuff Scraper Double Drum Dryer 1.5M Diameter For Purple Potato
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | SDD-1500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Foodstuff 1.5M Diameter Scraper Double Drum Dryer For Purple Potato | Application: | Food Processing |
|---|---|---|---|
| Model Diameter: | 1.5Meter | Model Length: | 2Meter |
| Drying Capacity: | 100-300kg/h | Motor Power: | 13 Kw |
| Weight: | 14000kg | Heating Source: | Natural Gas Or Steam |
| Highlight: | Foodstuff Scraper Double Drum Dryer,1.5M Diameter Double Drum Dryer,ISO Purple Potato Rotary Drying Machine |
||
Product Description
Foodstuff 1.5M Diameter Scraper Double drum Dryer For Purple Potato
Drum dryer Pharmaceutical Conductive style drying machine (Drum dryer) (drum drying Equipment) is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.
Product Working Principle
The drum dryer is a continuous operation device that dries the liquid phase material or ribbon material attached to the outer wall of the cylinder by means of heat conduction through a rotating cylinder. The material liquid to be dried flows into the material receiving tank of the drum dryer from the upper tank. The drying drum is driven by the transmission device, and the material is formed by the filming device to form a material film on the wall of the drum. The cylinder is heated continuously, and the moisture of the material film is vaporized by the heat transfer from the cylinder wall, and the material is scraped off by a scraper, and then conveyed to the storage tank through a screw for packaging. It has high thermal efficiency and can be operated continuously, so it is widely used in the drying of liquid materials or strip-shaped materials, and is more suitable for paste-like and viscous materials.
Product Features
1. High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3. Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4. Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
Product Application
This dryer is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry, and etc.
Technical Parameters
| Model | Cylinder size(mm) | Effective heating area(M2) | Drying capacity(kg/h) | Steam consumption(kg/h) | Motor power(kw) | Overal dimension(mm) | Weight(kg) |
| SDD-600 | Ø600*800 | 1.12 | 20-50 | 30-80 | 2.2 | 1700*800*1500 | 850 |
| SDD-700 | Ø700*1000 | 1.65 | 30-70 | 50-100 | 3 | 2100*1000*1800 | 2000 |
| SDD-800 | Ø800*1200 | 2.26 | 40-100 | 60-150 | 4 | 2500*1100*1980 | 3000 |
| SDD-1000 | Ø1000*1400 | 3.30 | 60-150 | 90-230 | 5.5 | 2700*1300*2250 | 6200 |
| SDD-1200 | Ø1200*1500 | 4.24 | 80-200 | 120-300 | 7.5 | 2800*1500*2450 | 8500 |
| SDD-1400 | Ø1400*1600 | 5.28 | 100-250 | 150-400 | 11 | 3150*1700*2800 | 10000 |
| SDD-1600 | Ø1600*1800 | 6.79 | 140-320 | 200-500 | 11 | 3350*1900*3150 | 12000 |
| SDD-1800 | Ø1800*2000 | 8.48 | 170-400 | 250-600 | 15 | 3600*2050*3500 | 14000 |
| SDD-1800A | Ø1800*2500 | 10.60 | 200-500 | 300-750 | 18.5 | 4100*2050*3500 | 15200 |
| SDD-2000 | Ø2000*3000 | 14.10 | 300-700 | 450-1000 | 22.5 | 5000*2500*3600 | 17500 |
| SDD-2500 | Ø2500*3500 | 20.60 | 400-1000 | 600-1500 | 25.5 | 5500*2900*3800 | 20500 |

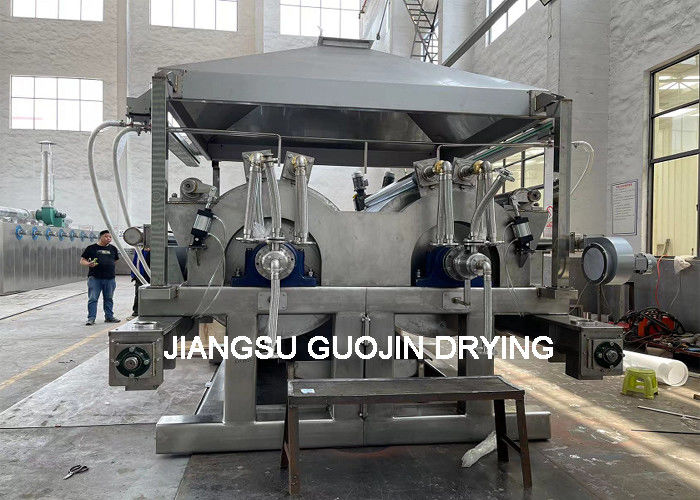

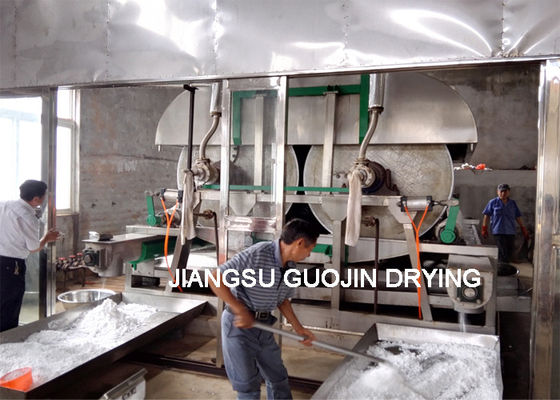

Product Show
electrical, steam, natural gas or other
