High Efficiency Agricultural Waste Rotary Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Rotary Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Ore, Coal Slime, Industry, Sawdust, Wood Chips, Wood Shavings, Rice Straw, Vinasse, Etc |
|---|---|---|---|
| Condition: | New | Voltage: | 380V, 220v/380v, 380V 3Phase 50-60 HZ |
| Power(W): | 15 | Dimension(L*W*H): | 1200*1500*1850, Various |
| Key Selling Points: | Long Service Life | Warranty: | 1 YEAR |
| After-sales Service Provided: | Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis |
| Capacity(t/h): | 4.5-5.7 | Cylinder Volume: | 21.2 |
| Product Name: | Drying Machine | Usage: | Drying |
| Raw Material: | Sand, Wood, Ore, Stone Etc. | Color: | Blue, White,red(as Customer's Requirement) |
| Company Type: | Manufacturer | Weight: | 18.5 |
| Port: | Qingdao | ||
| Highlight: | Agricultural Waste Rotary Drying Machine,Rotary Drying Equipment,5.7t/h Rotary Drum Dryer |
||
Product Description

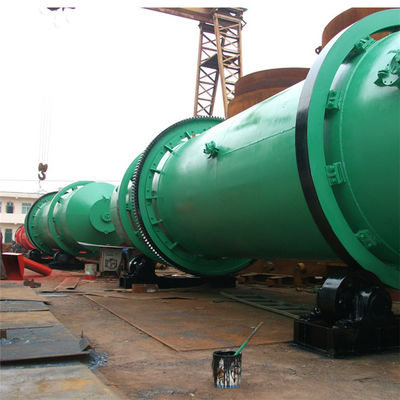

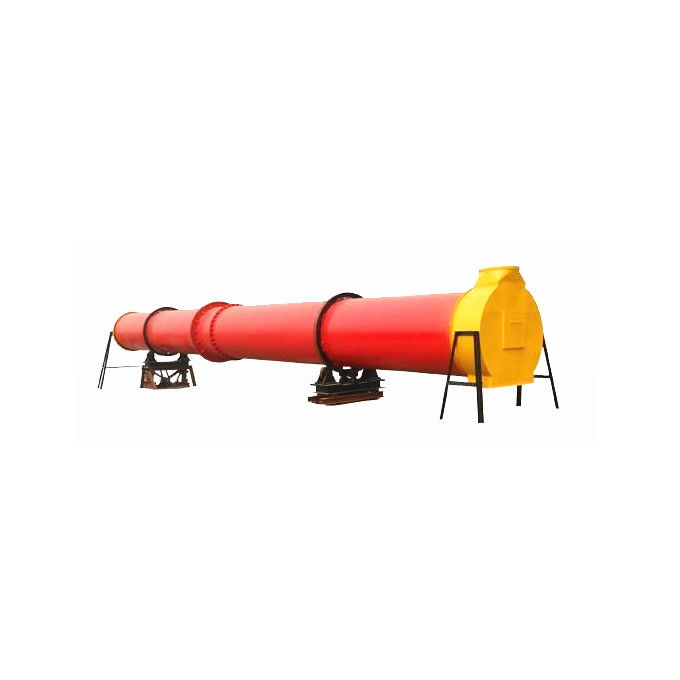

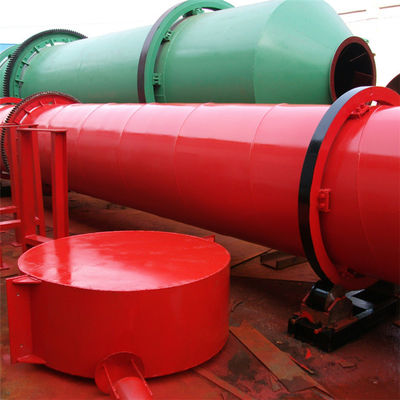

The Agricultural Waste Rotary dryer is suitable for drying magnetic and heavy ore concentrates of metal and non-metal ore and clay in the cement industry and coal slime in the coal industry. It is characterized by high productivity and easy operation. The drum of the drum dryer is a horizontal rotary cylinder. The inside is welded with various types of copyboards with different staggered angles from front to back. The rotary kiln body is inlaid with different types of refractory bricks according to requirements, and the feeding end is prevented from falling. The material is provided with a door ring and a spiral copy board.
Main Features:(Rotary dryer)
1. The dryer designed and produced by the multi-combined lifting device has made various technological innovations on the lifting device system, adopting a new multi-combination lifting device to overcome the "wind tunnel" of the traditional dryer. Phenomenon, high thermal efficiency, coal consumption is reduced by about 20%.
2. Applicable to a variety of combustion furnaces: high temperature boiling furnace, coal powder spraying furnace and manual coal adding furnace.
3. The transmission size gear adopts the pin-replaceable gear, which replaces the traditional cast steel gear, saves cost investment, and greatly reduces the maintenance cost and time.
4, the use of centralized control system, can achieve large-scale enterprise computer central monitoring and management.
5, the production capacity is greater, and can be operated continuously;
6. Simple structure and convenient operation;
7, less failure, low maintenance costs;
8, a wide range of applications, it can be used to dry granular materials, it is also very beneficial for those materials with high adhesion;
9. The operation flexibility is large, and the production yield of the product is allowed to have a large fluctuation range, which does not affect the quality of the product;
10, easy to clean, High Efficiency
|
SIZE(m)
|
Volume (m³)
|
Capacity(t/h)
|
Obliquity (%)
|
Highest inlet air temperature (℃)
|
Power (kw)
|
Total weight(t)
|
|
Φ1.2×8.0
|
9.0
|
1.9~2.4
|
3~5
|
700~800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4~3.0
|
3~5
|
700~800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5~5.7
|
3~5
|
700~800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3~6.6
|
3~5
|
700~800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7~7.1
|
3~5
|
700~800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5~8.1
|
3~5
|
700~800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6~9.5
|
3~5
|
700~800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7~12.2
|
3~5
|
700~800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4~14.2
|
3~5
|
700~800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0~16.2
|
3~5
|
700~800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5~16.9
|
3~5
|
700~800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4~21.7
|
3~5
|
700~800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3~24.1
|
3~5
|
700~800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2~26.5
|
3~5
|
700~800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.4~34.0
|
3~5
|
700~800
|
55
|
73
|
Pre-Sales Service
* Inquiry and consulting support.
* Recommended equipment model and solution.
* Equipment quotation
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
