Mini Rotary Drying Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Rotary Drying Equipment | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Building Materials |
|---|---|---|---|
| Condition: | New | Voltage: | 220v/380v/440v |
| Power(W): | 3-75Kw | Dimension(L*W*H): | Customized |
| Warranty: | 1 YEAR | After-sales Service Provided: | Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, No After-sales Service |
| Name: | Rotary Drum Dryer | Product Name: | Industrial Dryers |
| Material: | 304 Stainless Steel | Usage: | Industrial Usage |
| Raw Material: | Multiple Material | Keywords: | Sand Dryer Machine |
| Item: | Industrial Dehydration Equipment | Function: | Roasting |
| Product: | 20-25 T/h | Weight: | 5-100t |
| Port: | Shanghai/Qingdao/Guangzhou | ||
| Highlight: | Mini Rotary Drying Machine,Industrial Rotary Drying Machine,75Kw Rotary Drying Machine |
||
Product Description
Mini Rotary Drying Machine
Rotary dryer, also called rotating cylinder drying machine, which is mainly used for mineral processing, building materials, metallurgy, chemical, cement industry and other departments drying certain wet degree or the size of material. Rotary dryer is mainly consisting of rotary body, raw material feeding plate, driving and supporting device, etc. Rotary dryer strong adaptability to raw materials can be drying a variety of materials, and the equipment is simple and reliable, so widely used. It is of high efficiency and has the features of reasonable structure, high capacity, low consumption easy operation, etc. It can make final products free from dirt and impurities and reduce the high quality sand loss.
We have different project and design all over the world
Main Features
1. It can use chemical gypsum (Free gypsum dehydration, phosphogypsum etc) to fry β-semi-water gypsum directly.
2. From craft process, guarantee the requests of frying temperature and time which should make precise control in roasting the gypsum.
3. The discharging of work machine is designed rationally, when operation, there is no dust pollution.
4. When interval feeding and discharging, it can be banked fire and shut down furnace. The stove fire can be put into normal production after 3 minutes by again opening furnace.
Working Principle

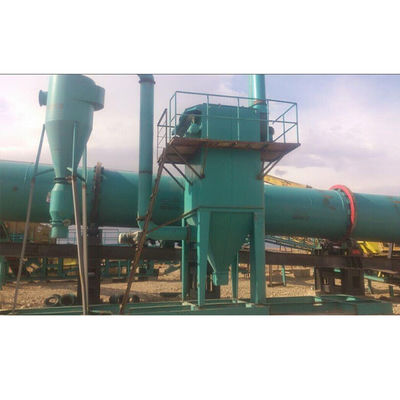

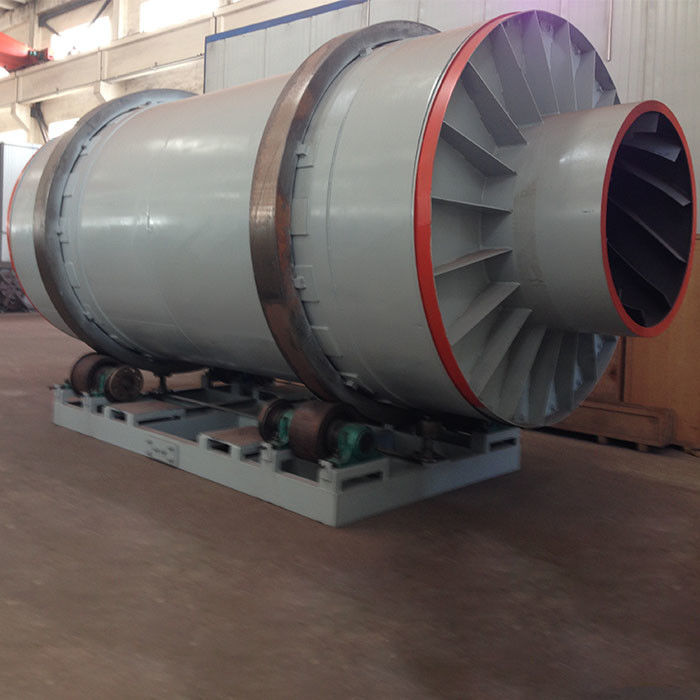

Rotating cylinder dryer is a new type continuous dryer which designed on foundation of absorbing foreign technology. The machine is equipped 3 sets inner barrel. Raw material fed from screw import, under the function of rake and hot air flow, raw material will get enough heat and mass transfer after second deflection. Dried product will be collected by cyclone separator of bag filter, damp air will be exhausted by fan.
|
Model
|
Rotating speed (r/min)
|
Slope (%)
|
Highest temperature (°C)
|
Power (kw)
|
Capacity (t/h)
|
Weight (t)
|
|
Φ0.6*10
|
3.8-5
|
3-5
|
700
|
4
|
0.6-2
|
3.2
|
|
Φ0.8*10
|
3.8-5
|
3-5
|
700
|
4
|
0.8-2.5
|
4.5
|
|
Φ1.0*10
|
3.8-5
|
3-5
|
700
|
5.5
|
1-3.5
|
6
|
|
Φ1.2*12
|
3-4
|
3-5
|
700
|
11
|
2-6
|
14.8
|
|
Φ1.5*10
|
2.8-4
|
3-5
|
700
|
15
|
3-8
|
17.9
|
|
Φ1.5*12
|
2.8-4
|
3-5
|
700
|
15
|
3.5-9
|
22.3
|
|
Φ1.5*15
|
3
|
3-5
|
700
|
18.5
|
3.7-11
|
25.6
|
|
Φ1.8*14
|
2-4
|
3-5
|
700
|
18.5
|
4-13
|
29
|
|
Φ2.2*12
|
2-4
|
3-5
|
700
|
22
|
6-15
|
33
|
Rotary drum dryer Instruction:
Rotary drier is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
Rotary drum dryer Structure:

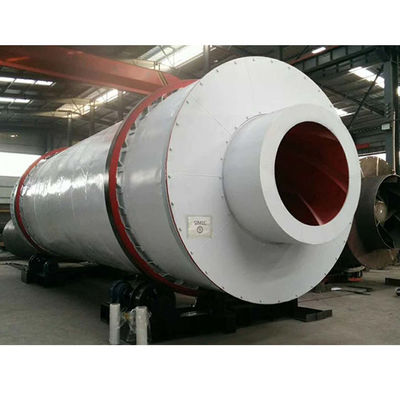

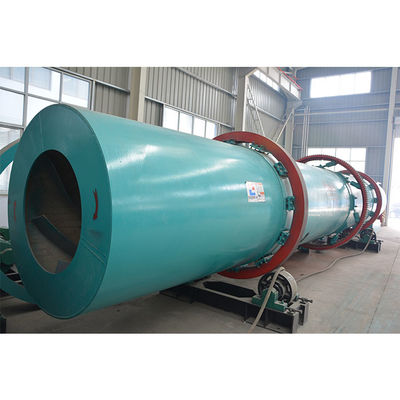

Rotary drier machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
1, How to pay to you ?
We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines or Components, it would be 2-7 days; For non-standard machines and customized machines according to clients
specific requirements, it would be Appointment time.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
The nearest port to us is Qingdao Port.
4, How about your product after-sales service?
Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service.Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver.
