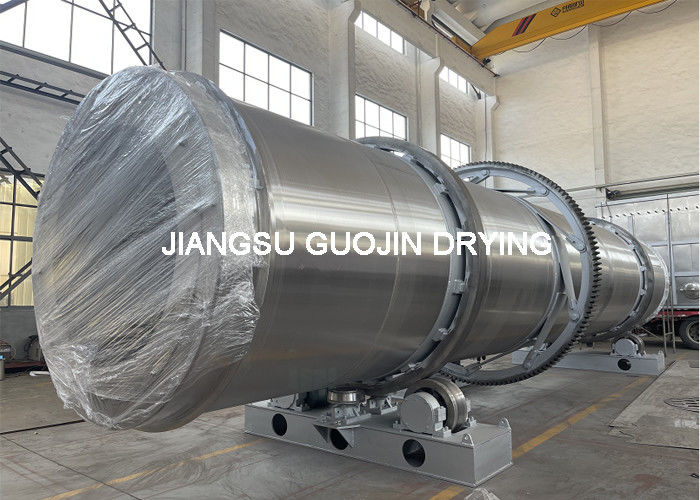

Fertilizer Rotary Drum Dryer 10 Tons Per Hour Large Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HG2x20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 20 Tons Per Hour Large Capacity Rotary Drum Dryer For Fertilizer | Application: | Industry Processing |
|---|---|---|---|
| Item: | 2x20M | Productive Capacity: | 10tons Per Hour |
| Driving Power: | 22KW | Heating Source: | Gas Or Steam |
| Revolution: | 0.6-6r/min | Install Angle: | 3-5 Degree |
| Highlight: | 10 Tons/Hour Fertilizer Rotary Drum Dryer,Rotary Drum Dryer 6r/min,ISO Industry Processing Rotary Drying Machine |
||
Product Description
10 Tons per hour Large Capacity Rotary Drum Dryer For Fertilizer
RD type rotary dyrer is a kind of drying equipment with large handle capacity and can for continuous production.
It consists of heat system, feeding device, rotary drum, driving device, discharge part and dust catcher etc.
This dryer have a big capability with wide application, and with small flow resistance, permit wide scope in operation, and easy to operate,
humidity of product can less than 1% after drying.
Product Features
| 1. International standard with ISO, CE certificate. |
|
2. Simple system, safe and easy operation. |
|
3. Flexibility in fuels used (NG, Oil, Coal ect.). |
|
4. Year of experience with all types of dryers. |
|
5. Capable of installation anywhere in world. |
|
6. In house engineering for custom fit applications. |
|
7. Proven design. |
Product Working Principle
when the damp raw material is fed from one teminal, it is turned over through blades that are distributed inside the cylinder and
will be distributed uniformly in the drier and contact fully with the counter current hot air. In this way, the process of heat conduction
is increased. During the period of dry, under the effect of incine blades and hot air stream, raw material can be moved to drier and
discharged from discharged form discharging valve.
Product Application
Powder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc.
Biomass material: Sawdust, wood chips etc.
Technical Parameters
| Item | Productive capacity(t/h) | Revolution(r/min) | Motor power(kw) | Install angle(o) | Temp. of final |
| Ø1.0x5.0 | 0.5-1.2 | 0.6-6 | 4 | 3-5 | <1.5% |
| Ø1.2x6-10 | 1.5-3 | 0.6-6 | 5.5 | 3-5 | <1.5% |
| Ø1.5x12-18 | 3-5.5 | 0.6-6 | 15 | 3-5 | <1.5% |
| Ø1.8x12-18 | 5-6.5 | 0.6-6 | 18.5 | 3-5 | <1.5% |
| Ø2.2x12-22 | 7-12 | 0.6-6 | 22 | 3-5 | <1.5% |
| Ø2.4x15-20 | 9-15 | 0.6-6 | 30 | 3-5 | <1.5% |
| Ø3.0x25 | 16 | 0.6-6 | 55 | 3-5 | <1.5% |
Product Flowchart

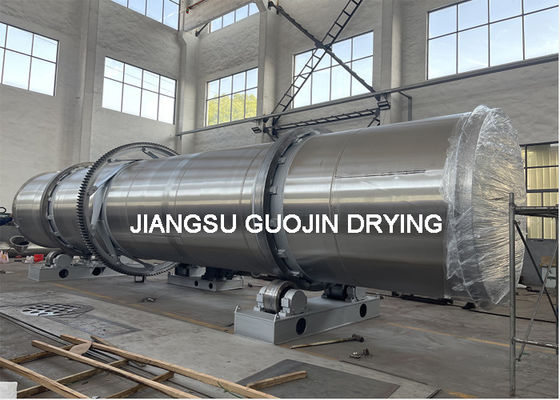

Production Show
electrical, steam, natural gas or other
| 1.International standard with ISO, CE certificate. |
|
2.Simple system, safe and easy operation. |
|
3.Flexibility in fuels used (NG, Oil, Coal ect.). |
|
4.Year of experience with all types of dryers. |
|
5.Capable of installation anywhere in world. |
|
6.In house engineering for custom fit applications. |
|
7.Proven design. |
