Easy Operation Direct Heating Rotary Drum Dryer For Sewage Sludge
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HG2x20M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Easy Operation Direct Heating Rotary Drum Dryer For Sewage Sludge | Application: | Medicine Processing, Chemicals Processing, Industry Processing |
|---|---|---|---|
| Item: | 2x20 Meters | Productive Capacity: | 12000 Kg/h |
| Driving Power: | 22 KW | Final Temperature: | < 1.5% |
| Drying Type: | Continous Drying | Heating Source: | Gas Or Others |
| Highlight: | Direct Heating Rotary Drum Dryer,Sewage Sludge Rotary Drum Dryer,12000kg/h Rotary Drying Machine |
||
Product Description
Easy Operation Direct Heating Rotary Drum Dryer For Sewage Sludge
Drum drying equipment is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.
Product Features
| 1.International standard with ISO, CE certificate. |
|
2.Simple system, safe and easy operation. |
|
3.Flexibility in fuels used (NG, Oil, Coal ect.). |
|
4.Year of experience with all types of dryers. |
|
5.Capable of installation anywhere in world. |
|
6.In house engineering for custom fit applications. |
|
7.Proven design. |
Product Process Flow
After being fed into the hopper, under the function of gravity the raw material will fall onto the belt conveyor laid under the bottom of the hopper, and then which will be conveyed onto the screening machine, the massive, strip and other irregular material will be separated out after screening, and uniform particles will be conveyed to the feeding end of the dryer (The single cylinder or three cylinder dryer will be chosen as per the service condition) by the belt conveyor under the screening machine. The feeding end of the dryer is connected with heat source and the discharging end is linked with pulse air pipes. The fire wall will be setted up in the hot blast stove in order to guarantee the safety of the drying process, to eliminate the phenomenon of material burning in the dryer, and the heat passing through pipe will be installed between the hot blast stove and the dryer as the section of heat buffer. The material will brought into the diameter-transformed pulse pipe after being dried and the dehydration for the first time inside of the dryer, which will be in a suspended boiling form at the large diameter of the pulse pipe, and then it will be quickly dried after contacting with the exhausted heat wind from dryer. And the material will be driven out of the pulse pipe by strong winds and moved into the first stage cyclone collector when its water content reaches the design requirement, and 80% of dried material will be collected, and then get into the second stage cyclone collector after passing through the induced draft fan to collect the left material. The second stage cyclone collector can be replaced by the bag type dust collector.
Product Application
Powder & particle: Sands, limestone, stones, clay, mineral filter cake, coal, iron sulphate, filter cakes, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, Kaolin etc.
Corrosive material: Distillers ‘grains, Fertilizer, animal dung, slag etc.
Biomass material: Sawdust, wood chips etc.
Technical Parameters
| Item | Productive capacity(t/h) | Revolution(r/min) | Motor power(kw) | Install angle(o) | Temp. of final |
| Ø1.0x5.0 | 0.5-1.2 | 0.6-6 | 4 | 3-5 | <1.5% |
| Ø1.2x6-10 | 1.5-3 | 0.6-6 | 5.5 | 3-5 | <1.5% |
| Ø1.5x12-18 | 3-5.5 | 0.6-6 | 15 | 3-5 | <1.5% |
| Ø1.8x12-18 | 5-6.5 | 0.6-6 | 18.5 | 3-5 | <1.5% |
| Ø2.2x12-22 | 7-12 | 0.6-6 | 22 | 3-5 | <1.5% |
| Ø2.4x15-20 | 9-15 | 0.6-6 | 30 | 3-5 | <1.5% |
| Ø3.0x25 | 16 | 0.6-6 | 55 | 3-5 | <1.5% |
Product Flowchart

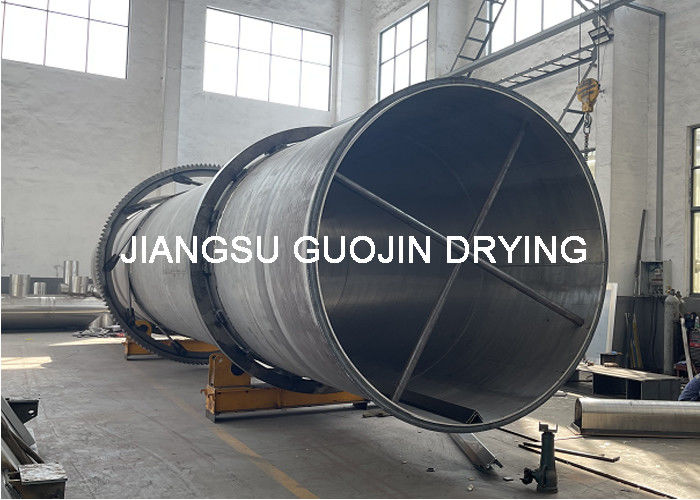

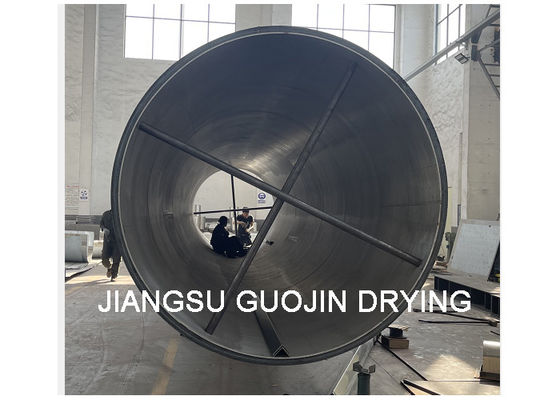

Production Show
electrical, steam, natural gas or other
| 1.International standard with ISO, CE certificate. |
|
2.Simple system, safe and easy operation. |
|
3.Flexibility in fuels used (NG, Oil, Coal ect.). |
|
4.Year of experience with all types of dryers. |
|
5.Capable of installation anywhere in world. |
|
6.In house engineering for custom fit applications. |
|
7.Proven design. |
