Chicken Manure Rotary Drum Dryer Large Processing Capacity
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | RD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Large Processing Capacity Chicken Manure Rotary Drum Dryer Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing |
|---|---|---|---|
| Item: | 1.8*12M | Productive Capacity: | 0.5-50t/h |
| Revolution: | 0.6-6r/min | Install Angle: | 3-5 |
| Final Temperature: | < 1.5% | Drying Type: | Continous Drying |
| Heating Source: | Electrical, Steam, Natural Gas Or Other | ||
| Highlight: | Chicken Manure Rotary Drum Dryer,6r/min Rotary Drum Dryer,Continous Rotary Drying Machine 4kw |
||
Product Description
Large Processing Capacity Chicken Manure Rotary Drum Dryer Machine
The rotary drum dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with a heated gas. rotary drum dryer is suitable to dry metallic and nonmetallic mineral, clay in cement industrial and coal slime in coal mine,etc. rotary drum dryer can be widely used to dry various materials, and it is simple to be operated.
Product Features
1.The distribution and angle of the lifting plate of the rotary dryer are reasonable and the performance is reliable, so the heat energy utilization rate is high and the drying is uniform.
2.The rotary dryer has a large processing capacity, low fuel consumption, and low drying cost.
3.The rotary dryer equipment adopts a self-aligning tug structure, and the tug and the rolling ring cooperate well, which greatly reduces wear and power consumption.
4.The dryer has the characteristics of high temperature resistance and can quickly dry materials with high temperature hot air. The scalability is strong and the design takes into account the production margin.
Product Working Principle
The rotary dryer is mainly composed of a rotating body, a lifting plate, a transmission device, a supporting device and a sealing ring. The dried wet material is sent to the hopper by a belt conveyor or a bucket elevator, and then fed through the hopper through the feeding pipe into the feed end. The slope of the feeding pipe is greater than the natural inclination of the material so that the material flows smoothly into the dryer. The dryer cylinder is a rotating cylinder that is slightly inclined to the horizontal. The material is added from the higher end, the heat carrier enters from the lower end, and is in countercurrent contact with the material, and the heat carrier and the material are simultaneously flowed into the cylinder. As the rotating material of the cylinder is moved by gravity to the lower end. During the forward movement of the wet material in the cylinder body, the heat supply of the heat carrier is directly or indirectly obtained, so that the wet material is dried, and then sent out at the discharge end through a belt conveyor or a screw conveyor.
Product Application
Rotary Dryers have many applications but are most commonly seen in the mineral industry for drying sands, limestone, stones and soil, ores, fertilizers, wood chips, coal, iron sulfate, filter cakes, sewage sludge, etc.
Technical Parameters
| Item | Productive capacity(t/h) | Revolution(r/min) | Motor power(kw) | Install angle(o) | Temp. of final |
| Ø1.0x5.0 | 0.5-1.2 | 0.6-6 | 4 | 3-5 | <1.5% |
| Ø1.2x6-10 | 1.5-3 | 0.6-6 | 5.5 | 3-5 | <1.5% |
| Ø1.5x12-18 | 3-5.5 | 0.6-6 | 15 | 3-5 | <1.5% |
| Ø1.8x12-18 | 5-6.5 | 0.6-6 | 18.5 | 3-5 | <1.5% |
| Ø2.2x12-22 | 7-12 | 0.6-6 | 22 | 3-5 | <1.5% |
| Ø2.4x15-20 | 9-15 | 0.6-6 | 30 | 3-5 | <1.5% |
| Ø3.0x25 | 16 | 0.6-6 | 55 | 3-5 | <1.5% |

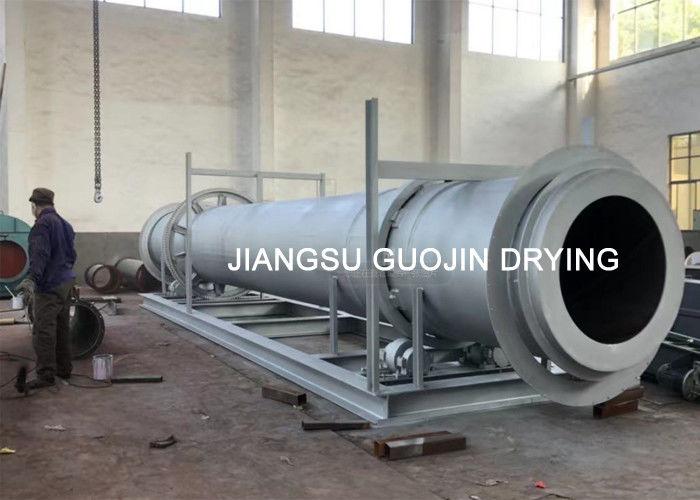

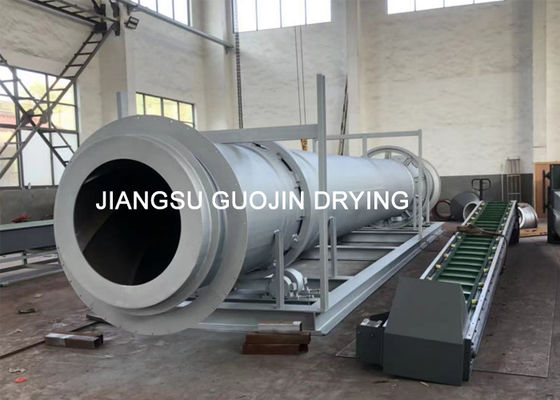

Production Show
electrical, steam, natural gas or other
