0.3-3mm Particle Size Industrial Pigment Powder Coulter Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HPM-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 0.3-3mm Particle Size Industrial Pigment Powder Coulter Mixer | Application: | Medicine Processing, Chemicals Processing |
|---|---|---|---|
| Model Type: | HPM - 1 | Mixed Amount: | 400kg-600kg/batch |
| Equipped Power: | 23kw | Weight: | 1800kg |
| Heating Source: | Electricity,gas | ||
| Highlight: | 23kw Pigment Powder Coulter Mixer,ISO Approved Horizontal Plough Mixer |
||
Product Description
0.3-3mm Particle Size Industrial Pigment Powder Coulter Mixer

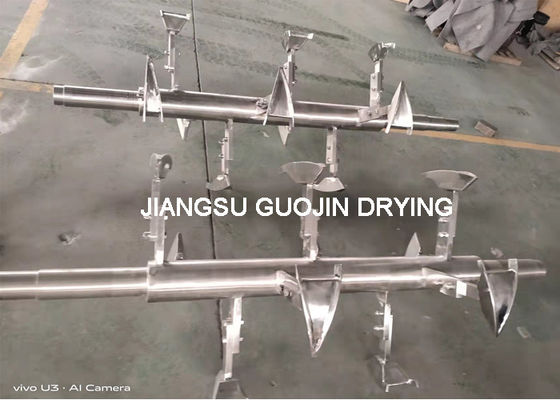

1) horizontal plough mixer consists of U-shaped containers, plough mixing blade and transmission components.
2) The ribbon including continuous and disconnect.
3) The helical ribbon blade is made of a double or triple outer spiral the mateial from both sidesbrings together the central inner spiral the material transported from teh center to the sides to form a stream mixed.
Product Working Performance
1) Adding a liquid and pasty materials mixed in the plough mixer for viscous of cohesive ganule mixing and granule has a good effect, cylinder cover can be made of a wide-open door, so that the equipment for cleaning.
2) Can be added to the mixer barrel outer jacket, cooling or heating of the material is achieved by injecting the cooling medium to the jacket.
3) Discharge in the form of a phenomenon of material accumulation and mixing dead ends, reliable trim seal, frequent switching lakage.
Technical Parameters
| Model | HPM-1 |
| Mixed a mount/batch(kg) | 400-600 |
| Equipped power(kw) | 23 |
| Weight(kg) | 1800 |

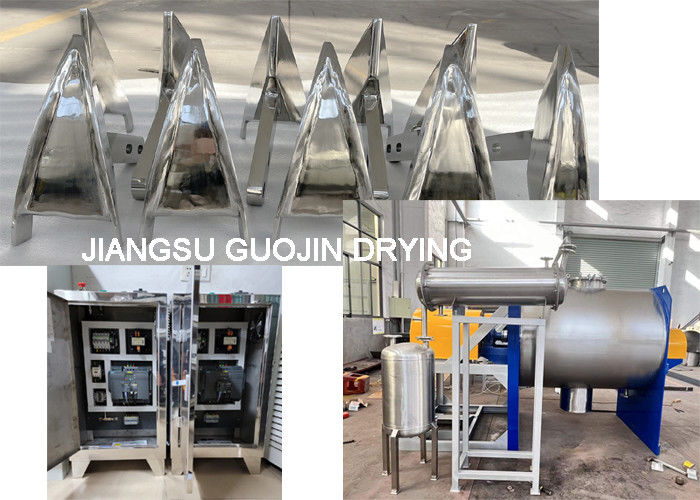

Product Show
