DSPM Series Dual Shaft Paddle Mixer With Two Stirring Shafts Blender
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DSPM-0.05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | DSCM Series Dual Shaft Paddle Mixer With Two Stirring Shafts Blender | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | DSPM-0.05 | Mixing Amount: | 24-30kg/batch |
| Equipped Power: | 2.2kw | Weight: | 250kg |
| Mixing Type: | Batch Mixing | Heating Source: | Electrical |
| Highlight: | mixing equipment,blending machine |
||
Product Description
DSCM Series Dual Shaft Paddle Mixer With Two Stirring Shafts Blender
It is suitable for the mixing of solid-solid(powder and powder),solid-liquid (adding a small amount of liquid into the powder) and some compound technology. Process such as granulating wet particle and drying, especially it is suitable for the mixing of viscous material or glue 一 like additive.
Technical Parameters
| Model | DSPM-0.05 | DSPM-0.1 | DSPM-0.3 | DSPM-0.5 | DSPM-1 | DSPM-2 | DSPM-3 | DSPM-4 | DSPM-6 |
| Mixed amount/batch(kg) | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
| Equipped power(kw) | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-15 | 15-18.5 | 18.5-22 | 22-30 | 30-37 |
| Weight(kg) | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6600 |
Product Work Principle
This series of mixers are characterized by strong and efficient mixing. The two stirring shafts in the horizontal cylinder rotate in opposite directions at the same speed. The specially arranged blades on the shaft ensure the radial, circumferential and axial movements of the materials, forming a compound cycle and achieving uniform mixing in a very short time.

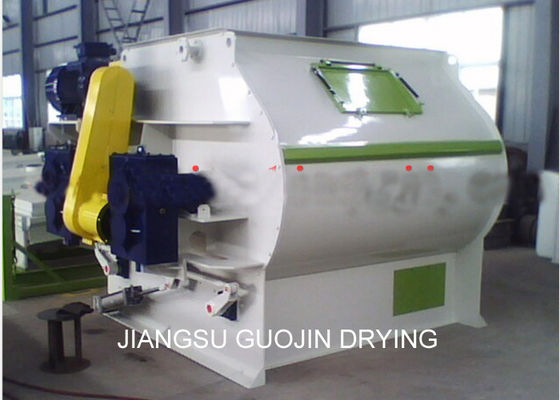

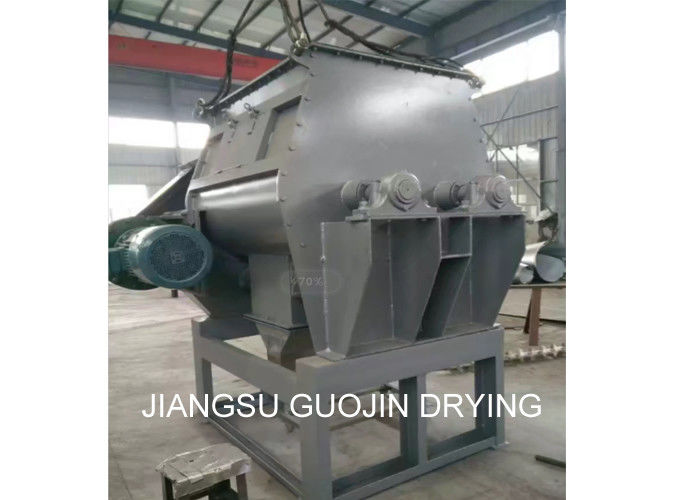

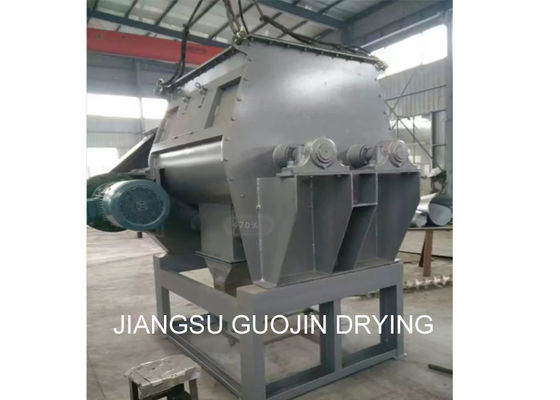

Product Show
electrical, steam, natural gas or other
