Food Grade Groove Horizontal Ribbon Blender 0.75M3
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | GTM-750 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Food Grade Groove Horizontal Ribbon Powder Blender | Model Type: | GTM-750 |
|---|---|---|---|
| Application: | Medicine Processing, Chemicals Processing, Food Processing | Total Volume: | 0.75M3 |
| Feed Amount: | 150kg/batch | Stirring Speed: | 19rpm |
| Mixing Power: | 7.5kw | Discharge Power: | 2.2kw |
| Overall Dimension: | 2300x1260x800mm | Heating Source: | Electrical |
| Highlight: | Groove Horizontal Ribbon Blender,Food Grade Horizontal Ribbon Blender,Horizontal Ribbon Mixer 0.75M3 |
||
Product Description
Food Grade Groove Horizontal Ribbon Powder Blender
Groove type mixer is suitable for mixing different advocate complementary material in chemical, food and other industrial department , it applies to mix semi-solid machine for the whole machine frame, transmission system is flexible, smooth operation, the part is surfaces which may touch the mixing materials are made of stainless steel, has the good corrosion resistance, can maintain the quality of mixed materials, no pollution, no discoloration.The transmission mechanism mainly uses the pot wheel, the pot rod, the gear transmission. Whiling using, it does not have the big noise, has the sufficient oil storage quantity, can obtain the good lubrication, and enhances the machine service life.The machine is controlled by electrical equipment, easy to operate and adopts automatic spot-feeding, which reduces the labor intensity of the operator.
Prodcut Working Principles and Features
1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.
2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.
3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed without contaminant material.
4. When jogging is used, it is easy to discharge, and it will not cause the phenomenon that the hopper tilts too much. The left end of the machine rotates. Because the worm wheel and the worm drive have self-locking effect, the mixing box can be dumped at any angle.
5. Add the raw material to the cylinder at one time, dry it for a period of time, add the adhesive or spray the liquid, or add the raw material and the adhesive to the working container at one time, and mix it into the ideal soft material.
Technical Parameters
| Type | Total volume(m3) | Feed amount(kg/batch) | Overall dimension(mm) | Stirring speed(rpm) | Power formxing(kw) | Power for discharge(kw) |
| 150 | 0.15 | 30 | 1480*1190*600 | 24 | 3 | 0.55 |
| 200 | 0.2 | 40 | 1480*1200*600 | 24 | 4 | 0.55 |
| 300 | 0.3 | 60 | 1820*1240*680 | 24 | 4 | 1.5 |
| 500 | 0.5 | 120 | 2000*1240*720 | 20 | 5.5 | 2.2 |
| 750 | 0.75 | 150 | 2300*1260*800 | 19 | 7.5 | 2.2 |
| 1000 | 1.0 | 270 | 2500*1300*860 | 19 | 7.5 | 3 |
| 1500 | 1.5 | 400 | 2600*1400*940 | 14 | 11 | 3 |
| 2000 | 2 | 550 | 3000*1500*1160 | 12 | 11 | 4 |
| 2500 | 2.5 | 630 | 3500*1620*1250 | 12 | 15 | 5.5 |
| 3000 | 3 | 750 | 3800*1780*1500 | 10 | 18.5 | 5.5 |
This machine is used for mixing the powdery or pastel supplies, making the material of different qualities, its characteristic is that the type of mix is horizontal groove-type thick liquid, mix thick liquid as coherent axle, easy to wash. The parts contacting with the material are all made of stainless steel.

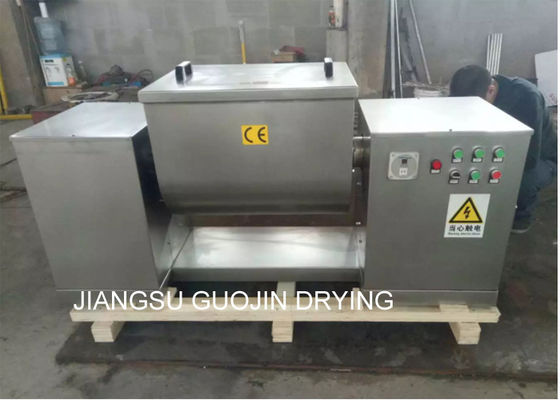

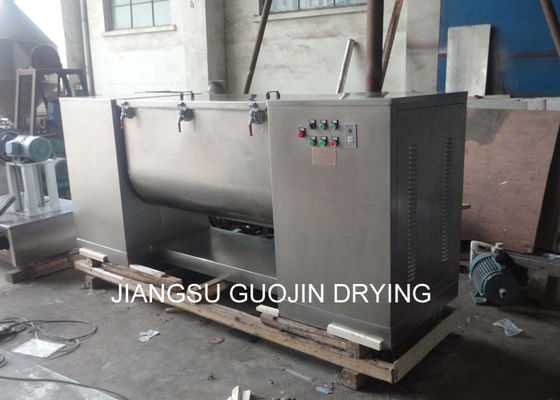

Product Show
electrical, steam, natural gas or other
