8Meters Length Vibrating Fluid Bed Dryer Energy Saving For Sugar
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | ZLG-1.2x8M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 8Meters Length Energy Saving Vibrating Fluid Bed Drying Machine For Sugar | Model Type: | ZLG-1.2x8M |
|---|---|---|---|
| Application: | Foodstuff Processing | Area Of Fluidzed Bed: | 9M2 |
| Water Evaporation: | 200-280kg/H | Vibration Motor Model: | YZS50-6 |
| Vibration Motor Power: | 3.7x2KW | Heating Source: | Steam, Electricity, Gas And So On |
| Highlight: | 8M Length Vibrating Fluid Bed Dryer,Sugar Vibrating Fluid Bed Dryer,200kg/H Fluid Bed Equipment |
||
Product Description
8Meters Length Energy Saving Vibrating Fluid Bed Drying Machine for Sugar
The vibration is created by motor. Lt is stable in operation and convenient in maintenance, low noise and long life.
High Effection, raw material is heated evenly and heat exchange is fully
used and dry capacity is high. Compared with ordinary drier, the energy can
be saved about 30%.
It is good in regulation and wide in suitablity. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuos variable speed.
It is small for danaging the surface of raw material. The equipment can be
used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomaly shape.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
Fluid Bed Dryer Flow

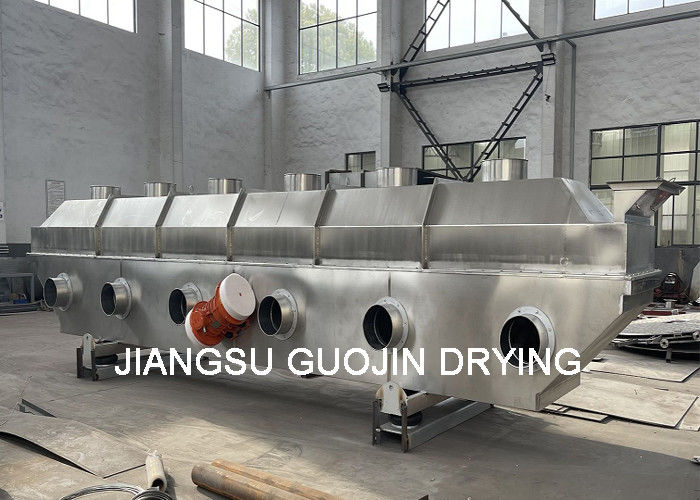

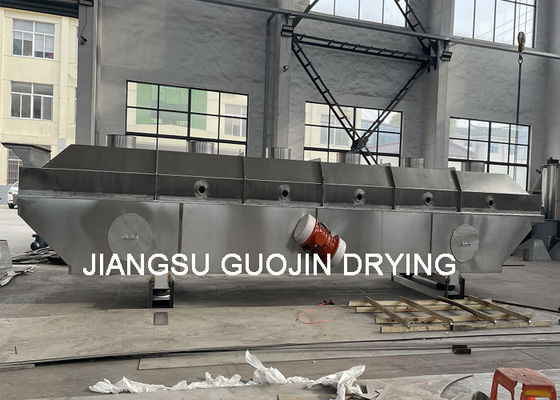

Fluid Bed Dryer Show
