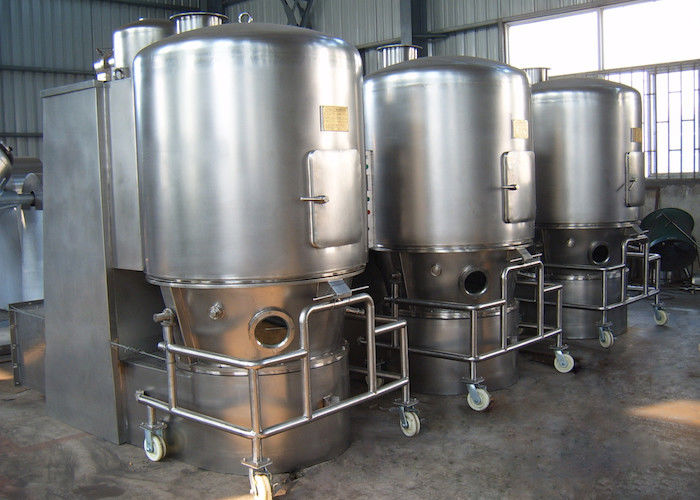

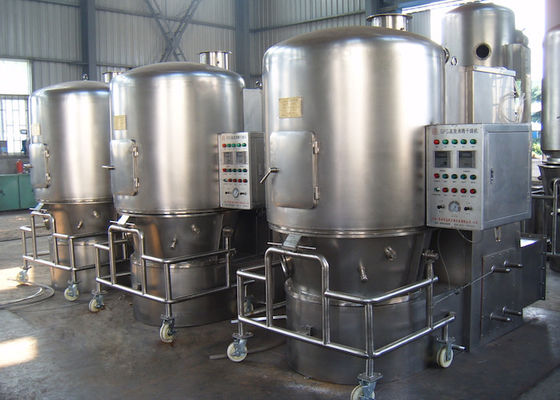

Detachable Food / Feed Stuff Vertical Fluid Bed Dryer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Product Name: | Fluid Bed Dryer/fluid Bed Technology | Feature: | Detachable |
|---|---|---|---|
| Application: | Foodstuff | Feeding Mode: | Automatic Feeding |
| Dust-eliminating Mode: | By Bag Filter | Working Type: | Batch Type |
| Feeding Capacity: | 60 | Power Of Fan: | 11 Kw |
| Stirring Speed: | 11rpm | Stirring Power: | 0.55kw |
| Highlight: | Vertical Fluid Bed Dryer Machine,Detachable Fluid Bed Dryer Machine,Vertical Fluidized Bed Spray Granulation |
||
Product Description
Detachable Food / Feed Stuff Vertical Fluid Bed Dryer Machine
Application
1. Use screw to extrude and vibrate granule and granulate granule with the method of humidity, high speed and mixing;
2. detachable foodtuff fluid bed technology for low space is Suitable for drying humidity block or powder raw materials in fields such as pharmaceutical, foodstuff, feed stuff, chemical industries and so on.
3. The raw material that large in granule and small in block and having adhesive property;
4. detachable foodtuff fluid bed technology for low space is Suitable for raw materials, its volume will be changed when dry, such as giant arum, polyacrylamide, etc.
Principle of working
After being purified and heated, air is introduced from the bottom of induced-draft fan and passed through the screen plate of batch hopper. In drying chamber, the state of fluidzation is formed through stirring and the effect of negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Features
1. detachable foodtuff fluid bed technology for low space is in round structure. So it avoid died corner.

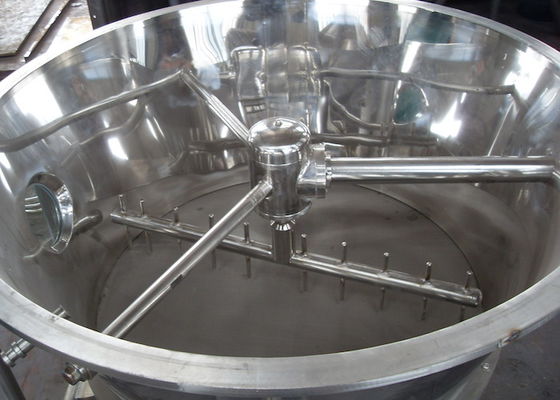

2. In the bed there is stirrer. It avoid agglomeration of damp material and forming channel flow during drying.
3. The bag filter at top is made from anti-static special fiber. The operation is safe.
4. Discharged by turning over. It is quick, and fully.
5. Operated at sealed negative pressure and designed by GMP
6. The machine can also be designed to feeding and discharge automatically in accordance with requirements.
7. Quick drying speed, uniform temperature. In general, the drying time each batch is about 20 ～ 30 minutes.
Technical parameters
| Item | Unit | Specification | ||||||||
| Feeding capacity | kg /batch | 60 | 100 | 120 | 150 | 200 | 300 | 500 | ≥800 | |
| Power of fan | kw | 11 | 15 | 18.5 | 22 | 22 | 30 | 37 | By URS | |
| Stirring power | kw | 0.55 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Stirring speed | rpm | 11 | ||||||||
| consumption of steam | kg/h | 141 | 170 | 170 | 240 | 282 | 366 | 451 | ||
| working time | min | 15-40(Decided according to raw material | ||||||||
| Height of main machine | Square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 | |
| Round | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | ||
All datas are for reference only. According to the features of material, our factory has the right change but not notice, pardon!
