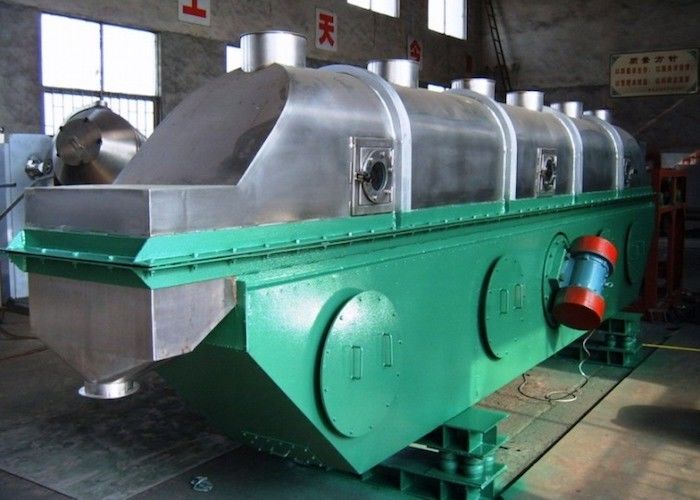

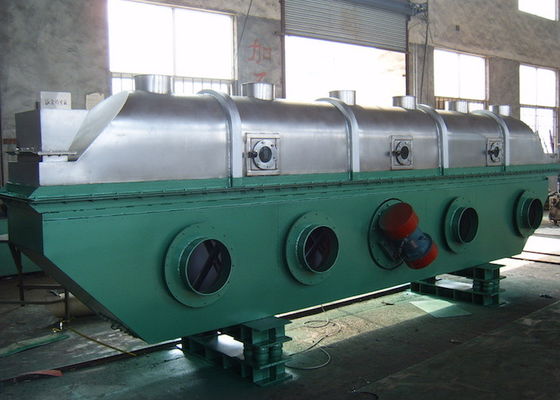

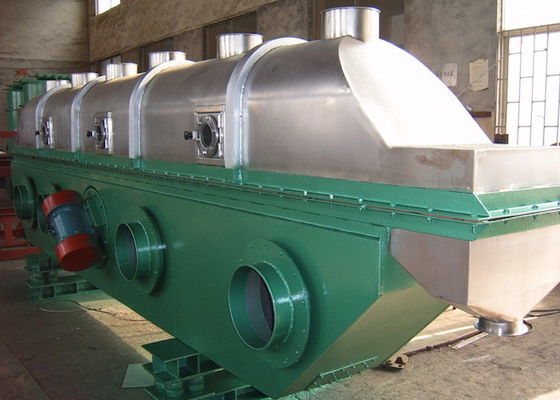

Granules Vibrating Continuous Fluid Bed Dryer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE;ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Product Name: | Continuous Fluid Bed Dryer | Drying Type: | Continuous Type |
|---|---|---|---|
| Application: | Granules/powder | Material: | Salt,grain/bread Crumb |
| Dusting Type: | Bag Filter/cyclone | Feature: | Vibrating |
| Power(kw): | 0.8×2 | Vapor Capacity (kg/h): | 20-35 |
| Air Outlet Temperature(℃): | 40-70 | Air Inlet Temperature(℃): | 70-140 |
| Highlight: | Vibrating Fluid Bed Dryer Machine,Continuous Fluid Bed Dryer Machine,Granules Fluid Bed Dryer Machine |
||
Product Description
Granules Vibrating Continuous Fluid Bed Dryer Machine
Application
1. Pharmaceutical and chemical industries: all kinds of press tablet and granule, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on.
2. Foodstuff and construction material industries: less, mono sodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on.
3. ZLG Series Continuous Type Vibrating Fluid Bed Dryer for granules drying can also used for raw materials to add up damp or cooling and so on.
Principle of work
Raw material is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster and the dry raw material is discharged through discharge outlet.
Features
1. Evenly heating. Compared with ordinary drier, the energy can be saved about 30%.
2. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life
3. The fluidized state is stable and no dead angle and phenomenon of broken out.
4. The layer thickness and moving speed and the amplitude are adjustable through continuos variable speed.
5. Continuous Type Vibrating Fluid Bed Dryer for granules drying is small for damaging the surface of raw material. for easy-broken materials.
6. No cross pollution between raw material and air because of fully closed structure. The environment clean.
Overall dimension
| Model | A(length) | B | C | D | E | F | Weight |
| ZLG3×0.30 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| ZLG4.5×0.30 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| ZLG4.5×0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| ZLG4.5×0.60 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| ZLG6×0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| ZLG6×0.60 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| ZLG6×0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| ZLG6×0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| ZLG7.5×6.0 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| ZLG7.5×0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| ZLG7.5×0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
Technical parameters
| Model | Area of fluidized-bed(m2) | air inlet temperature(℃) | Air outlet Temperature(℃) |
Vapor Capacity (kg/h) |
Vibration motor | |
| Model | Power(kw) | |||||
| ZLG3×0.30 | 0.9 | 70-140 | 40-70 | 20-35 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.30 | 1.35 | 70-140 | 40-70 | 35-50 | ZDS31-6 | 0.8×2 |
| ZLG4.5×0.45 | 2.025 | 70-140 | 40-70 | 50-70 | ZDS32-6 | 1.1×2 |
| ZLG4.5×0.60 | 2.7 | 70-140 | 40-70 | 70-90 | ZDS32-6 | 1.1×2 |
| ZLG6×0.45 | 2.7 | 70-140 | 40-70 | 80-100 | ZDS41-6 | 1.5×2 |
| ZLG6×0.60 | 3.6 | 70-140 | 40-70 | 100-130 | ZDS41-6 | 1.5×2 |
| ZLG6×0.75 | 4.5 | 70-140 | 40-70 | 120-140 | ZDS42-6 | 2.2×2 |
| ZLG6×0.9 | 5.4 | 70-140 | 40-70 | 140-170 | ZDS42-6 | 2.2×2 |
| ZLG7.5×6.0 | 4.5 | 70-140 | 40-70 | 130-150 | ZDS42-6 | 2.2×2 |
| ZLG7.5×0.75 | 5.625 | 70-140 | 40-70 | 150-180 | ZDS51-6 | 3.0×2 |
| ZLG7.5×0.9 | 6.75 | 70-140 | 40-70 | 160-210 | ZDS51-6 | 3.0×2 |
| ZLG7.5×1.2 | 9 | 70-140 | 40-70 | 200-260 | ZDS51-6 | 3.0×2 |
Part of drying sample(for reference only)
| Material name | Material shape | Initial moisture(%) | Final moisture(%) | Unit Input capacity(kg/m2.h) |
| citric acid | granule | 2.5 | 0.5 | 200 |
| MSG | powder | 5 | 0.3 | 200 |
| Flow amine | granule | 3.01 | 0.28 | 700 |
| Borax | granule | 4.1 | 0.3 | 900 |
| Premier acid | acicular crystalloid | 9.25 | 0.15 | 180 |
| hank stretching | granule | 6.5 | 0.2 | 500 |
| cellulose(CMC) | cotton-shaped | 35 | 3.6 | 80 |
| NPK | globularity | 24.4 | 5.5 | 280 |
| silica pigment; | paste | 78.6 | 11.8 | 100 |
| oxalic acid | granule | 6.2 | 0.1 | 700 |
| Plastic Granules | granule | 3.7 | 0.01 | 300 |
| prepared slices of chinese crude drugs | tablet | 58 | 4 | 40 |
| potassium permanganate | granule | 3.7 | 0.15 | 500 |
| aspirin | powder | 3.1 | 0.1 | 600 |
| calcium magnesium fertilizer | powder | 11.1 | 0.35 | 400 |
| Soybean meal | tablet | 16.8 | 12.5 | 1000 |
| bentonite | powder | 20.5 | 0.5 | 500 |
| soybean | shot structure | 12.2 | 10.9 | 1200 |
| active floridin | powder | 43.7 | 17.9 | 180 |
| maize germs | granule | 55 | 5 | 50 |
| halves of a bean | tablet | 18.9 | 13 | 1100 |
| match | strip | 46.9 | 8 | 100 |
| tea leaf | strip | 15 | 7.4 | 300 |
| ethyl alcohol | granule | 74 | 8.2 | 50 |
| Tobacco Stem | filiform | 30 | 14 | 200 |
| bait | strip | 28 | 6.9 | 150 |
| pearl powder | powder | 9.1 | 0 | 450 |
| washing powder | powder | 10 | 1.75 | 300 |
| catalytic agent | granule | 25.5 | 2.3 | 100-300 |
| refined salt | granule | 1.85 | 0 | 2400 |
| polyethylene | powder | 21 | 0.06 | 120 |
| PVC | powder | 12.8 | 0.29 | 150 |
| starch | powder | 43.4 | 13.2 | 90 |
| chicken essence | granule | 5-7 | 0.5 | 190 |
| ammonium chloride | granule | 4-6.7 | 0.5 | 500-600 |
