Compound Fertilizer Vibratory Fluid Bed Drying Machine 9M Length

Compound Fertilizer Vibratory Fluid Bed Drying Machine 9M Length

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: ZLG-1.2x9M

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information
Item Name: 9M Length Compound Fertilizer Vibratory Fluid Bed Drying Machine Model Type: ZLG-1.2x9M
Application: Food Processing Area Of Fluidzed Bed: 9.5m2
Water Evaporation: 200-290KG/H Vibration Motor Model: YZS50-6
Vibration Motor Power: 3.7x2kw Heating Source: Steam, Electricity, Gas
Highlight:

Fertilizer Vibratory Fluid Bed Drying Machine

,

9M Length Fluid Bed Drying Machine

,

Compound Fertilizer Fluid Bed Dryer

Product Description

9M Length Compound Fertilizer Vibratory Fluid Bed Drying Machine

Vibrating fluid bed dryer is widely used for operation of drying, cooling and damp increasing (or carry out at the same time) for powder or granule materials. Material is fed into the machine from feeding inlet, and moves forward continuously along with the level of fluid bed under the action of vibration force. Hot air passes through fluid bed and carries out heat exchanging with damp material. Then the damp air is exhausted out by exhaust fan, some fine powder is collected by cyclone separator and dust remover, and dried product is discharged from discharging outlet.


PRODUCT FEATURES
1. Adopts new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
2. Bed plate adopts laser punching, it can avoid the deformation in common punching process effectively.
3. Bottom bed adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
4. Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
5. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
6. Fluid state is stable, there is no phenomenon of gap or blowing out.
7. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.
8. Adopts full sealed structure. It effectively avoids cross infection between and air, the operation environment is clean.



Fluid Bed Dryer Technical Parameters

Model A B C D E F Weight(kg)
VFBD-3x0.3 3000 300 1350 900 430 1650 1250
VFBD-4.5x0.3 4500 300 1350 900 430 1650 1560
VFBD-4.5X0.45 4500 450 1550 950 430 1700 1670
VFBD-4.5X0.6 4500 600 1650 950 430 1700 1910
VFBD-6x0.45 6000 450 1650 950 430 1700 2100
VFBD-6x0.6 6000 600 1700 1000 500 1700 2410
VFBD-6x0.75 6000 750 1850 1000 600 1850 2340
VFBD-6x0.9 6000 900 2000 1000 600 1850 3160
VFBD-7.5x0.6 7500 600 1850 1000 600 1850 3200
VFBD-7.5x0.75 7500 750 2000 1000 600 1850 3600
VFBD-7.5x0.9 7500 900 2100 1000 600 1850 4140
VFBD-7.5x1.2 7500 1200 2500 1150 800 2050 5190
VFBD-7.5x1.5 7500 1500 2850 1570 800 2370 6426
VFBD-8x1.8 8000 1800 3250 1800 900 2700 8600



Model Area of fluidized bed(M2) Inlet air temperature(oC) Outlet air temperature(oC) Water evaporation(kg/h) Vibration motor model Vibration motor power
VFBD-3x0.3 0.9 70-140 40-70 20-35 YZS8-6 0.75x2
VFBD-4.5x0.3 1.35 35-50 YZS10-6 0.75x2
VFBD-4.5X0.45 2.025 50-70 YZS15-6 1.1x2
VFBD-4.5X0.6 2.7 70-90 YZS15-6 1.1x2
VFBD-6x0.45 2.7 80-100 YZS15-6 1.5x2
VFBD-6x0.6 3.6 100-130 YZS20-6 1.5x2
VFBD-6x0.75 4.5 120-170 YZS20-6 2.2x2
VFBD-6x0.9 5.4 140-170 YZS30-6 2.2x2
VFBD-7.5x0.6 4.5 130-150 YZS30-6 2.2x2
VFBD-7.5x0.75 5.625 150-180 YZS40-6 3.0x2
VFBD-7.5x0.9 6.75 160-210 YZS40-6 3.0x2
VFBD-7.5x1.2 9.0 200-280 YZS50-6 3.7x2
VFBD-7.5x1.5 11.25 230-330 YZS50-6 3.7x2
VFBD-8x1.8 14.4 290-420 YZS75-6 5.5x2



Fluid Bed Dryer Application

Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid

Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate

Pesticides: Imidacloprid granules, granules glyphosate

Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate

Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose

Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,

Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C

Animal husbandry and fishery industry:canola ,seeds





Fluid Bed Dryer Flow

Compound Fertilizer Vibratory Fluid Bed Drying Machine 9M Length 0

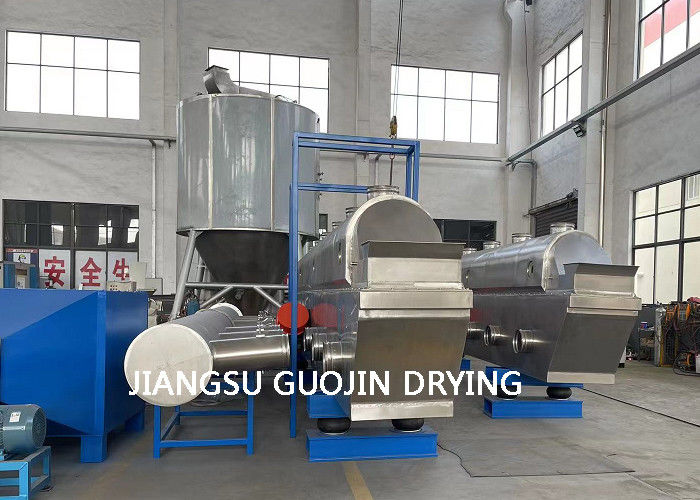

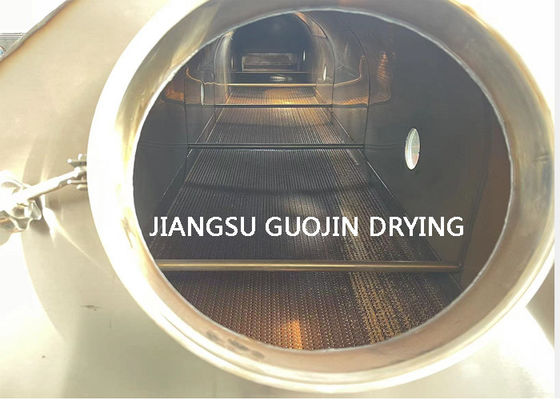

Fluid Bed Dryer Show

Compound Fertilizer Vibratory Fluid Bed Drying Machine 9M Length 1
