Energy Saving Vibrating Fluid Bed Dryer ZLG1.2x8M Series
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | ZLG-1.2x8M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Energy Saving China ZLG1.2x8M Series Vibrating Fluid Bed Dryer | Model Type: | ZLG-1.2x8M |
|---|---|---|---|
| Application: | Food Processing | Area Of Fluidzed Bed: | 9m2 |
| Water Evaporation: | 200-280 KG/H | Vibration Motor Model: | YZS 50-6 |
| Vibration Motor Power: | 3.7x2kw | Heating Source: | Steam, Electricity, Gas |
| Highlight: | Coal Vibrating Fluid Bed Dryer,Energy Saving Vibrating Fluid Bed Dryer,Food Processing Vfbd Dryer |
||
Product Description
Energy Saving China ZLG1.2x8M Series Vibrating Fluid Bed Dryer
The vibration is created by motor. Lt is stable in operation and convenient in maintenance, low noise and long life.
High Effection, raw material is heated evenly and heat exchange is fully
used and dry capacity is high. Compared with ordinary drier, the energy can
be saved about 30%.
It is good in regulation and wide in suitablity. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuos variable speed.
It is small for danaging the surface of raw material. The equipment can be
used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomaly shape.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
Fluid Bed Dryer Flow

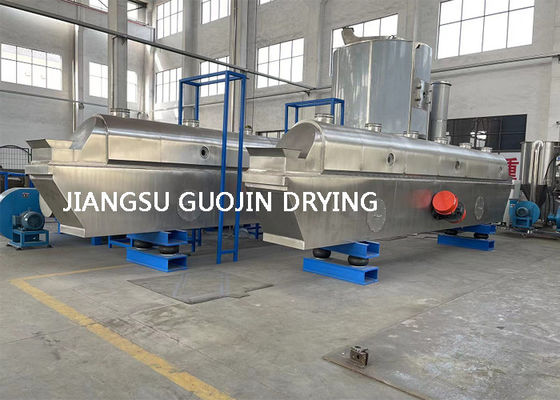

Fluid Bed Dryer Show
