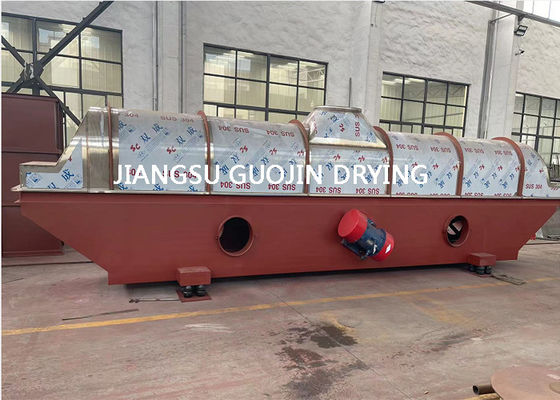

Continuous Chicken Flavor Fluid Bed Dryer 8.5M Length For Food Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | ZLG-0.9X8.5Meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 8.5M Length ZLG Food Industry Continuous Chicken Flavor Fluid Bed Dryer | Model Type: | ZLG-0.9X7.5Meter |
|---|---|---|---|
| Application: | Food Industry | Area Of Fluidzed Bed: | 7.5m2 |
| Water Evaporation: | 170-230 KG/H | Vibration Motor Model: | YZS40-6 |
| Vibration Motor Power: | 3.5x2 Kw | Heating Source: | Steam, Electricity, Gas |
| Highlight: | Continuous Chicken Flavor Fluid Bed Dryer,Food Industry Fluid Bed Dryer 8.5M,Salt Drying Vfbd Dryer |
||
Product Description
8.5M Length ZLG Food Industry Continuous Chicken Flavor Fluid Bed Dryer
The material has been feed into the salt fluid bed dryer, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.
Fluid Bed Dryer Charactaristics
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
High heat efficiency, raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%. The state of fluidization is uniform and no dead gaps or broken phenomenon so as to have dry, cool products.
It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted.
It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have irregular shape.
It is effective to prevent cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.
You can string multi-set to raised capacity of raw materials, such as polyacrylamide.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid
Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate
Pesticides: Imidacloprid granules, granules glyphosate
Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate
Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose
Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,
Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C
Fluid Bed Dryer Flow

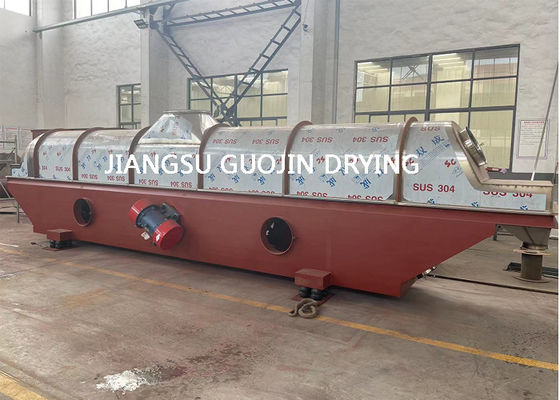

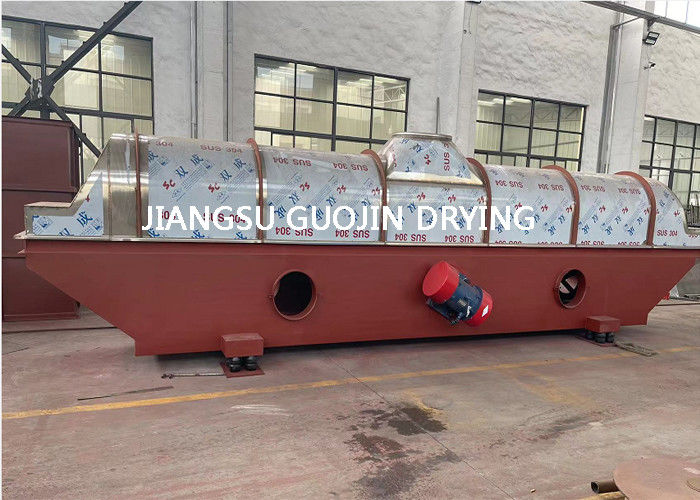

Fluid Bed Dryer Show
