Continuous Rice Bran Drying Fluid Bed Equipment 7.5M Length Food Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | VFBD-0.9X7.5Meter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 7.5M Length Food Industry Continuous Rice Bran Drying Fluid Bed Dryer | Model Type: | VFBD-0.9X7.5Meter |
|---|---|---|---|
| Application: | Food Industry | Area Of Fluidzed Bed: | 6.75 M2 |
| Water Evaporation: | 160-210 KG/H | Vibration Motor Model: | YZS 40-6 |
| Vibration Motor Power: | 3.0x2 Kw | Heating Source: | Steam, Electricity, Gas |
| Highlight: | Rice Bran Drying Fluid Bed Equipment,7.5M Drying Fluid Bed Equipment,Bread Crumbs Fluid Bed Dryer |
||
Product Description
7.5M Length Food Industry Continuous Rice Bran Drying Fluid Bed Dryer
Fluid Bed Dryer Charactaristics
Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.
The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.
The lower bed is supported by stainless steel seamless tube. It’s more strong.
Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid
Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate
Pesticides: Imidacloprid granules, granules glyphosate
Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate
Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose
Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,
Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C
Fluid Bed Dryer Flow

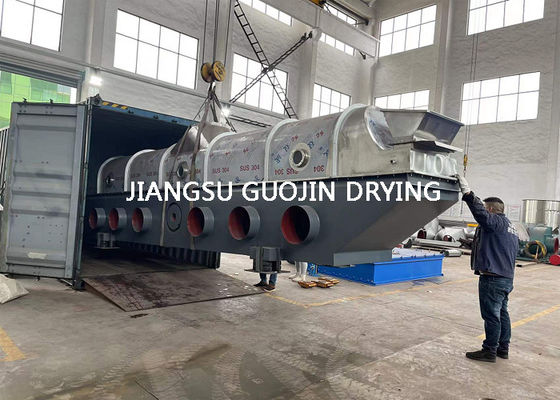

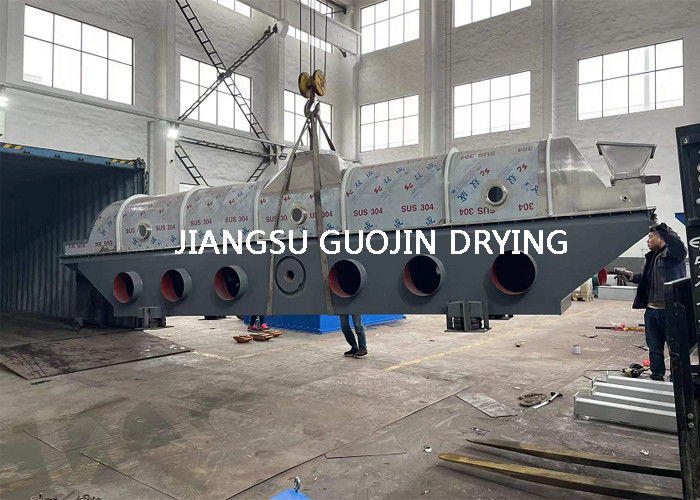

Fluid Bed Dryer Show
