Foodstuff Industry VFBD Dryer 7.5M Length For Continuous Salt Drying
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | CE |
| Model Number: | VFBD-0.9X7.5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 7.5M Length Food Industry Continuous Salt Drying Fluid Bed Dryer | Model Type: | VFBD-0.9X7.5M |
|---|---|---|---|
| Application: | Food Industry | Area Of Fluidzed Bed: | 6.75 M2 |
| Inlet Air Temperature: | 70-140 | Outlet Air Temperature: | 40-70 |
| Water Evaporation: | 160-210KG/H | Vibration Motor Model: | YZS40-6 |
| Vibration Motor Power: | 3.0x2kw | Heating Source: | Steam, Electricity,Gas |
| Highlight: | Foodstuff Industry VFBD Dryer,Continuous Salt Drying VFBD Dryer,7.5M Length Fluid Bed Dryer |
||
Product Description
7.5M Length Food Industry Continuous Salt Drying Fluid Bed Dryer
The material has been feed into the salt fluid bed dryer, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.
Fluid Bed Dryer Charactaristics
Quick-open structure will be adopted in it, the upper bed can be moved easily and it is convenient for cleaning.
The bed board was made with laser punching technology, it effectively avoid deformation by common punching technology.
The lower bed is supported by stainless steel seamless tube. It’s more strong.
Raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary dryer ,the energy can be saved about 30%.
The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
The fluidized state is stable and no dead angle and phenomenon of broken out.
It is good in regulation and wide in suitability. The thickness and moving speed in the machine and the amplitude change speed of the material can be steeples regulated.
It is small for damaging the surface of raw material. The machine can be used for drying materials that are easy broken. The drying effect can not be affected even materials gave anomalous shape.
It is effective to prevent from cross pollution between raw material and air because the equipment adopts fully closed structure. So that keeps the environment clean.
Fluid Bed Dryer Technical Parameters
| Model | A | B | C | D | E | F | Weight(kg) |
| VFBD-3x0.3 | 3000 | 300 | 1350 | 900 | 430 | 1650 | 1250 |
| VFBD-4.5x0.3 | 4500 | 300 | 1350 | 900 | 430 | 1650 | 1560 |
| VFBD-4.5X0.45 | 4500 | 450 | 1550 | 950 | 430 | 1700 | 1670 |
| VFBD-4.5X0.6 | 4500 | 600 | 1650 | 950 | 430 | 1700 | 1910 |
| VFBD-6x0.45 | 6000 | 450 | 1650 | 950 | 430 | 1700 | 2100 |
| VFBD-6x0.6 | 6000 | 600 | 1700 | 1000 | 500 | 1700 | 2410 |
| VFBD-6x0.75 | 6000 | 750 | 1850 | 1000 | 600 | 1850 | 2340 |
| VFBD-6x0.9 | 6000 | 900 | 2000 | 1000 | 600 | 1850 | 3160 |
| VFBD-7.5x0.6 | 7500 | 600 | 1850 | 1000 | 600 | 1850 | 3200 |
| VFBD-7.5x0.75 | 7500 | 750 | 2000 | 1000 | 600 | 1850 | 3600 |
| VFBD-7.5x0.9 | 7500 | 900 | 2100 | 1000 | 600 | 1850 | 4140 |
| VFBD-7.5x1.2 | 7500 | 1200 | 2500 | 1150 | 800 | 2050 | 5190 |
| VFBD-7.5x1.5 | 7500 | 1500 | 2850 | 1570 | 800 | 2370 | 6426 |
| VFBD-8x1.8 | 8000 | 1800 | 3250 | 1800 | 900 | 2700 | 8600 |
| Model | Area of fluidized bed(M2) | Inlet air temperature(oC) | Outlet air temperature(oC) | Water evaporation(kg/h) | Vibration motor model | Vibration motor power |
| VFBD-3x0.3 | 0.9 | 70-140 | 40-70 | 20-35 | YZS8-6 | 0.75x2 |
| VFBD-4.5x0.3 | 1.35 | 35-50 | YZS10-6 | 0.75x2 | ||
| VFBD-4.5X0.45 | 2.025 | 50-70 | YZS15-6 | 1.1x2 | ||
| VFBD-4.5X0.6 | 2.7 | 70-90 | YZS15-6 | 1.1x2 | ||
| VFBD-6x0.45 | 2.7 | 80-100 | YZS15-6 | 1.5x2 | ||
| VFBD-6x0.6 | 3.6 | 100-130 | YZS20-6 | 1.5x2 | ||
| VFBD-6x0.75 | 4.5 | 120-170 | YZS20-6 | 2.2x2 | ||
| VFBD-6x0.9 | 5.4 | 140-170 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.6 | 4.5 | 130-150 | YZS30-6 | 2.2x2 | ||
| VFBD-7.5x0.75 | 5.625 | 150-180 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x0.9 | 6.75 | 160-210 | YZS40-6 | 3.0x2 | ||
| VFBD-7.5x1.2 | 9.0 | 200-280 | YZS50-6 | 3.7x2 | ||
| VFBD-7.5x1.5 | 11.25 | 230-330 | YZS50-6 | 3.7x2 | ||
| VFBD-8x1.8 | 14.4 | 290-420 | YZS75-6 | 5.5x2 |
Fluid Bed Dryer Application
Pharmaceutical and chemical industries: All kinds of press tablet and granules, boric acid, borax, dihydroxybenzene, malic acid, maleic acid and so on.
Foodstuff industry: Distiller’s grains, monosodium, edible salt, mine residue, bean seed, mushroom essence, chicken essence, desiccated coconut and so on.
Fluid Bed Dryer Flow

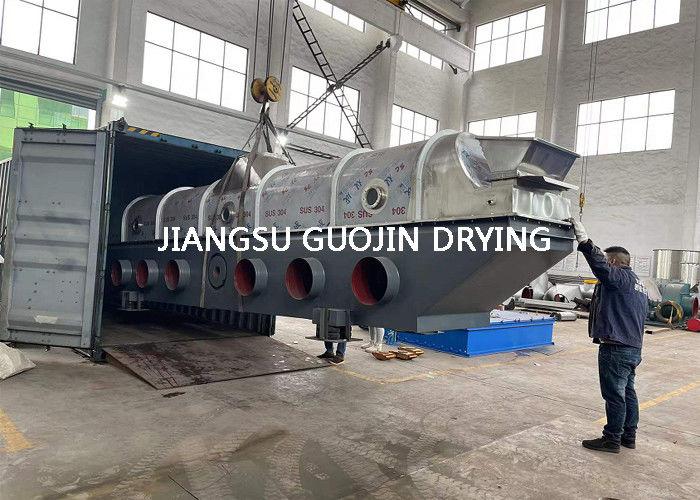

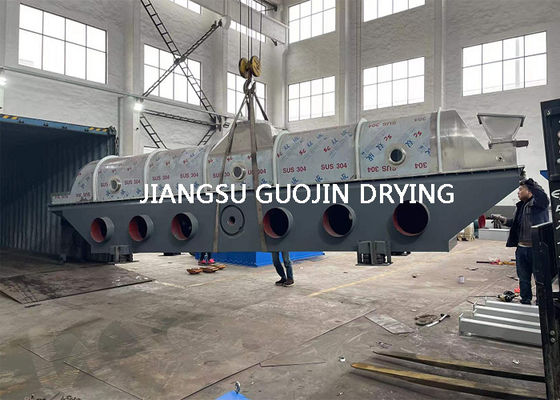

Fluid Bed Dryer Show
