316L Stainless Steel Fluid Bed Dryer Machine Continuous Vibrating For Salt

316L Stainless Steel Fluid Bed Dryer Machine Continuous Vibrating For Salt

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: VFBD-10x1.8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information
Item Name: 316L Stainless Steel Continuous Vibrating Fluid Bed Dryer Machine For Salt Model Type: VFBD-10x1.8
Application: Food Processing,Chemical Processing Area Of Fluidzed Bed: 15 M2
Inlet Air Temperature: 70-140 Outlet Air Temperature: 40-70
Water Evaporation: 300-450 Kg/h Vibration Motor Model: YZS 75-6
Vibration Motor Power: 6x2 KW Heating Source: Steam, Electricity
Highlight:

Salt Continuous Vibrating Fluid Bed Dryer

,

316L Stainless Steel Fluid Bed Dryer

,

SS316L Fluid Bed Equipment

Product Description

316L Stainless Steel Continuous Vibrating Fluid Bed Dryer Machine For Salt

The material has been feed into the salt fluid bed dryer, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.



Fluid Bed Dryer Working Principle

The material enters the machine from the feed port. Under the action of vibration, the material is thrown along the
horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator to remove dust. It is discharged from the exhaust port, and the dry material is discharged from the discharge port.





Fluid Bed Dryer Features

1. The material is heated evenly, the heat exchange is sufficient, the drying strength is high, and the energy-saving is about 30% compared with ordinary dryers.
2. The vibration source is driven by a vibration motor, with stable operation, convenient maintenance, low noise and long life.
3. Stable fluidization, no dead ends and blow-through phenomenon. The opening form of the bed and the opening rate is important. The final moisture and output can be controlled by the amplitude and the amount of feed.
4. Good adjustability and wide adaptability.
5. It has little damage to the surface of the material, and can be used for drying fragile materials, and the work effect will not be affected when the material particles are irregular. Significantly better than fluidized bed.
6. The fully enclosed structure effectively prevents cross-contamination between materials and air, and the working environment is clean.

Fluid Bed Dryer Technical Parameters

Model A B C D E F Weight(kg)
VFBD-3x0.3 3000 300 1350 900 430 1650 1250
VFBD-4.5x0.3 4500 300 1350 900 430 1650 1560
VFBD-4.5X0.45 4500 450 1550 950 430 1700 1670
VFBD-4.5X0.6 4500 600 1650 950 430 1700 1910
VFBD-6x0.45 6000 450 1650 950 430 1700 2100
VFBD-6x0.6 6000 600 1700 1000 500 1700 2410
VFBD-6x0.75 6000 750 1850 1000 600 1850 2340
VFBD-6x0.9 6000 900 2000 1000 600 1850 3160
VFBD-7.5x0.6 7500 600 1850 1000 600 1850 3200
VFBD-7.5x0.75 7500 750 2000 1000 600 1850 3600
VFBD-7.5x0.9 7500 900 2100 1000 600 1850 4140
VFBD-7.5x1.2 7500 1200 2500 1150 800 2050 5190
VFBD-7.5x1.5 7500 1500 2850 1570 800 2370 6426
VFBD-8x1.8 8000 1800 3250 1800 900 2700 8600



Model Area of fluidized bed(M2) Inlet air temperature(oC) Outlet air temperature(oC) Water evaporation(kg/h) Vibration motor model Vibration motor power
VFBD-3x0.3 0.9 70-140 40-70 20-35 YZS8-6 0.75x2
VFBD-4.5x0.3 1.35 35-50 YZS10-6 0.75x2
VFBD-4.5X0.45 2.025 50-70 YZS15-6 1.1x2
VFBD-4.5X0.6 2.7 70-90 YZS15-6 1.1x2
VFBD-6x0.45 2.7 80-100 YZS15-6 1.5x2
VFBD-6x0.6 3.6 100-130 YZS20-6 1.5x2
VFBD-6x0.75 4.5 120-170 YZS20-6 2.2x2
VFBD-6x0.9 5.4 140-170 YZS30-6 2.2x2
VFBD-7.5x0.6 4.5 130-150 YZS30-6 2.2x2
VFBD-7.5x0.75 5.625 150-180 YZS40-6 3.0x2
VFBD-7.5x0.9 6.75 160-210 YZS40-6 3.0x2
VFBD-7.5x1.2 9.0 200-280 YZS50-6 3.7x2
VFBD-7.5x1.5 11.25 230-330 YZS50-6 3.7x2
VFBD-8x1.8 14.4 290-420 YZS75-6 5.5x2





Fluid Bed Dryer Application

Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid

Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate

Pesticides: Imidacloprid granules, granules glyphosate

Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate

Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose

Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,

Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C

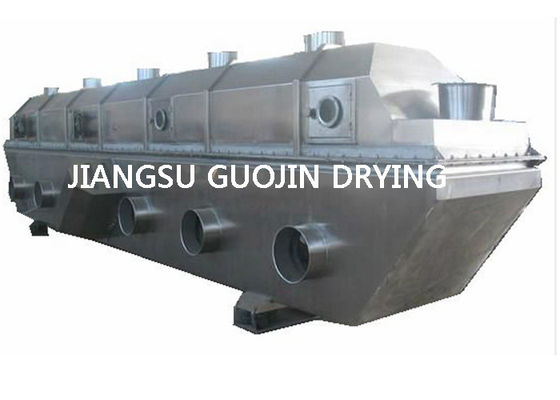

Fluid Bed Dryer Flow

316L Stainless Steel Fluid Bed Dryer Machine Continuous Vibrating For Salt 0

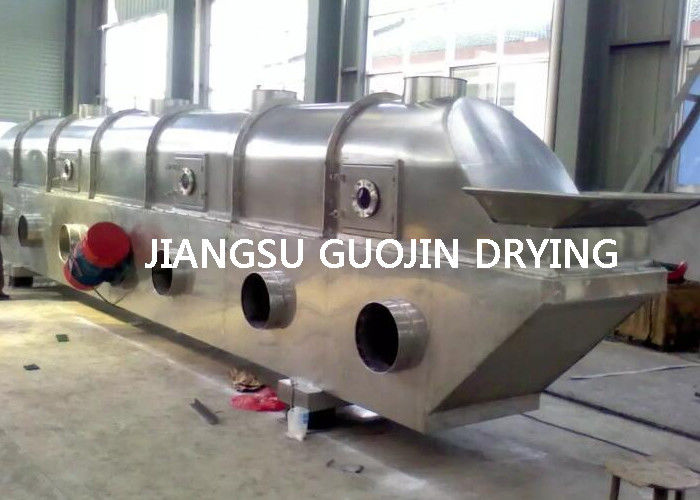

Fluid Bed Dryer Show

316L Stainless Steel Fluid Bed Dryer Machine Continuous Vibrating For Salt 1
