10M Length Continuous Vibrating Fluid Bed Drying Machine For Sugar

10M Length Continuous Vibrating Fluid Bed Drying Machine For Sugar

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: CE
Model Number: VFBD-10x1.8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information
Item Name: 10M Length Continuous Vibrating Fluid Bed Dryer Machine For Sugar Model Type: VFBD- 10x1.8
Application: Food Processing,Chemical Processing Area Of Fluidzed Bed: 15M2
Inlet Air Temperature: 70-140 Outlet Air Temperature: 40-70
Water Evaporation: 300-450kg/h Vibration Motor Model: YZS75-6
Vibration Motor Power: 6x2KW Heating Source: Steam, Electricity
Highlight:

10M Length Fluid Bed Drying Machine

,

Sugar Vibrating Fluid Bed Drying Machine

,

450kg/h Water Evaporation Fluid Bed Dryer

Product Description

10M Length Continuous Vibrating Fluid Bed Dryer Machine For Sugar

The material has been feed into the salt fluid bed dryer, under the dual function of the vibration and air flow, the material move along the fluid bed as throwing forward continuously. Hot air upward through the fluid bed and wet materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the discharging end.



Fluid Bed Dryer Working Principle

The material enters the machine from the feed port. Under the action of vibration, the material is thrown along the
horizontal fluidized bed and moves forward continuously. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air passes through the cyclone separator to remove dust. It is discharged from the exhaust port, and the dry material is discharged from the discharge port.



Fluid Bed Dryer Charactaristics

♦Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.
♦ The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life
♦ It flows stability, with no dead angle and blown through phenomenon.
♦ It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.
♦ It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.
♦ It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.
♦ Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.



Fluid Bed Dryer Technical Parameters

Model A B C D E F Weight(kg)
VFBD-3x0.3 3000 300 1350 900 430 1650 1250
VFBD-4.5x0.3 4500 300 1350 900 430 1650 1560
VFBD-4.5X0.45 4500 450 1550 950 430 1700 1670
VFBD-4.5X0.6 4500 600 1650 950 430 1700 1910
VFBD-6x0.45 6000 450 1650 950 430 1700 2100
VFBD-6x0.6 6000 600 1700 1000 500 1700 2410
VFBD-6x0.75 6000 750 1850 1000 600 1850 2340
VFBD-6x0.9 6000 900 2000 1000 600 1850 3160
VFBD-7.5x0.6 7500 600 1850 1000 600 1850 3200
VFBD-7.5x0.75 7500 750 2000 1000 600 1850 3600
VFBD-7.5x0.9 7500 900 2100 1000 600 1850 4140
VFBD-7.5x1.2 7500 1200 2500 1150 800 2050 5190
VFBD-7.5x1.5 7500 1500 2850 1570 800 2370 6426
VFBD-8x1.8 8000 1800 3250 1800 900 2700 8600



Model Area of fluidized bed(M2) Inlet air temperature(oC) Outlet air temperature(oC) Water evaporation(kg/h) Vibration motor model Vibration motor power
VFBD-3x0.3 0.9 70-140 40-70 20-35 YZS8-6 0.75x2
VFBD-4.5x0.3 1.35 35-50 YZS10-6 0.75x2
VFBD-4.5X0.45 2.025 50-70 YZS15-6 1.1x2
VFBD-4.5X0.6 2.7 70-90 YZS15-6 1.1x2
VFBD-6x0.45 2.7 80-100 YZS15-6 1.5x2
VFBD-6x0.6 3.6 100-130 YZS20-6 1.5x2
VFBD-6x0.75 4.5 120-170 YZS20-6 2.2x2
VFBD-6x0.9 5.4 140-170 YZS30-6 2.2x2
VFBD-7.5x0.6 4.5 130-150 YZS30-6 2.2x2
VFBD-7.5x0.75 5.625 150-180 YZS40-6 3.0x2
VFBD-7.5x0.9 6.75 160-210 YZS40-6 3.0x2
VFBD-7.5x1.2 9.0 200-280 YZS50-6 3.7x2
VFBD-7.5x1.5 11.25 230-330 YZS50-6 3.7x2
VFBD-8x1.8 14.4 290-420 YZS75-6 5.5x2





Fluid Bed Dryer Application

Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid

Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate

Pesticides: Imidacloprid granules, granules glyphosate

Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate

Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose

Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,

Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C





Fluid Bed Dryer Flow

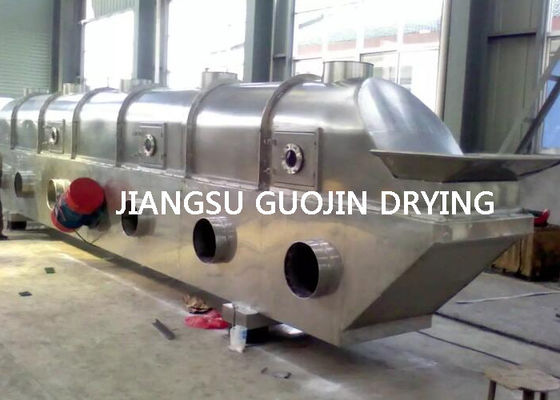

10M Length Continuous Vibrating Fluid Bed Drying Machine For Sugar 0



Fluid Bed Dryer Show

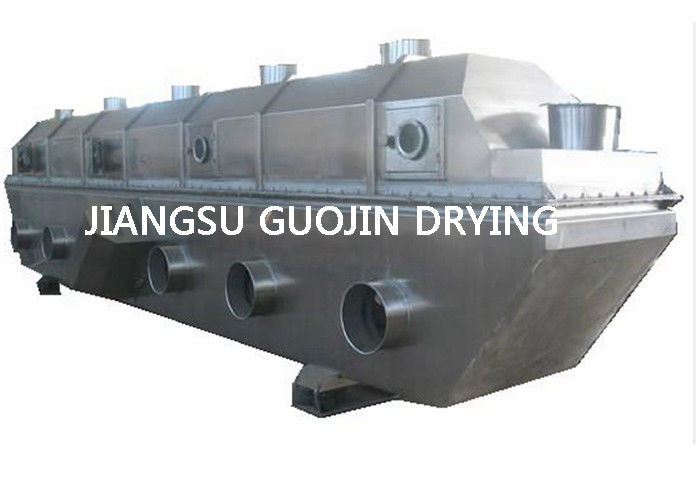

10M Length Continuous Vibrating Fluid Bed Drying Machine For Sugar 1
