8.4KW Horizontal Double Ribbon Mixer 180kg/batch For Dry Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | HPM-0.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Horizontal Double Ribbon Mixer For Dry Powder | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | HPM-0.3 | Mixed Amount: | 120-180kg/batch |
| Equipped Power: | 8.4kw | Weight: | 950kg |
| Mixing Type: | Batch Mixing | Heating Source: | Electrical |
| Highlight: | 8.4KW Double Ribbon Mixer,Double Ribbon Mixer 180kg/batch,double ribbon blender 180kg/batch |
||
Product Description
Horizontal Double Ribbon Mixer For Dry Powder
1) horizontal plough mixer consists of U-shaped containers, plough mixing blade and transmission components.
2) The ribbon including continuous and disconnect.
3) The helical ribbon blade is made of a double or triple outer spiral the mateial from both sidesbrings together the central inner spiral the material transported from teh center to the sides to form a stream mixed.
Technical Parameters
| Model | HPM-0.1 | HPM-0.3 | HPM-0.5 | HPM-1 | HPM-2 | HPM-4 | HPM-6 | HPM-8 | HPM-10 | HPM-15 |
| Mixed a mount/batch(kg) | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 | 6000-9000 |
| Equipped power(kw) | 6 | 8.4 | 9.9 | 23 | 30.5 | 38 | 38 | 46 | 53 | 82.5 |
| Weight(kg) | 430 | 950 | 1100 | 1800 | 2520 | 3220 | 6750 | 7200 | 7500 | 9200 |
Product Feature
1. The mixing time is short, and it has good adaptability to the mixing of materials with large diference in particle size and density.
2. The strucral characteristics are especially suitable for liquid additioin mixing and wet granulation, and the particle size iss between 0.3-3mm and 3mm.

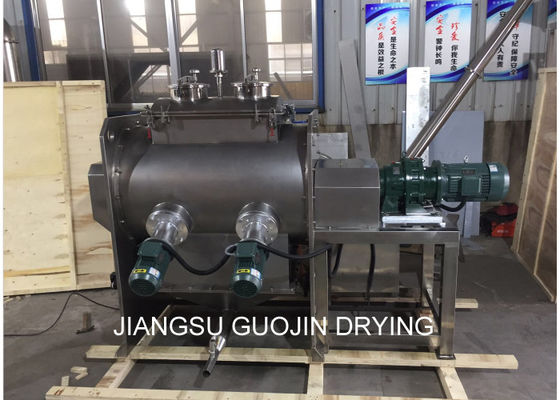

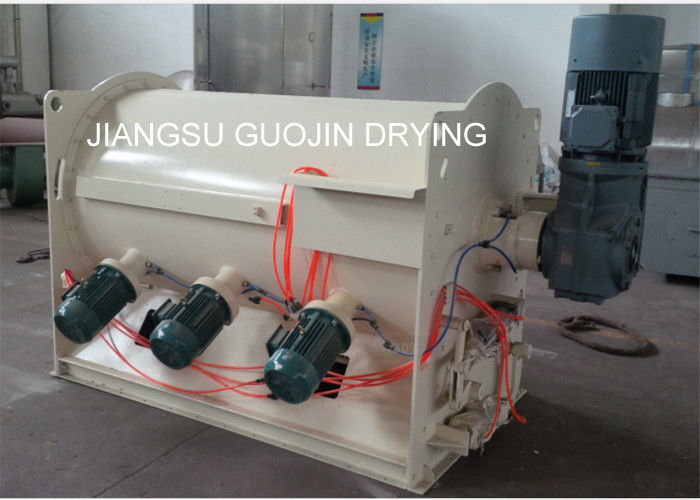

Product Show
electrical, steam, natural gas or other
