GMP 1000L Square Cone Mixer For Medical Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | SCM-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Square Cone Mixer/Blender For Medical Industry | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | SCM-1000 | Total Volume: | 1000L |
| Max Loading Volume: | 700L | Max Loading Weight: | 500kg |
| Main Shaft Stirring Speed: | 12rpm | Motor Power: | 4kw |
| Feeding Diameter: | 400mm | Discharging Diameter: | 200mm |
| Weight: | 1000kg | ||
| Highlight: | 1000L Square Cone Mixer,GMP Square Cone Mixer,GMP Mixing Machine |
||
Product Description
Square Cone Mixer/Blender For Medical Industry
SCM series square cone mixer is a novel material mixer widely used in pharmaceutical, chemical, metallurgy, food, light industry, feed and other industries. The machine can mix powder or granules very evenly to achieve the best results after mixing.
Product Feature
1. The machine is a high-tech product of machinery and electricity. Its design of driver and PLC control makes it to be controlled conveniently and easily. In addition, its technical parameters can be adjusted conveniently due to the design.
2. The machine is of sensitive control system, compact structure and stable operation.
3. Hoppers of different specifications can be optional for a single machine. Material after mixing will not be output but be turned to the next process directly after hopper with material is dismantled from the revolving arm. By doing so, the mixer efficiency can be highly improved. Besides, material cross-contamination can also be avoided. Therefore, the machine complies with requirements of GMP absolutely.
4. The mixing evenness and material loading coefficient can reach over 99% and 0.8 respectively. In addition, the mixer is smooth and have no dead ends internally and externally.
5. After mixing of every batch of medicine, the workshop can still keep sanitary.
Technical Parameters
| Model | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Total volume(L) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Max loading volume(L) | 350 | 700 | 1050 | 1400 | 2100 | 2800 | 3500 | 4200 | 5600 | 7000 |
| Max loading weight(kg) | 250 | 500 | 750 | 1000 | 1500 | 1960 | 2450 | 2950 | 3950 | 4900 |
| Main shaft stirring speep(rpm) | 15 | 12 | 9 | 9 | 8 | 8 | 7 | 7 | ||
| Motor power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 15 | 18.5 | 22 |
| Feeding diameter(mm) | 380 | 400 | 450 | 450 | 480 | 480 | ||||
| Discharging diameter(mm) | 200 | 200 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 |
| Overall dimension(mm) |
2200x1550 x2260 |
2800x2000 x2850 |
2915x2300 x2950 |
3160x2500 x3200 |
3800x3200 x3850 |
3770x3190 x4030 |
4360x5310 x4415 |
4520x3570 x4850 |
4890x3790 x4880 |
5230x4050 x5230 |
| Weight(kg) | 700 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 7800 |
Sketch of Structure

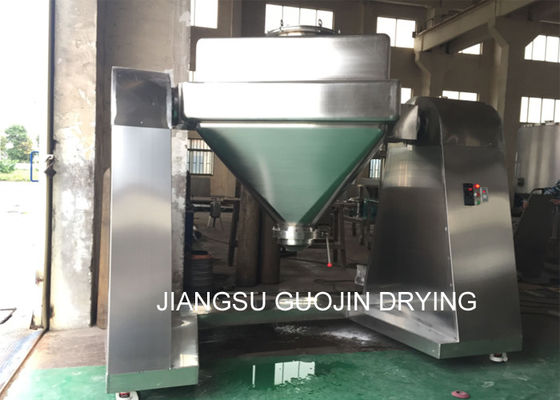

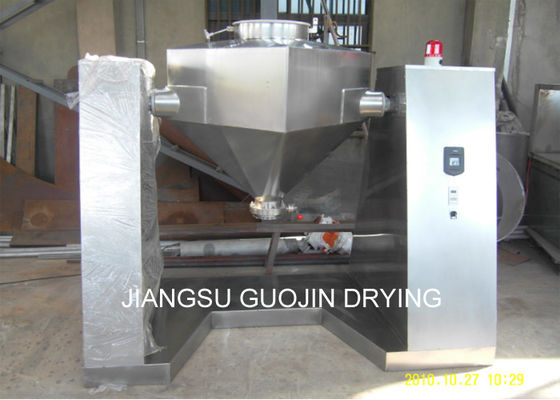

Product Show
