2.2KW Pharmaceutical Powder Square Cone Mixing Machine 500L
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | SCM-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Pharmaceutical Powder Square Cone Mixing Machine | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | SCM-500 | Total Volume: | 500L |
| Max Loading Volume: | 350L | Max Loading Weight: | 250kg |
| Main Shaft Stirring Speed: | 15rpm | Motor Power: | 2.2kw |
| Feeding Diameter: | 380mm | Discharging Diameter: | 200mm |
| Weight: | 700kg | ||
| Highlight: | 2.2KW Mixing Machine,Mixing Machine 500L,Square Cone Mixer 500L |
||

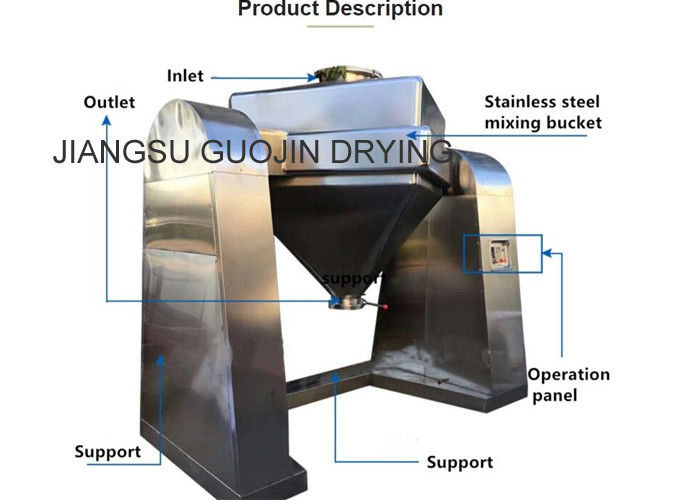

Product Description
Pharmaceutical Powder Square Cone Mixing Machine
SCM series square cone mixer is a novel material mixer widely used in pharmaceutical, chemical, metallurgy, food, light industry, feed and other industries. The machine can mix powder or granules very evenly to achieve the best results after mixing.
Product Feature
1. The square cone mixer has novel design, compact structure, beautiful appearance, uniformity of mixing of 99%, and volumetric loading coefficient of 0.8.
2. Low swing height, stable operation, reliable performance and convenient operation.
3. The inner and outer walls of the cone mixer barrel are mirror-polished, no dead angle, easy to discharge, easy to clean, no cross-contamination, in line with GMP requirements.
Technical Parameters
| Model | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Total volume(L) | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Max loading volume(L) | 350 | 700 | 1050 | 1400 | 2100 | 2800 | 3500 | 4200 | 5600 | 7000 |
| Max loading weight(kg) | 250 | 500 | 750 | 1000 | 1500 | 1960 | 2450 | 2950 | 3950 | 4900 |
| Main shaft stirring speep(rpm) | 15 | 12 | 9 | 9 | 8 | 8 | 7 | 7 | ||
| Motor power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 15 | 18.5 | 22 |
| Feeding diameter(mm) | 380 | 400 | 450 | 450 | 480 | 480 | ||||
| Discharging diameter(mm) | 200 | 200 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 |
| Overall dimension(mm) |
2200x1550 x2260 |
2800x2000 x2850 |
2915x2300 x2950 |
3160x2500 x3200 |
3800x3200 x3850 |
3770x3190 x4030 |
4360x5310 x4415 |
4520x3570 x4850 |
4890x3790 x4880 |
5230x4050 x5230 |
| Weight(kg) | 700 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 7800 |

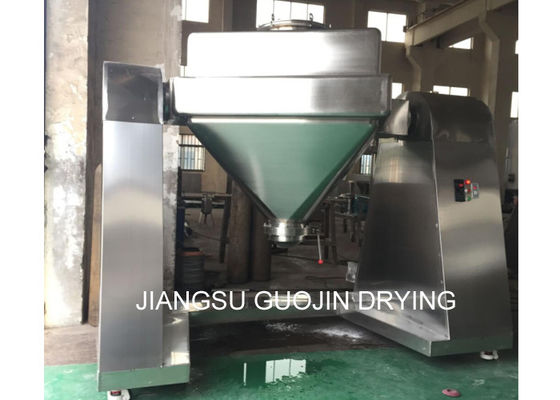

Product Show
electrical, steam, natural gas or other
