Animal Feed Powder 5.5KW Dual Shaft Paddle Mixer 180kg/batch
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DSPM-0.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Animal Feed Powder Dual-Shaft Paddle Feed Mixer | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | DSPM-0.3 | Mixing Amount: | 120-180kg/batch |
| Equipped Power: | 4-5.5kw | Weight: | 750kg |
| Mixing Type: | Batch Mixing | Heating Source: | Electrical |
| Highlight: | 5.5KW Dual Shaft Paddle Mixer,Dual Shaft Paddle Mixer 180kg/batch,twin shaft paddle mixer 180kg/batch |
||
Product Description
Animal Feed Powder Dual-Shaft Paddle Feed Mixer
It is suitable for the mixing of solid-solid(powder and powder),solid-liquid (adding a small amount of liquid into the powder) and some compound technology. Process such as granulating wet particle and drying, especially it is suitable for the mixing of viscous material or glue 一 like additive.
Technical Parameters
| Model | DSPM-0.05 | DSPM-0.1 | DSPM-0.3 | DSPM-0.5 | DSPM-1 | DSPM-2 | DSPM-3 | DSPM-4 | DSPM-6 |
| Mixed amount/batch(kg) | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
| Equipped power(kw) | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-15 | 15-18.5 | 18.5-22 | 22-30 | 30-37 |
| Weight(kg) | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6600 |
Product Features
1.Mixed in gravity-free state , no segregation , variety of liquids can be added.
2.Two open doors structure , discharge rapidly , no leakage , less residue .
3.Series Double Shaft Paddle Mixer Short mixing time(40-120sec/batch), high evenness degree(CV ^ 5%) may be up to 2% .
4.Conveyed by three chains , run in low speed, stable operation movement.
5.The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can't fall on the door), close door which is deadlocked.
6.Advanced adding and spraying system could be added many kinds of liquid and solid at the same time, (add oil,suger etc.)precision spraying and convenient control.
7.Unique design return air system ensures air current balance in all-dimensional feed in materials .
8.We can fit our air cleaning system to reduce the residual quantity. 9.The machine external materal has stainless steel, carbon steel and composite to choose.
Product Application
Adopt in mixing powdery, granule, flake, block and other materials. Suitable for premix, poultry feed, aquatic feed for medium-sized or large-sized feed factory.
Product Work Principle
This series of mixers are characterized by strong and efficient mixing. The two stirring shafts in the horizontal cylinder rotate in opposite directions at the same speed. The specially arranged blades on the shaft ensure the radial, circumferential and axial movements of the materials, forming a compound cycle and achieving uniform mixing in a very short time.
The mixing process is mild, and the loading capacity can be changed in a large range

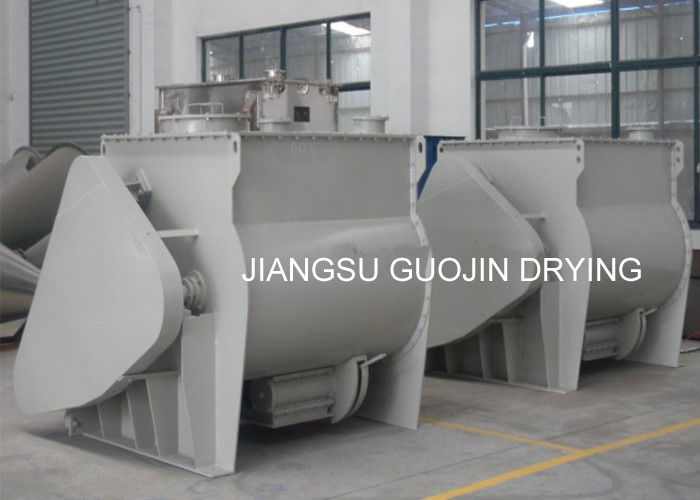

Product Show
electrical, steam, natural gas or other
