2M3 Stainless Steel Double Cone Rotary Drum Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | DCM-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Stainless Steel Food Powder Double Cone Rotary Drum Mixer | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | DCM-2000 | Total Volume: | 2.0M3 |
| Productive Capacity: | 400kg/batch | Mixing Time: | 6-10min |
| Revolution Of Cylinder: | 12rpm | Power: | 7.5kw |
| Rotation Height: | 3590mm | Weight: | 500kg |
| Overall Dimension: | 3160x1900x3500mm | ||
| Highlight: | Double Cone Rotary Drum Mixer,2M3 Rotary Drum Mixer,Double Cone Rotary Drum Blender |
||
Product Description
Stainless Steel Food Powder Double Cone Rotary Drum Mixer
Product Working Principle
DCM series double cone mixer/blender is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing chamber via quick-open feed port manually or by vacuum conveyor. With the rotation of mixing chamber, materials is completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.
DCM series double cone mixer/blender is widely used in pharmaceutical, nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.
1. Intimately mix dry powder or small granules with good flowability in food, chemical and pharmaceutical industry
2. Mixing chamber volume: 180-2000L
3. GMP design
4. Agitator can be equipped to strengthen the mixing effect
5. Can work with vacuum conveyor to achieve automatic and dust-free feeding
| Model | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Total volume(L) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 |
| Productive capacity(kg/batch) | 40 | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Mixing time(min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Revolution of cylinder(rpm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 7.8 | 7.8 |
| Power(kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 | 7.5 | 11 |
| Overall dimension(mm) |
1400*800 *1850 |
1685*800 *1850 |
1910*800 *1940 |
2765*1500 *2370 |
2960*1500 *2480 |
3160*1900 *3500 |
3386*1900 *3560 |
4450*2200 *3600 |
4750*2500 *3680 |
| Rotation height(mm) | 1850 | 1850 | 1950 | 2460 | 2540 | 3590 | 3650 | 3700 | 3730 |
| Weight(kg) | 280 | 310 | 550 | 810 | 980 | 1500 | 2150 | 2500 | 3200 |

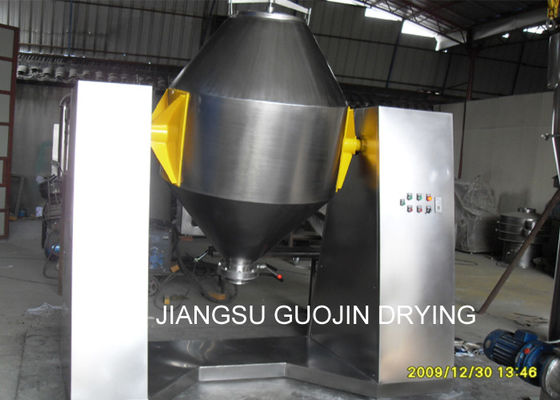

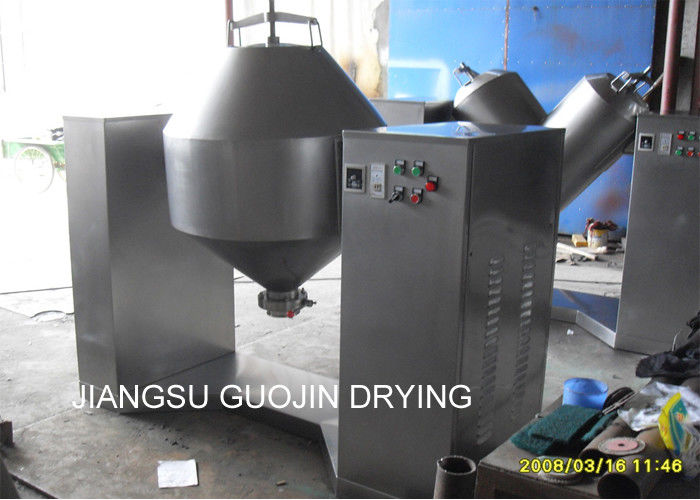

Product Show
