4KW Double Cone Rotating Drum Powder Mixer Blender

Double Cone Rotating Drum Powder Blending Mixer

Product Working Principle

1) Featuring unique structure, high mixing function and uniform mixing

2) The mixing barrel is made of stainless steel with polished internal and external walls.

3) This machine has beautiful appearance, uniform mixing and wide application

Product Features

Through the vacuum conveyor for the machine,send the powder or grain state materials into the double-taper container,or send the materials into the container manually.
As the container rotates continously,the materials moves complexly in the container so as to get the uniform mixing.





Technical Parameters

Model	180	300	500	1000	1500	2000	2500	3000	4000
Total volume(L)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
Productive capacity(kg/batch)	40	60	100	200	300	400	500	600	800
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Revolution of cylinder(rpm)	12	12	12	12	12	12	12	7.8	7.8
Power(kw)	1.1	1.1	2.2	4	4	7.5	7.5	7.5	11
Overall dimension(mm)	1400*800 *1850	1685*800 *1850	1910*800 *1940	2765*1500 *2370	2960*1500 *2480	3160*1900 *3500	3386*1900 *3560	4450*2200 *3600	4750*2500 *3680
Rotation height(mm)	1850	1850	1950	2460	2540	3590	3650	3700	3730
Weight(kg)	280	310	550	810	980	1500	2150	2500	3200





Product Application

The machine is widely applied for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granules and gravity.

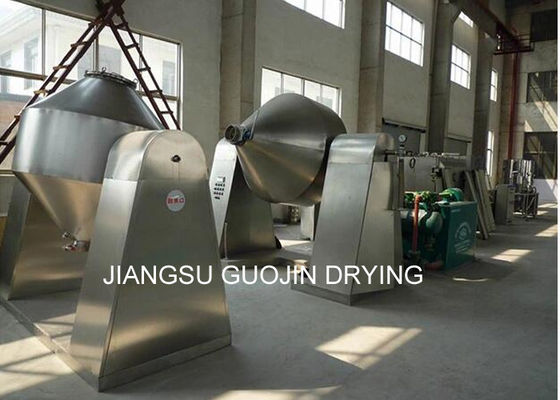

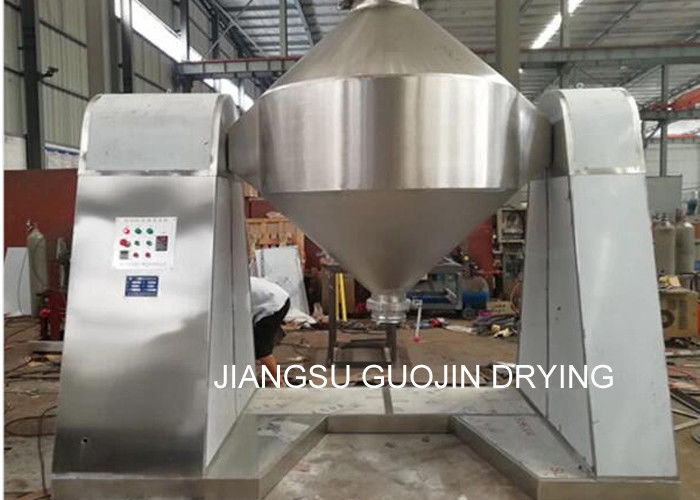

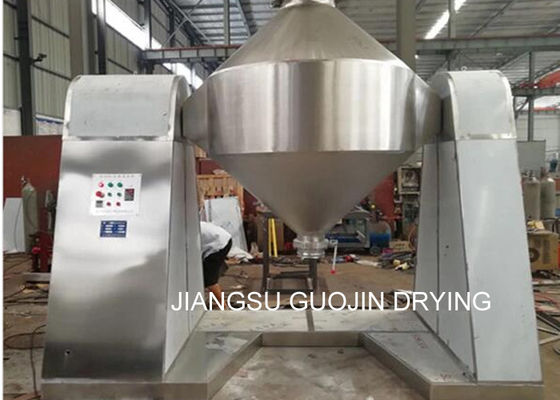

Product Show









electrical, steam, natural gas or other
