0.3M3 Double Conical Mixer 1.1KW For Foodstuff Industry

0.3M3 Double Conical Mixer 1.1KW For Foodstuff Industry

Product Details:

Place of Origin: China
Brand Name: Guojin
Certification: ISO
Model Number: DCM-300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export Carton
Delivery Time: 20-30days
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Item Name: Double Conical Cone Mixer Blender Mixing Machine Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Model Type: DCM-300 Total Volume: 0.3M3
Productive Capacity: 60kg/batch Mixing Time: 6-10min
Revolution Of Cylinder: 12rpm Power: 1.1kw
Rotation Height: 1850mm Weight: 310kg
Overall Dimension: 1685x800x1850mm
Highlight:

0.3M3 Double Conical Mixer

,

Foodstuff Industry Double Conical Mixer

,

1.1KW Mixing Machine

Product Description

Double Conical Cone Mixer Blender Mixing Machine



Product Principle Work

Through the vacuum conveyor for the machine, send the powder or grain state materials into the double-taper container, or send the materials into the container manually. As the container rotates continously, the materials moves complexly in the container so as to get the uniform mixing.

Energy saving, convenient operation, low labor intensity, high work efficiency.

Product Working Principle

1) Featuring unique structure, high mixing function and uniform mixing

2) The mixing barrel is made of stainless steel with polished internal and external walls.

3) This machine has beautiful appearance, uniform mixing and wide application



Technical Parameter
Model 180 300 500 1000 1500 2000 2500 3000 4000
Total volume(L) 0.18 0.3 0.5 1.0 1.5 2.0 2.5 3.0 4.0
Productive capacity(kg/batch) 40 60 100 200 300 400 500 600 800
Mixing time(min) 4-8 6-10 6-10 6-10 6-10 6-10 6-10 6-10 6-10
Revolution of cylinder(rpm) 12 12 12 12 12 12 12 7.8 7.8
Power(kw) 1.1 1.1 2.2 4 4 7.5 7.5 7.5 11
Overall dimension(mm)

1400*800

*1850

1685*800

*1850

1910*800

*1940

2765*1500

*2370

2960*1500

*2480

3160*1900

*3500

3386*1900

*3560

4450*2200

*3600

4750*2500

*3680

Rotation height(mm) 1850 1850 1950 2460 2540 3590 3650 3700 3730
Weight(kg) 280 310 550 810 980 1500 2150 2500 3200




Product Application
The machine is widely applied for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granules and gravity.

0.3M3 Double Conical Mixer 1.1KW For Foodstuff Industry 0

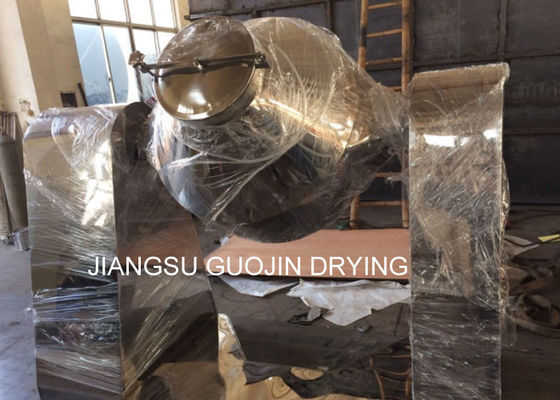

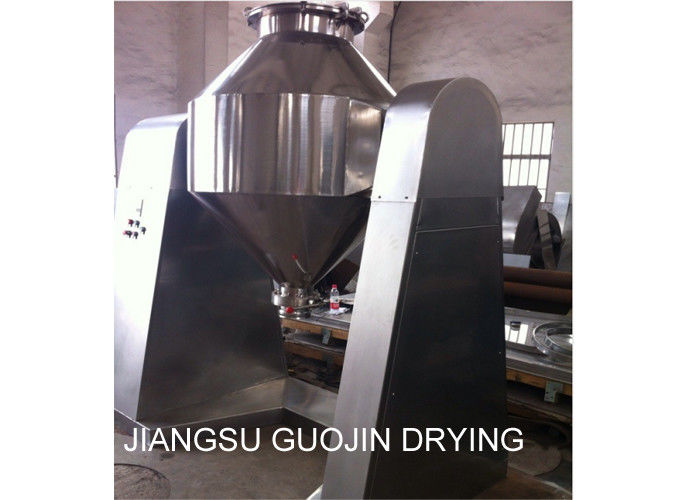

Product Show
