5.5KW 600L Three Dimensional Oscillating Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | THDM-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Rotating 3d Machine Three Dimensional Oscillating Mixer | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | THDM-600 | Barrel Volume: | 600L |
| Max Loading Volume: | 510L | Max Loading Weight: | 300kg |
| Spindle Rotation Speed: | 10r/min | Motor Power: | 5.5kw |
| Weight: | 1500kg | Overall Dimension: | 1850x2500x1650mm |
| Highlight: | Three Dimensional Oscillating Mixer,600L Oscillating Mixer,600L Three Dimensional Mixer |
||
Product Description
Rotating 3d Machine Three Dimensional Oscillating Mixer
Three dimension mixer. The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specification gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.
1. As the mixing vat is able to make multidirectional motion, it makes raw materials inside the vat has many cross-mixing points, therefore the mixing effect is good. Its degree of uniformity can achieve above 99.9%, the max. loading efficiency can be 0.9(The loading efficiency of ordinary mixer is 0.4-0.6). The mixing time is short and efficiency is high.
2. With unique design of mixing vat, inner wall of vat is polished finely. Its advantages are no dead corner, no pollution, convenient in discharge, easy in clean and so on.
3. The materials are mixed under sealed; it would not pollute the environment.
Technical Parameters
| Type | THDM-5 | THDM-100 | THDM-200 | THDM-400 | THDM-600 | THDM-800 | THDM-1000 |
| Material barrel volume(L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 4.25 | 85 | 170 | 340 | 510 | 680 | 850 |
| Max loading weight(kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 |
| Spindle rotation speed(r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 |
| Motor power(kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions(mm) | 600*1000*1000 | 1200*1800*1500 | 1300*1600*1500 | 1500*2200*1500 | 1850*2500*1650 | 1900*2400*2100 | 1950*2500*2400 |
| Weight(kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 |
Product Working Principle
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.

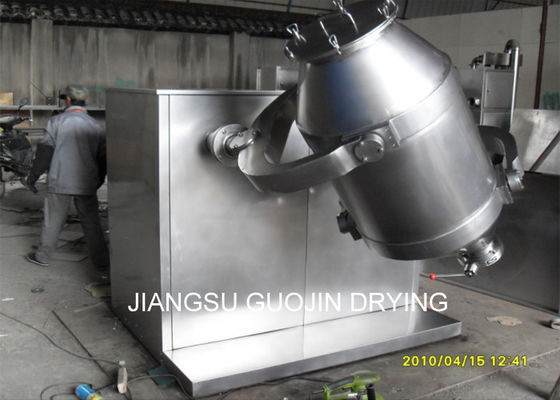

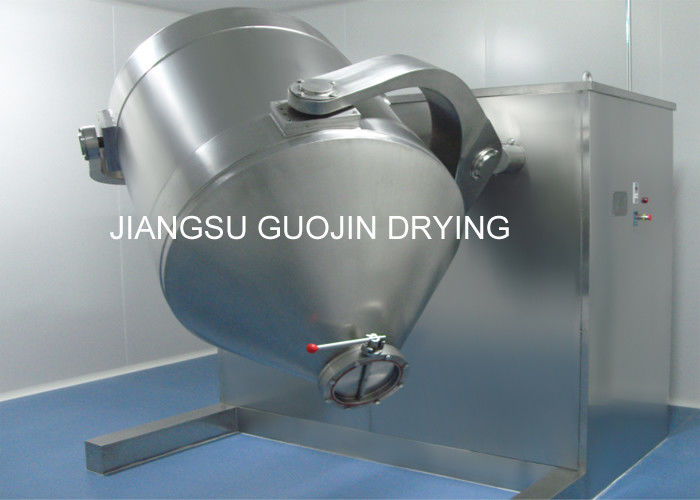

Production Show
