Three Dimensional Movement Swing Lab Mixer 4KW 400L For Chemical Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | THDM-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | Chemical Powder Three Dimensional Movement Swing Lab Mixer | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | THDM-400 | Barrel Volume: | 400L |
| Max Loading Volume: | 340L | Max Loading Weight: | 200kg |
| Spindle Rotation Speed: | 10r/min | Motor Power: | 4kw |
| Weight: | 1200kg | Overall Dimension: | 1500x2200x1500mm |
| Highlight: | Lab Mixer 400L,Lab Mixer 4KW,Three Dimensional Mixer 400L |
||
Product Description

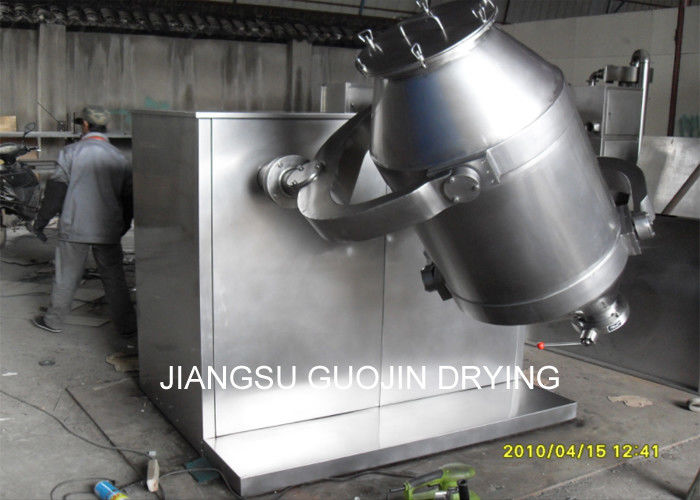

Chemical Powder Three Dimensional Movement Swing Lab Mixer
Three dimension mixer. The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specification gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.
Technical Parameters
| Type | THDM-5 | THDM-100 | THDM-200 | THDM-400 | THDM-600 | THDM-800 | THDM-1000 |
| Material barrel volume(L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 4.25 | 85 | 170 | 340 | 510 | 680 | 850 |
| Max loading weight(kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 |
| Spindle rotation speed(r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 |
| Motor power(kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions(mm) | 600*1000*1000 | 1200*1800*1500 | 1300*1600*1500 | 1500*2200*1500 | 1850*2500*1650 | 1900*2400*2100 | 1950*2500*2400 |
| Weight(kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 |
Product Working Principle
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.

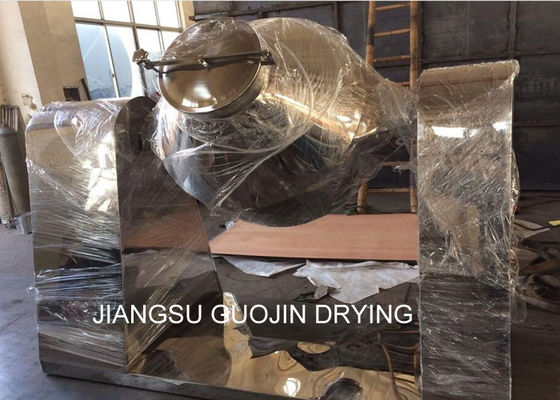

Production Show
