3 Shaft 3D Mixer 100L For Pharmacy Industry Powder
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | THDM-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 3D 3 Shaft Powder Mixer For Coating | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
|---|---|---|---|
| Model Type: | THDM-100 | Barrel Volume: | 100L |
| Max Loading Volume: | 85L | Max Loading Weight: | 80kg |
| Spindle Rotation Speed: | 15r/min | Motor Power: | 2.2kw |
| Weight: | 500kg | Overall Dimension: | 1200x1800x1500mm |
| Highlight: | 3D Mixer 100L,Pharmacy Industry 3D Mixer,Three Dimensional Mixer 100L |
||
Product Description
3D 3 Shaft Powder Mixer For Coating
This machine is suitable for mixing dry-powder material of pharmaceutical, chemical and food industries. It is used in mixing evenly and quickly between different proportion and fineness of materials. The working principles when the machine is in operation. Because of the running actions of the mixing tank in multi direction, the now and derision of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoided that the congregation and segregation of the material in gravity ratio caning due to the centrifugal force in the normal mixer and extremely good effect can be obtained. Series Multi directional Movement Mixer consists of the base, driving system. Electric control system, multi-directional, movement mechanism and mixing tank. The mixing tank to be in contact with the materials is made of quality stainless steel, with both inside and outside of the tank mirror polished. Because the nixing tank performs a multi directional movement, there are many points of mixing with a good effect of mixing. The uniformity of the mixing iceberg than that of the normal mixer. The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean.
The materials are mixed in an enclosed state. With no contamination to the working environment and materials.
Technical Parameters
| Type | THDM-5 | THDM-100 | THDM-200 | THDM-400 | THDM-600 | THDM-800 | THDM-1000 |
| Material barrel volume(L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume(L) | 4.25 | 85 | 170 | 340 | 510 | 680 | 850 |
| Max loading weight(kg) | 5 | 80 | 150 | 200 | 300 | 400 | 500 |
| Spindle rotation speed(r/min) | 24 | 15 | 12 | 10 | 10 | 10 | 10 |
| Motor power(kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions(mm) | 600*1000*1000 | 1200*1800*1500 | 1300*1600*1500 | 1500*2200*1500 | 1850*2500*1650 | 1900*2400*2100 | 1950*2500*2400 |
| Weight(kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 |
Product Working Principle
During the period of operation, because the mixing drum has multi-directional actions of motion, it speeds up the fluid and diffused effect of raw material. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dear corner. It can guarantee the best quality of mixed raw material.
Structure: this machine consists of stand, transmission system, electric control system, multi-directional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.

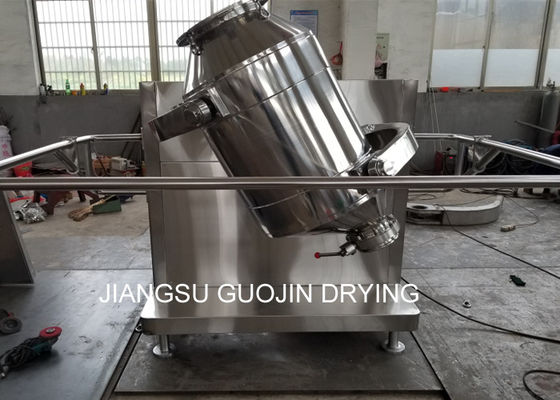

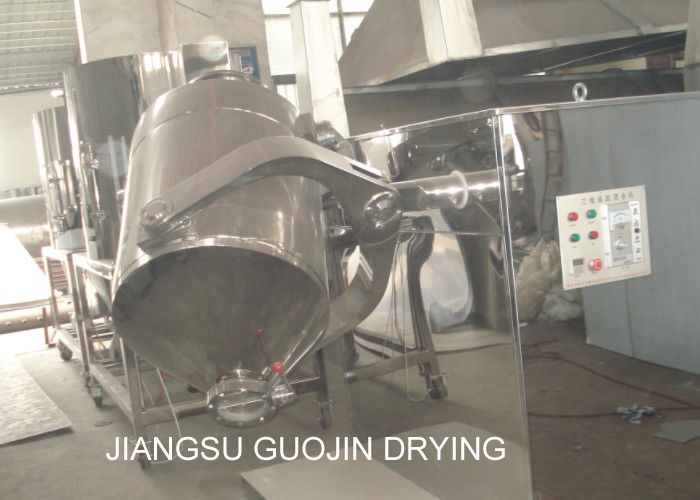

Production Show
