1000L Two Dimensional Motion Powder Tumbler Mixer
Product Details:
| Place of Origin: | China |
| Brand Name: | Guojin |
| Certification: | ISO |
| Model Number: | TDM-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export Carton |
| Delivery Time: | 20-30days |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Item Name: | 2d Mixing Drum Two Dimensional Motion Powder Tumbler Mixer | Application: | Medicine Processing, Chemicals Processing, Food Processing |
|---|---|---|---|
| Model Type: | TDM-1000 | Barrel Volume: | 1000L |
| Loading Capacity: | 500L | Max Loading Weight: | 250kg/batch |
| No.of Swing&rotation: | 19.8r/min | Total Motor Power: | 3kw |
| Total Weight: | 1700kg | Barrel Weigth: | 240kg |
| Overall Dimension: | 1300x2980x1894x1766mm | ||
| Highlight: | Two Dimensional Motion Powder Tumbler Mixer,1000L Powder Tumbler Mixer,1000l tumbler mixing machine |
||
Product Description
2d Mixing Drum Two Dimensional Motion Powder Tumbler Mixer
This machine is widely used in medicine, chemical, food, fuel, feed, fertilizer, pesticide and other industries. Especially suitable for the mixing of various solid materials in large tonnage (1000L - 20000L).
The mixing bowl of the machine participates and swings while rotating, so that the materials in the cylinder are thoroughly mixed. The discharge port of the mixing cylinder deviates from the center line of the cylindrical portion of the mixing cylinder, so that the machine has the characteristics of rapid mixing, large mixing amount and convenient discharging.
The drum of machine can simultaneously move in two directions, one for the rotation of the drum, another for drum with the swinging rack.
Materials rotating, over turning and mixing in the drum with the rotation of the drum meanwhile do back and forth mixing movement with the drum swinging. With these two sports function, the materials can be fully mixed in a short time.
This machine is widely used in blending of powder and granular materials.
Technical Parameters
| Type | Barrel volume(L) | Loading capacity(L) | Max loading weight(kg/batch) | No.of swing&rotation(r/min) | Total motor power(kw) | Overall dimension(mm) | Total weight(kg) | Barrel weight(kg) |
| TDM-60 | 60 | 30 | 15 | 50 | 0.4 | 700x730x1100x990 | 115 | 15 |
| TDM-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800x1050x1450x1340 | 190 | 50 |
| TDM-300 | 300 | 150 | 75 | 30 | 1.15 | 900x1350x1550x1400 | 340 | 60 |
| TDM-600 | 600 | 300 | 150 | 23.6 | 3 | 1170x1640x2050x1910 | 1150 | 140 |
| TDM-800 | 800 | 400 | 200 | 19.8 | 3 | 1320x1950x2150x2000 | 1600 | 200 |
| TDM-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1300x2980x1894x1766 | 1700 | 240 |
| TDM-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1500x3195x2250x2008 | 2000 | 320 |
| TDM-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1660x3305x2255x2120 | 2600 | 430 |
| TDM-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1860x3860x2570x2420 | 3500 | 620 |
| TDM-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 2010x4100x2755x2550 | 4100 | 700 |
| TDM-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2280x4965x3172x2935 | 6100 | 1100 |
| TDM-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2500x5200x3655x3200 | 7900 | 1450 |
| TDM-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2600x5500x3750x3400 | 9500 | 1650 |
Product Feature
1. The drum plays two movements at the same time, one is the axial rotation of the drum, and the other is the swing of the drum with the shaker.
2. While the material to be mixed rotates, flips, and mixes with the drum in the drum, it also undergoes mixing movement back and forth with the swing of the drum.
3. Under the combined action of these two movements, the material is fully mixed in a short time.
4. EYH two-dimensional motion mixer is suitable for mixing all powder and granules.

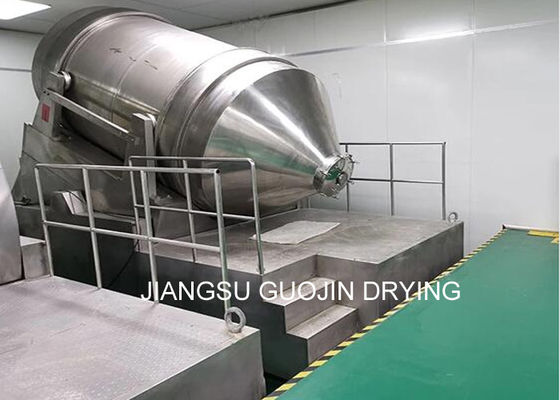

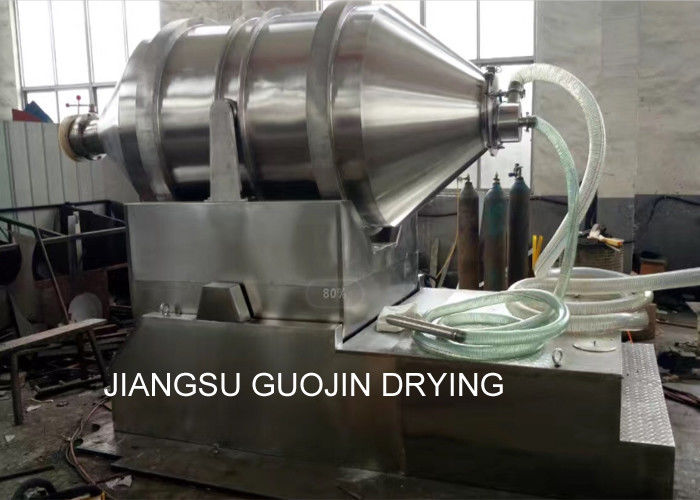

Product Show
